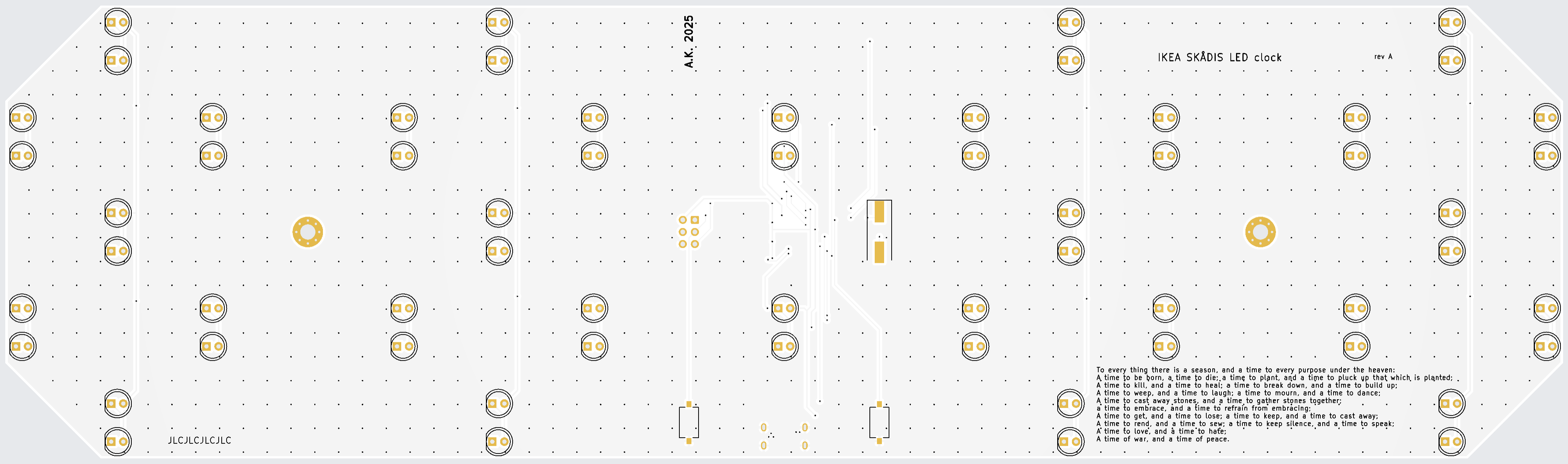

Skadis clock PCB layout, top view — open source AVR/Arduino board by agkaminski

About the Skadis clock PCB

Skadis clock is an open source AVR/Arduino PCB design by agkaminski, published on GitHub. It is a 2-layer board measuring 327 × 95 mm, with 110 components from 15 distinct parts.

Its main chip is the ATtiny2313-20S, from the AVR/Arduino family. By type, the board carries 60 diodes, 36 resistors, 4 transistors, 4 capacitors, 2 connectors and 2 switches.

From the project

Various hardware projects that do not deserve their own repository.

LED digital clock that fits behind the IKEA SKÅDIS pegboard. Uses deformed 7-segment display that shines through pegboard slots.

Skadis clock, from the project README
From the project README

Main components on the Skadis clock

ATtiny2313-20S

Skadis clock bill of materials (BOM)

110 components, 15 distinct parts.

QtyPartRefs
1
ATtiny2313-20S
U1
4
BC807
Q1, Q2, Q3, Q4
1
Crystal
Y1
1
AVR-ISP-6
J1
1
USB_C_Receptacle_PowerOnly_6P
J2
2
SW_Push
SW1, SW2
60
LED
D1, D2, D3, D4, D5, D6, D7, D8 +52
2
22p
C1, C2
1
100n
C3
1
2u2
C4
2
220R
R1, R36
4
4K7
R2, R3, R4, R6
2
5K1
R5, R7
24
47R
R8, R9, R11, R12, R13, R14, R15, R16 +16
4
100R
R10, R17, R24, R31

Skadis clock design files

The KiCad project lives in the agkaminski/hw_projects repository on GitHub; these links point at the commit this page was built from.

Skadis clock: common questions

What microcontroller does the Skadis clock use?

The Skadis clock is built around the ATtiny2313-20S, from the AVR/Arduino family.

How big is the Skadis clock PCB?

The Skadis clock measures 327 × 95 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Skadis clock?

110 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Skadis clock design files?

From the agkaminski/hw_projects repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Skadis clock design in my own project?

The repository has no license, so all rights stay with agkaminski. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Skadis clock without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
