TougherPowerMonitor-HW

ahillbom·TougherPowerMonitor-HW

TougherPowerMonitor-HW PCB layout, top view — open source AVR/Arduino board by ahillbom
Simulate this board

About the TougherPowerMonitor-HW PCB

TougherPowerMonitor-HW is an open source AVR/Arduino PCB design by ahillbom, published on GitHub under the MIT license. It is a 2-layer board measuring 130 × 53 mm, with 75 components from 25 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the AP63205, TPS1HB08A-Q1, FeatherWing and INA3221. By type, the board carries 26 resistors, 23 capacitors, 11 connectors, 8 diodes, 4 ICs and 1 module.

It belongs with the sensors and test & measurement designs in this gallery.

From the project

Triple-channel power monitor based on INA3221 and TPS1HB08A with some filtering for tougher conditions. Compatible with Arduino Nano and Feathers.

Power monitor with three channels, each capable of continuous 10A and 24V. It is compatible with both Arduino and Feather, and is based on a popular INA3221. The power monitor is more robust compared to other modules based on this IC. Each channel has proper RC filtering with TVS diodes to prevent INA3221 from being destroyed by transients, and to eliminate glitches. Pluggable screw terminals are rated for 15A, and can handle 12 to 30 AWG wires.

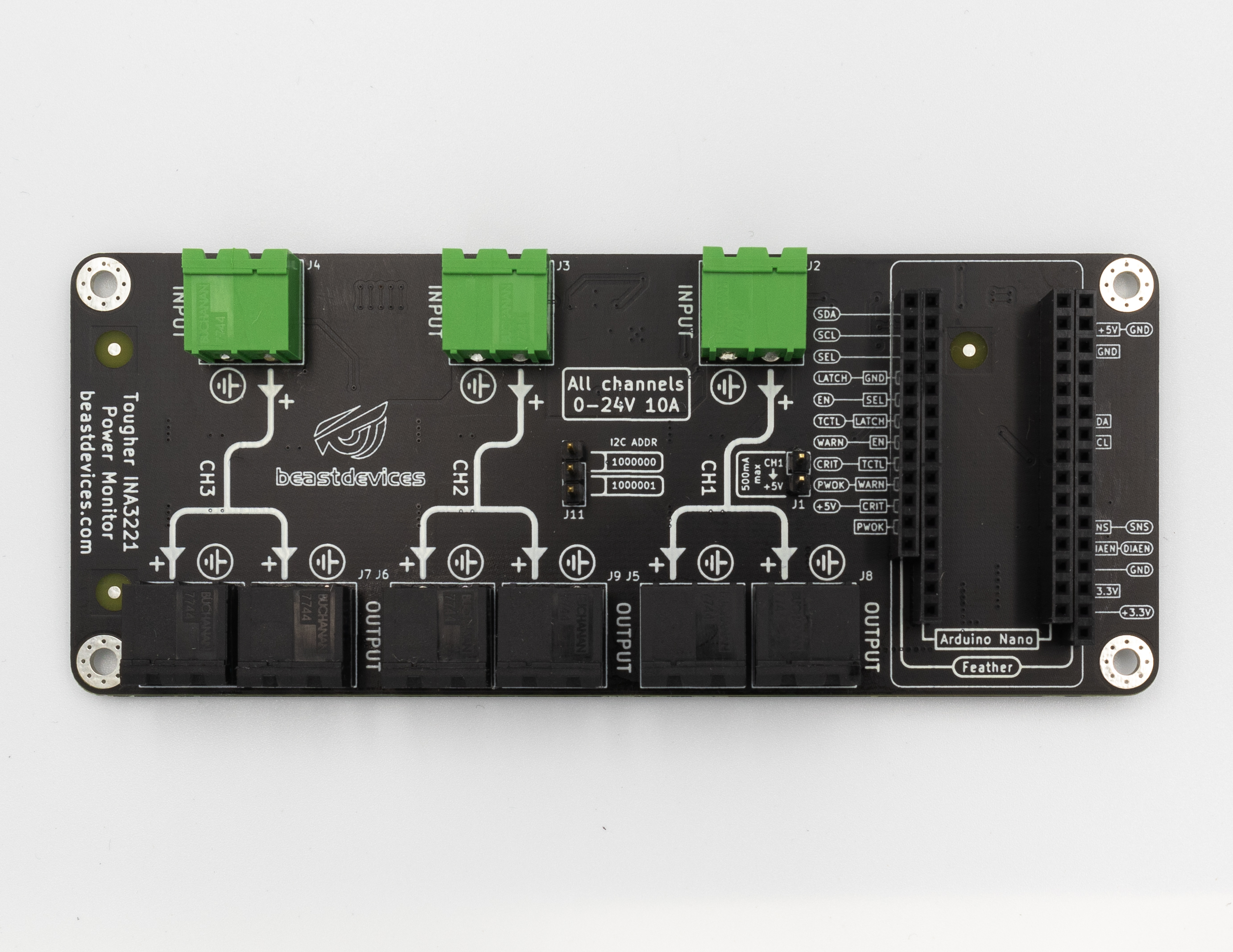

TougherPowerMonitor-HW, from the project README
From the project README

Main components on the TougherPowerMonitor-HW

AP63205TPS1HB08A-Q1FeatherWingINA3221Arduino_Nano_v3.x

TougherPowerMonitor-HW bill of materials (BOM)

75 components, 25 distinct parts.

QtyPartRefs
1
AP63205
U1
1
TPS1HB08A-Q1
U2
1
FeatherWing
U3
1
INA3221
U4
1
Arduino_Nano_v3.x
A1
1
Jumper
J1
9
796639-2
J2, J3, J4, J5, J6, J7, J8, J9 +1
1
Jumper
J11
1
0ZCG0075BF2B
F1
7
SMBJ16D
D1, D2, D3, D4, D5, D6, D7
1
D_Schottky
D8
1
4.7u
L1
2
4.7uF
C1, C18
2
22u
C2, C21
2
10u
C3, C22
2
100n
C4, C19
3
22u
C5, C6, C23
2
220n
C7, C20
10
100n
C8, C9, C10, C11, C12, C13, C14, C15 +2
3
220
R1, R2, R3
Show 5 more
QtyPartRefs
1
12k
R4
11
10k
R5, R6, R7, R8, R11, R12, R13, R14 +3
2
2.2k
R9, R10
6
10
R16, R18, R19, R21, R22, R24
3
10m
R17, R20, R23

TougherPowerMonitor-HW design files

The KiCad project lives in the ahillbom/TougherPowerMonitor-HW repository on GitHub; these links point at the commit this page was built from.

TougherPowerMonitor-HW: common questions

What microcontroller does the TougherPowerMonitor-HW use?

The TougherPowerMonitor-HW is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the TougherPowerMonitor-HW PCB?

The TougherPowerMonitor-HW measures 130 × 53 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TougherPowerMonitor-HW?

75 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the TougherPowerMonitor-HW design files?

From the ahillbom/TougherPowerMonitor-HW repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the TougherPowerMonitor-HW design in my own project?

Yes, under the terms of its MIT license, which ahillbom chose for the repository.

Can I test firmware for the TougherPowerMonitor-HW without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
