STM32F4 -Shield

AhmadHaniF1145·STM32F4_-Shield·Kicad/STM32F4_ Shield.kicad_pcb

STM32F4 -Shield layout, top view — open source STM32 board by AhmadHaniF1145

About the STM32F4 -Shield

STM32F4 -Shield is an open source STM32 PCB design by AhmadHaniF1145, published on GitHub. It is a 2-layer board measuring 100.5 × 58 mm, with 48 components from 17 distinct parts.

Its main chip is the STM32F411_Black Pill, from the STM32 family. Other key parts include the OLED_128X64. By type, the board carries 16 resistors, 10 diodes, 6 connectors, 6 capacitors, 4 switches and 2 ICs.

It belongs with the displays & leds, sensors and dev boards & breakouts designs in this gallery.

From the project

A versatile STM32F4 hardware expansion shield featuring I2C OLED integration, sensor terminals, tactile inputs, trimmer potentiometer, I2C & UART protocol for multipurpose embedded applications.

A custom-designed hardware shield and embedded firmware for a Multi Stopwatch and Lap Timing system based on the STM32F411 microcontroller. This system features real-time OLED display integration, physical button debouncing, intelligent timeout error handling for external sensors, and automated lap tracking.

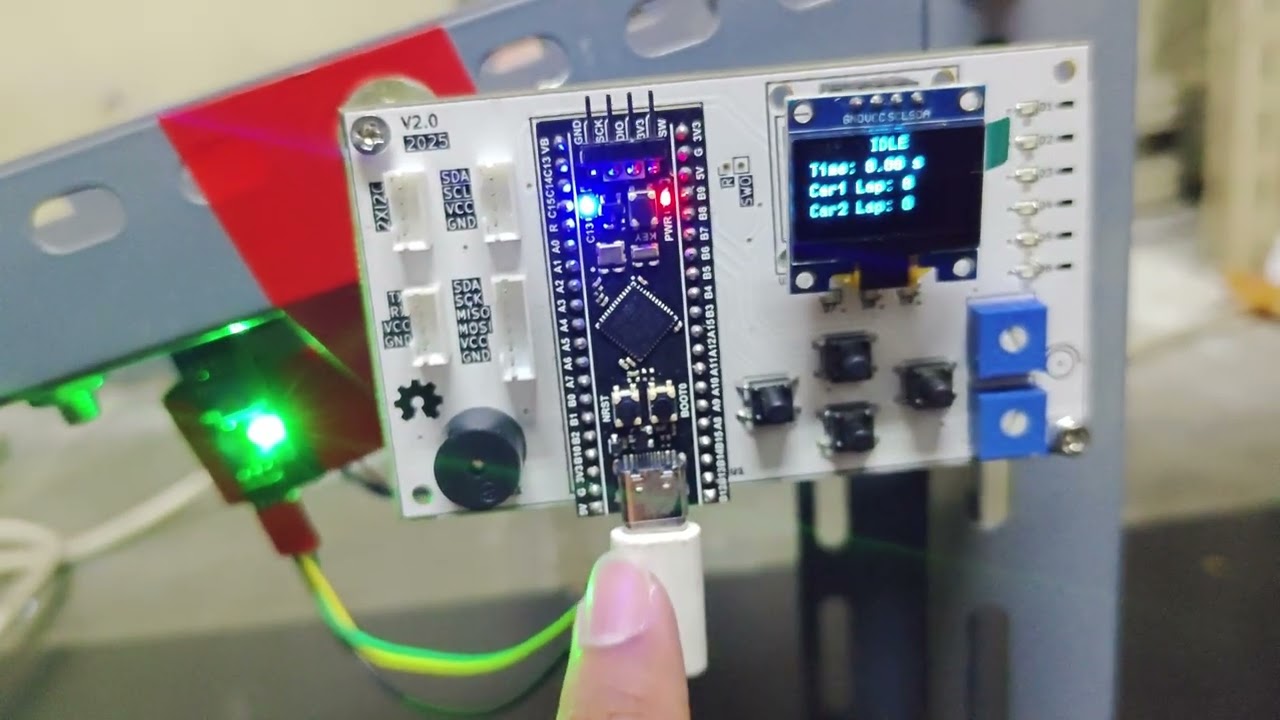

STM32F4 -Shield, from the project README
From the project README

Main components on the STM32F4 -Shield

STM32F411_Black PillOLED_128X64

STM32F4 -Shield bill of materials (BOM)

48 components, 17 distinct parts.

QtyPartRefs
1
STM32F411_Black Pill
U1
1
OLED_128X64
U2
1
SS8050
Q1
3
Conn_01x04_Socket
J1, J2, J4
1
Conn_01x06_Socket
J3
1
Conn_01x02_Socket
J5
1
BME280
J6
1
Buzzer
BZ1
2
R_Potentiometer
RV1, RV2
4
SW_Push
SW1, SW2, SW3, SW4
9
LED
D1, D2, D3, D4, D5, D6, D7, D8 +1
1
D
D10
6
100nF
C1, C2, C3, C4, C5, C6
4
10K
R1, R2, R3, R4
9
100R
R5, R6, R7, R8, R9, R10, R11, R12 +1
2
4K7
R14, R15
1
1K
R16

STM32F4 -Shield design files

The KiCad project lives in the AhmadHaniF1145/STM32F4_-Shield repository on GitHub; these links point at the commit this page was built from.

STM32F4 -Shield: common questions

What microcontroller does the STM32F4 -Shield use?

The STM32F4 -Shield is built around the STM32F411_Black Pill, from the STM32 family.

How big is the STM32F4 -Shield?

The STM32F4 -Shield measures 100.5 × 58 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STM32F4 -Shield?

48 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the STM32F4 -Shield design files?

From the AhmadHaniF1145/STM32F4_-Shield repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the STM32F4 -Shield design in my own project?

The repository has no license, so all rights stay with AhmadHaniF1145. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the STM32F4 -Shield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
