BLDC Motor Driver
About the BLDC Motor Driver PCB
BLDC Motor Driver is an open source STM32 PCB design by AhmedAbo-Eita, published on GitHub. It is a 8-layer board measuring 123.5 × 58 mm, with 223 components from 58 distinct parts.
Its main chip is the STM32G431RBT6, from the STM32 family. Other key parts include the LM76005RNPR, TCAN334DR, TLV9061IDBVR, LDL1117S33R and DRV8353HRTAR. By type, the board carries 89 capacitors, 81 resistors, 16 ICs, 9 connectors, 7 transistors and 4 diodes.
It belongs with the robotics & motion and sensors designs in this gallery.
From the project

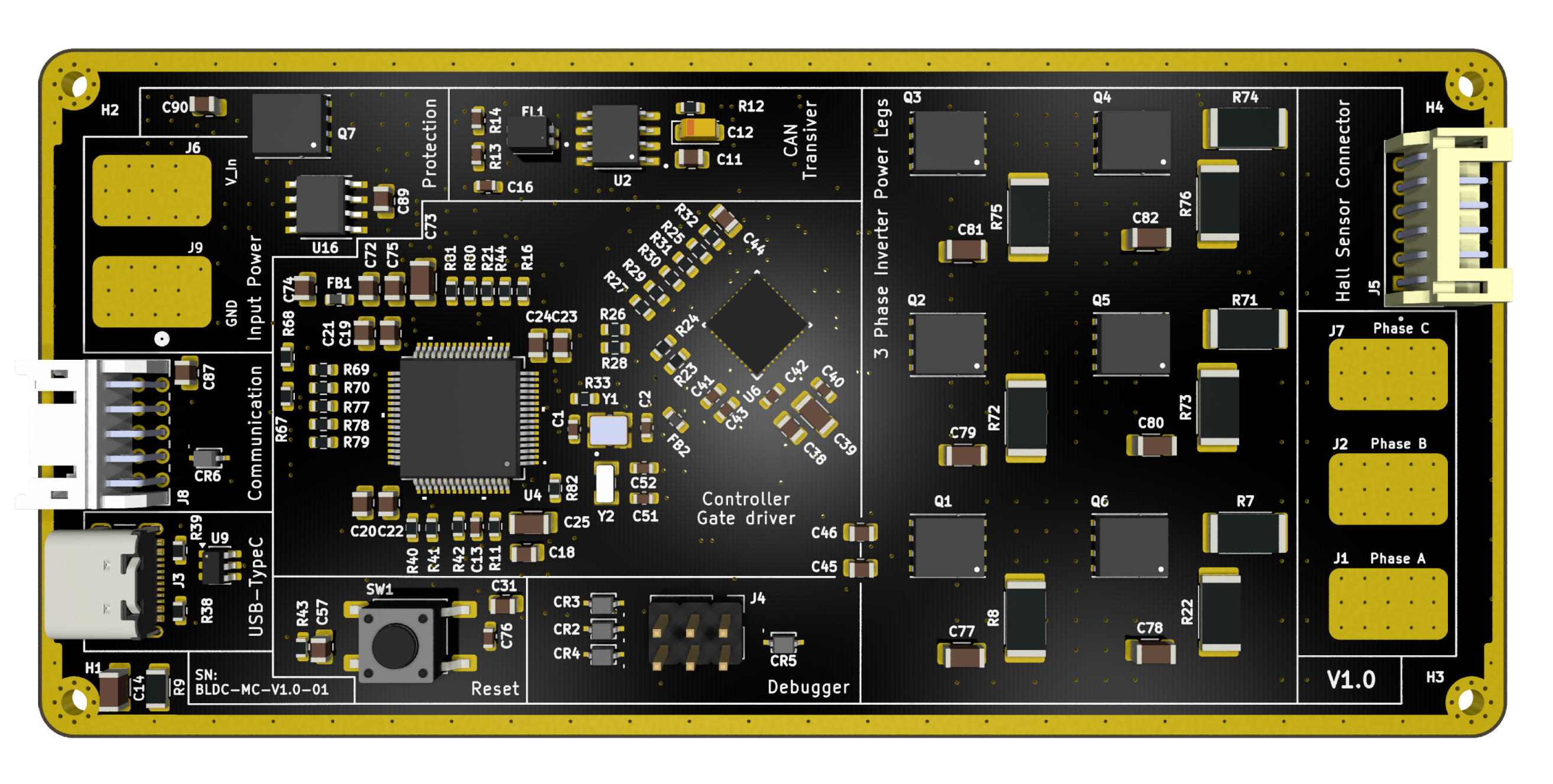

BLDC Motor Driver hardware and firmware project including power stage, gate driver, protection circuits, and control firmware for sensor-based and/or sensorless BLDC motors.
A compact, high-efficiency, 3-phase Field-Oriented Control (FOC) motor controller designed for high-power robotics, e-mobility, and industrial automation. Built on the STM32G431RBT6 ARM Cortex-M4 MCU and the TI DRV8353HRTAR smart gate driver, this board supports high-frequency switching up to 100 kHz with extensive hardware protection, sensor feedback, and connectivity.
Main components on the BLDC Motor Driver
BLDC Motor Driver bill of materials (BOM)
223 components, 58 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM76005RNPR | QFN50P600X400X80-31N | U1 |
| 1 | TCAN334DR | SOIC127P599X175-8N | U2 |
| 7 | TLV9061IDBVR | SOT95P280X145-5N | U3, U10, U11, U12, U13, U14, U15 |
| 1 | STM32G431RBT6 | LQFP64-10x10mm | U4 |
| 1 | LDL1117S33R | SOT230P700X180-4N | U5 |
| 1 | DRV8353HRTAR | RTA0040B | U6 |
| 1 | NCV4274ADT50RKG | DPAK-3_ONS | U7 |
| 1 | 25LC256-E/SN 25LC256-E_SN | SOIC127P599X175-8N | U8 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U9 |
| 1 | LM74700QDRQ1 | SOIC8_D_TEX | U16 |
| 7 | BSC027N10NS5ATMA1 | PG-TSON-8-3_INF | Q1, Q2, Q3, Q4, Q5, Q6, Q7 |
| 1 | 7M-24.000MAAJ-T | XTAL_7M-24.000MAAJ-T | Y1 |
| 1 | ABS07-32.768KHZ-T | XTAL_ABS07-32.768KHZ-T | Y2 |
| 5 | Conn_01x01_Pin | PWR_CON_L | J1, J2, J6, J7, J9 |
| 1 | USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J3 |
| 1 | Conn_02x03_Counter_Clockwise | PinHeader_2x03_P2.54mm_Vertical | J4 |
| 1 | S6B-PH-K-S_LF__SN_ | JST_S6B-PH-K-S_LF__SN_ | J5 |
| 1 | S10B-PHDSS LFSN | CONN_S10B-PHDSS_JST | J8 |
| 1 | PESD2CANFD24V-QCZ | DFN1412D-3_SOT8009_NEX | CR1 |
| 8 | PESD3V3L1BA_115 | DIODE_PESD3V3L1BA_115_NEX | CR2, CR3, CR4, CR5, CR6, CR7, CR8, CR9 |
Show 38 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SMDJ110CA | SMDJSeries_LTF | CR10 |
| 1 | ACT1210-510-2P-TL00 | FIL_ACT1210-510-2P-TL00 | FL1 |
| 1 | SW_Push | SW_Push_1P1T_NO_E-Switch_TL3301NxxxxxG | SW1 |
| 4 | LED | LED_0603_1608Metric | D1, D2, D3, D4 |
| 2 | FerriteBead | L_0603_1608Metric | FB1, FB2 |
| 1 | 10uH | L_KOHERelec_MDA7030 | L1 |
| 2 | 30pF | C_0603_1608Metric | C1, C2 |
| 42 | 100nF | C_0805_2012Metric | C3, C4, C7, C8, C11, C17, C18, C19 +34 |
| 5 | 47uF | C_1206_3216Metric | C5, C6, C26, C27, C39 |
| 8 | 47uF | CP_Elec_10x10.5 | C9, C10, C29, C30, C47, C48, C49, C50 |
| 1 | 10uF | CP_EIA-3216-18_Kemet-A | C12 |
| 3 | 10pF | C_0603_1608Metric | C13, C16, C28 |
| 1 | 10nF | C_1206_3216Metric | C14 |
| 6 | 4.7uF | C_1206_3216Metric | C25, C37, C55, C56, C67, C73 |
| 1 | 470nF | C_0805_2012Metric | C32 |
| 1 | 10nF | C_0603_1608Metric | C33 |
| 1 | 2.2uF | C_0603_1608Metric | C34 |
| 2 | 1uF | C_0805_2012Metric | C36, C53 |
| 4 | 1uF | C_0603_1608Metric | C40, C41, C43, C76 |
| 1 | 47nF | C_0603_1608Metric | C42 |
| 2 | 20pF | C_0603_1608Metric | C51, C52 |
| 3 | C | C_0603_1608Metric | C58, C59, C60 |
| 6 | 1nF | C_1206_3216Metric | C77, C78, C79, C80, C81, C82 |
| 2 | 100K | R_0603_1608Metric | R1, R2 |
| 10 | 0R | R_0603_1608Metric | R3, R6, R23, R24, R25, R26, R28, R29 +2 |
| 1 | 9.09K | R_0603_1608Metric | R4 |
| 15 | 10k | R_0603_1608Metric | R5, R15, R17, R18, R19, R32, R34, R37 +7 |
| 3 | 1mR | R_2512_6332Metric | R7, R71, R74 |
| 6 | 4R7 | R_2512_6332Metric_Pad1.40x3.35mm_HandSolder | R8, R22, R72, R73, R75, R76 |
| 1 | 1MR | R_1206_3216Metric | R9 |
| 23 | 33R | R_0603_1608Metric | R11, R12, R16, R20, R21, R40, R41, R42 +15 |
| 2 | 60R | C_0603_1608Metric | R13, R14 |
| 5 | 18K | R_0603_1608Metric | R27, R30, R45, R47, R50 |
| 2 | 3k3 | R_0603_1608Metric | R35, R36 |
| 2 | 5k1 | R_0603_1608Metric | R38, R39 |
| 3 | 30K | R_0603_1608Metric | R46, R48, R51 |
| 3 | 100K | R_1206_3216Metric | R55, R58, R61 |
| 3 | 2k7 | R_0603_1608Metric | R56, R59, R62 |
BLDC Motor Driver design files
The KiCad project lives in the AhmedAbo-Eita/BLDC_Motor_Driver repository on GitHub; these links point at the commit this page was built from.
BLDC Motor Driver: common questions
What microcontroller does the BLDC Motor Driver use?
The BLDC Motor Driver is built around the STM32G431RBT6, from the STM32 family.
How big is the BLDC Motor Driver PCB?
The BLDC Motor Driver measures 123.5 × 58 mm, has 8 copper layers and is 1.584 mm thick.
How many components are on the BLDC Motor Driver?
223 components, from 58 distinct parts. The full bill of materials is listed on this page.
Where can I download the BLDC Motor Driver design files?
From the AhmedAbo-Eita/BLDC_Motor_Driver repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the BLDC Motor Driver design in my own project?
The repository has no license, so all rights stay with AhmedAbo-Eita. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the BLDC Motor Driver without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
