About the Adbuino PCB
Adbuino is an open source AVR/Arduino PCB design by akuker, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 30.5 × 63 mm, with 43 components from 24 distinct parts.
Its main chip is the ATmega328P-AU, from the AVR/Arduino family. Other key parts include the MAX3421EEHJ+, 74HC4050D,653 and AMS1117-3.3. By type, the board carries 16 capacitors, 11 resistors, 5 connectors, 4 ICs, 2 transistors and 2 crystals.
It belongs with the keyboards and retro computing designs in this gallery.
From the project

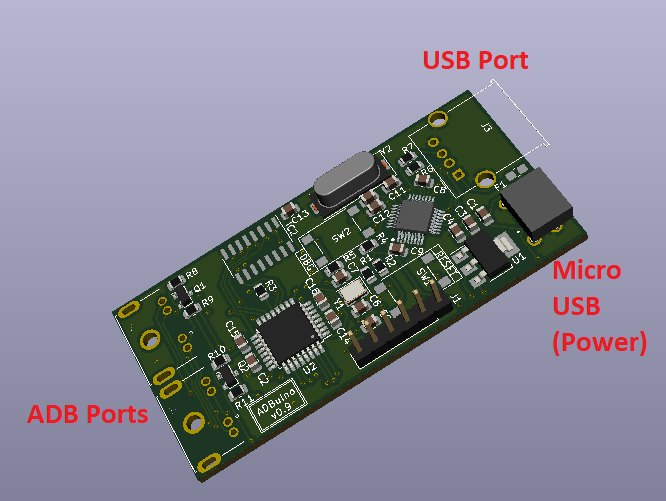

Arduino-based USB keyboard and Mouse to ADB adapter. Allows USB keyboards and mice to be used with vintage Macintosh computers.
"Adbuino" has a long history of different people tinkering with it. Just to provide some clarity...
- ORIGINAL PS/2 version - In the beginning - bbraun created the adbuino project and generously open sourced it. The links aren't working anymore, but the original SVN repo was bbraun's - Difegue PS/2 version - 2020 - Difegue's version of the adbuino, modified bbraun's version, with some extra code added to alleviate issues with his own PS/2 keyboard. - akuker USB version - 2022 - akuker converted Difegue's version to use a USB controller and created a PCB design using KiCad. - QuokkADB - 2023…

Main components on the Adbuino
Adbuino bill of materials (BOM)
43 components, 24 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MAX3421EEHJ+ | QFP50P700X700X120-32N | IC1 |
| 1 | 74HC4050D,653 | SOP-16_3.9x9.9mm_P1.27mm | IC2 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U1 |
| 1 | ATmega328P-AU | TQFP-32_7x7mm_P0.8mm | U2 |
| 2 | BSS138 | SOT-23 | Q1, Q2 |
| 1 | 16MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | 12MHz | Crystal_SMD_HC49-SD | Y2 |
| 1 | Conn_01x06_Male | PinHeader_1x06_P2.54mm_Vertical | J1 |
| 1 | U254-051N-4BH806 | U254051N4BH806 | J2 |
| 1 | USB_A | USB_A_Molex_67643_Horizontal | J3 |
| 2 | MINI-DIN-4 Mini-DIN-4 | CUI_MD2-40ST | J4, J5 |
| 1 | C66452 Polyfuse | Fuse_0805_2012Metric_Castellated | F1 |
| 2 | SW_Push | SW_Push_1P1T_NO_6x6mm_H9.5mm | SW1, SW2 |
| 2 | 10u | C_0805_2012Metric | C1, C4 |
| 10 | 100n | C_0805_2012Metric | C2, C3, C5, C8, C9, C12, C13, C14 +2 |
| 2 | 4p | C_0805_2012Metric | C6, C7 |
| 2 | 30p | C_0805_2012Metric | C10, C11 |
| 1 | 10K 1M | R_0805_2012Metric | R1 |
| 1 | 10K 10k | R_0805_2012Metric | R2 |
| 1 | 10K 2.2k | R_0805_2012Metric | R3 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 10K 1k | R_0805_2012Metric | R4, R5 |
| 1 | 10K 33 | R_0805_2012Metric | R6 |
| 1 | 33 | R_0805_2012Metric | R7 |
| 4 | 10k | R_0805_2012Metric | R8, R9, R10, R11 |
Adbuino design files
The KiCad project lives in the akuker/adbuino repository on GitHub; these links point at the commit this page was built from.
Adbuino: common questions
What microcontroller does the Adbuino use?
The Adbuino is built around the ATmega328P-AU, from the AVR/Arduino family.
How big is the Adbuino PCB?
The Adbuino measures 30.5 × 63 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Adbuino?
43 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Adbuino design files?
From the akuker/adbuino repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Adbuino design in my own project?
Yes, under the terms of its GPL-2.0 license, which akuker chose for the repository.
Can I test firmware for the Adbuino without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
