MAcTX LC PCB layout, top view — open source board by akuker
Simulate this board

About the MAcTX LC PCB

MAcTX LC is an open source PCB design by akuker, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 54.8 × 25.1 mm, with 11 components from 8 distinct parts.

Other key parts include the MAX660. By type, the board carries 3 resistors, 2 connectors, 2 capacitors, 1 IC, 1 jumper and 1 switch.

It belongs with the power & battery designs in this gallery.

From the project

Adapter to use an ATX power supply with a Macintosh LC series computer

Note: As of 06-Apr-2023, bluesnowkitty has updated the post with the following:

NOTE: THESE COMPONENTS HAVE NOT BEEN VALIDATED!!! ORDER THESE AT YOUR OWN RISK

NOTE: THESE COMPONENTS HAVE NOT BEEN VALIDATED!!! ORDER THESE AT YOUR OWN RISK

* LC Style Power Supply Connector: Molex KK396 (source: TinkerDifferent)

Androda (https://androda.work/) is making a follow-on project called The LC MACAA Power Supply. Watch https://androda.work/shop/ for updates.

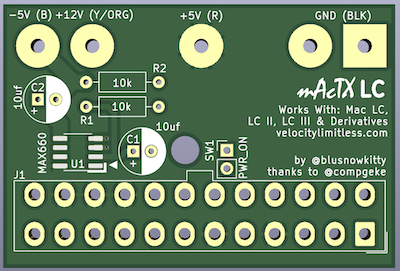

MAcTX LC, from the project README
From the project README

Main components on the MAcTX LC

MAX660

MAcTX LC bill of materials (BOM)

11 components, 8 distinct parts.
