About the Fuzzpedal PCB
Fuzzpedal is an open source PCB design by alberand, published on GitHub. It is a 2-layer board measuring 60 × 112.1 mm, with 56 components from 29 distinct parts.
By type, the board carries 23 resistors, 14 capacitors, 6 diodes, 4 transistors, 3 connectors and 1 fuse.
It belongs with the audio designs in this gallery.
From the project

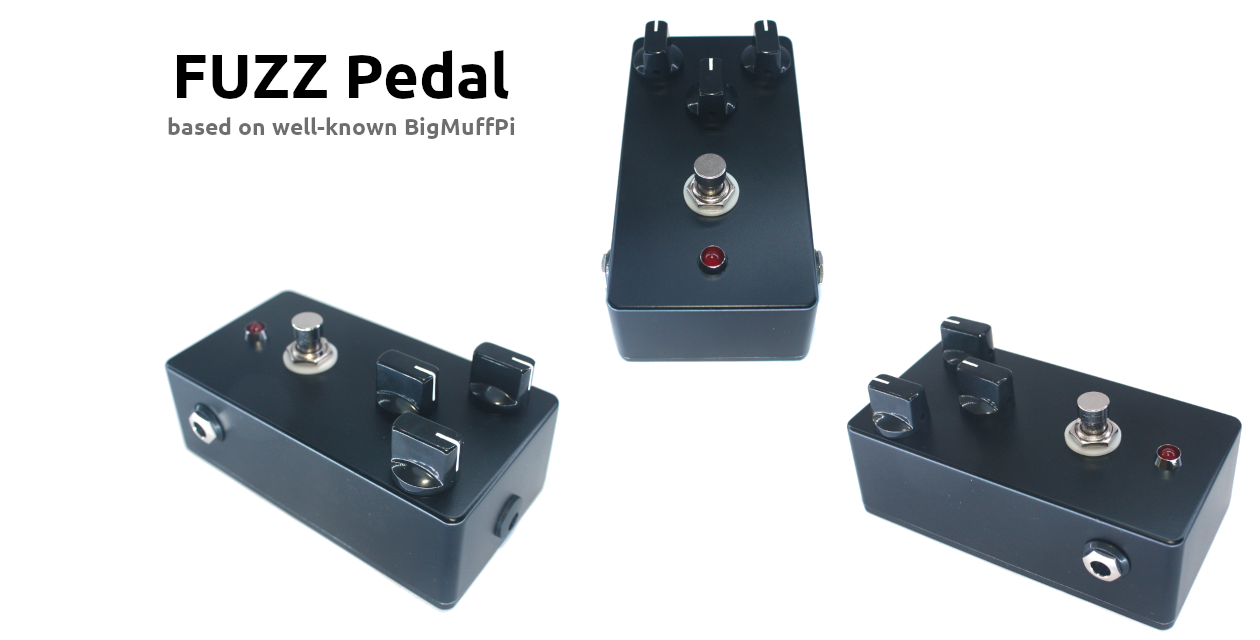

FUZZ Guitar pedal based on well-known BigMuffPi 🎸🎸🎸
This repository contains a lot of information on how to build a Fuzz Pedal based on well-known Big Muff PI pedal.
Add [rubber feets][1] (After discussion seems to be unnecessary and it's better to have Hook-and-loop fastener) Write article on how to paint Aluminum case Add template for drilling holes (A4 paper with holes) Update BOM (better caps, better LED holder) - in progress Try screen print on the case Describe screen printing process * Find what to use as a final coat for case painting

Fuzzpedal bill of materials (BOM)
56 components, 29 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | BC239 | TO-92L_Inline_Wide | Q1, Q2, Q3, Q4 |
| 1 | PWR JACK | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | Wire connector (smol) | PinHeader_1x04_P2.54mm_Vertical | J2 |
| 1 | Wire connector (circuit) | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | 652-MF-R020 PPTC | C_Disc_D8.0mm_W2.5mm_P5.00mm | F1 |
| 1 | 3PDT-FOOT-SWITCH 3PDT-foot-switch | SF17020F-0302-21R-L | S1 |
| 3 | 100K | Potentiometer_Alps_RK09K_Single_Vertical | Sustain1, Tone1, Volume1 |
| 1 | VAL** | mouse-bite-2mm-slot | mouse-bite-2mm-slot |
| 5 | 1N914 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D6 |
| 1 | LED | LED_D5.0mm | D5 |
| 4 | 1UF 1uF | CP_Radial_D5.0mm_P2.00mm | C1, C5, C8, C14 |
| 3 | 470PF 470pF | C_Rect_L7.2mm_W4.5mm_P5.00mm_FKS2_FKP2_MKS2_MKP2 | C2, C6, C9 |
| 1 | 1UF 1uF | C_Rect_L7.2mm_W5.5mm_P5.00mm_FKS2_FKP2_MKS2_MKP2 | C3 |
| 4 | 100NF 100nF | C_Rect_L7.2mm_W2.5mm_P5.00mm_FKS2_FKP2_MKS2_MKP2 | C4, C7, C12, C13 |
| 1 | 3.9NF 3.9nF | C_Rect_L7.2mm_W4.5mm_P5.00mm_FKS2_FKP2_MKS2_MKP2 | C10 |
| 1 | 10NF 10nF | C_Rect_L7.2mm_W5.5mm_P5.00mm_FKS2_FKP2_MKS2_MKP2 | C11 |
| 2 | 39K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R17 |
| 1 | 47K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
| 3 | 470K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3, R9, R14 |
| 5 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4, R7, R10, R12, R15 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R5 |
| 1 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R6 |
| 3 | 100K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R8, R13, R20 |
| 2 | 150 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R11, R16 |
| 1 | 22K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R18 |
| 1 | 430K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R19 |
| 1 | 15K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R21 |
| 1 | 3K3 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R22 |
| 1 | 390 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R23 |
Fuzzpedal design files
The KiCad project lives in the alberand/fuzzpedal repository on GitHub; these links point at the commit this page was built from.
- Layoutfuzzpedal/fuzzpedal.kicad_pcb
- BOMbom.csv
Fuzzpedal: common questions
How big is the Fuzzpedal PCB?
The Fuzzpedal measures 60 × 112.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Fuzzpedal?
56 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Fuzzpedal design files?
From the alberand/fuzzpedal repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Fuzzpedal design in my own project?
The repository has no license, so all rights stay with alberand. Use it as a reference, and ask the author before reusing the design.
