AuroraF4 PCB layout, top view — open source STM32 board by aleko-khomasuridze

About the AuroraF4 PCB

AuroraF4 is an open source STM32 PCB design by aleko-khomasuridze, published on GitHub. It is a 4-layer board measuring 85.1 × 50.2 mm, with 65 components from 37 distinct parts.

Its main chip is the STM32F407VGTx, from the STM32 family. Other key parts include the USBLC6-2SC6 and AMS1117-3.3. By type, the board carries 26 resistors, 17 capacitors, 7 connectors, 6 diodes, 3 ICs and 2 inductors.

It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

AuroraF4 is a high-performance development board based on the STM32F407VGT6 microcontroller, featuring peripherals like I2C, SPI, UART, and GPIO for versatile applications.

AuroraF4 is a powerful development board based on the STM32F407VGT microcontroller, designed to provide developers with a feature-rich and compact solution for embedded system projects. This board is equipped with multiple peripherals, GPIOs, and expansion headers, making it ideal for both beginners and professionals.

- Microcontroller: STM32F407VGT - ARM Cortex-M4 processor - 168 MHz clock speed - 1 MB Flash, 192 KB SRAM - Interfaces: - SPI, I2C, USART - JTAG/SWD debugging support - Peripherals: - User-configurable LEDs (Green, Red, Yellow, Blue) - Reset (RST) and User (USR) buttons - Power…

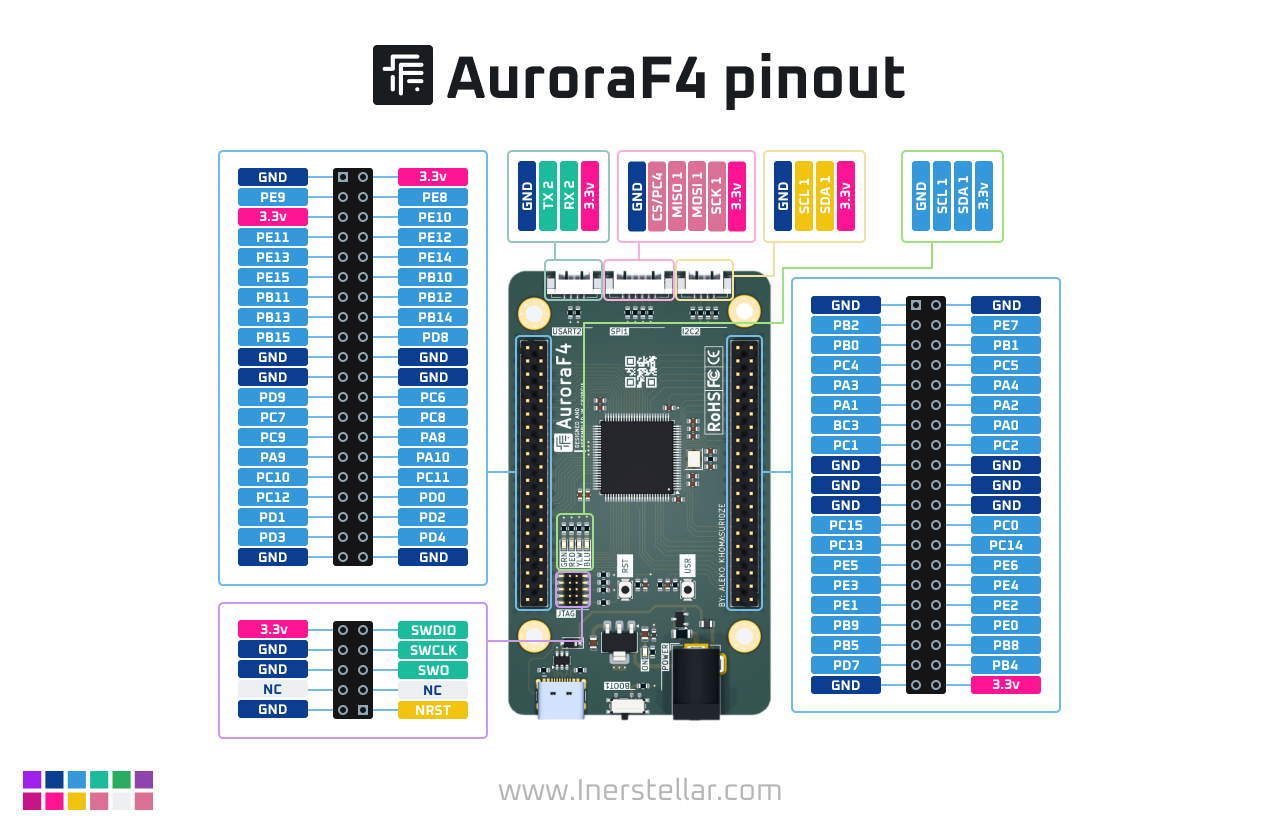

AuroraF4, from the project README
From the project README

Main components on the AuroraF4

STM32F407VGTxUSBLC6-2SC6AMS1117-3.3

AuroraF4 bill of materials (BOM)

65 components, 37 distinct parts.

QtyPartRefs
1
STM32F407VGTx
U1
1
USBLC6-2SC6
U3
1
AMS1117-3.3
U4
1
AO3401A
Q1
1
16MHz
Y1
1
SPI_1
J1
1
SWD
J2
1
I2C_1
J3
1
USART_2
J4
1
USB_C_Receptacle_USB2.0_16P
J5
2
Conn_02x20_Odd_Even
J7, J9
1
SW_SPDT
BOOT1
1
250mA
F1
1
BLUE
D1
1
RED
D2
1
YELLOW
D3
2
GREEN
D4, D5
1
1N4148WT
D6
1
600 @ 600MHz
FB1
1
39n
L1
Show 17 more
QtyPartRefs
1
4u7
C1
2
2u2
C2, C3
8
100n
C4, C5, C6, C7, C8, C9, C17, C18
1
1u
C10
1
10n
C11
2
12p
C12, C13
1
10u
C14
1
22u
C15
1
10k
R1
1
47r
R2
2
4.7k
R4, R5
1
100R
R6
12
22r
R7, R8, R9, R10, R13, R14, R15, R16 +4
2
2.2k
R11, R12
2
5.1k
R17, R18
1
330r
R19
4
1k
R24, R25, R26, R27

AuroraF4 design files

The KiCad project lives in the aleko-khomasuridze/AuroraF4 repository on GitHub; these links point at the commit this page was built from.

AuroraF4: common questions

What microcontroller does the AuroraF4 use?

The AuroraF4 is built around the STM32F407VGTx, from the STM32 family.

How big is the AuroraF4 PCB?

The AuroraF4 measures 85.1 × 50.2 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the AuroraF4?

65 components, from 37 distinct parts. The full bill of materials is listed on this page.

Where can I download the AuroraF4 design files?

From the aleko-khomasuridze/AuroraF4 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the AuroraF4 design in my own project?

The repository has no license, so all rights stay with aleko-khomasuridze. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the AuroraF4 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
