About the Snake pcb business card

Snake pcb business card is an open source STM32 PCB design by alex1324575, published on GitHub. It is a 2-layer board measuring 85.6 × 54 mm, with 126 components from 22 distinct parts.

Its main chip is the STM32G030K8T6, from the STM32 family. Other key parts include the IS31FL3737-QFLS4-TR, TLV75533PDBVR, ST25TN01K-AFH5 and TPD2E2U06DCKR. By type, the board carries 91 diodes, 13 resistors, 11 capacitors, 5 ICs, 5 switches and 1 connector.

It belongs with the displays & leds designs in this gallery.

From the project

STM32-powered PCB business card with a 10x9 LED Snake game, USB-C power, and passive NFC. KiCad hardware, C firmware, and verification reports.

A playable business card built around a 10 × 9 LED matrix, an STM32 microcontroller, and a single game of Snake.

USB-C power. Five buttons. Ninety LEDs. A business card you can actually play.

The front combines a compact game interface with a clean nameplate. The back carries a QR code, a passive NFC antenna, and programming pads. The design uses black solder mask, white silkscreen, and an ENIG finish on a 0.8 mm board.

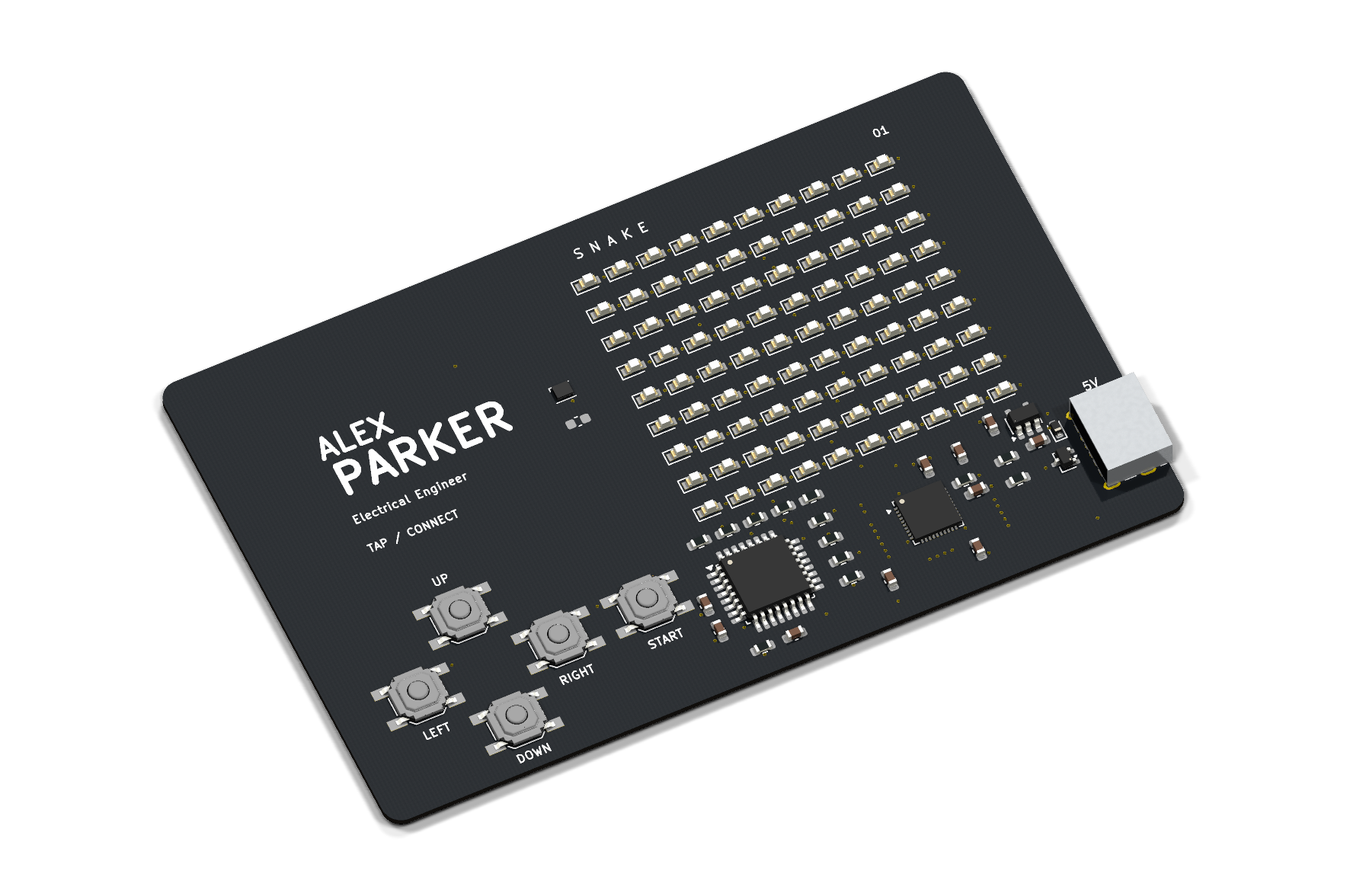

Snake pcb business card, from the project README
From the project README

Main components on the Snake pcb business card

STM32G030K8T6IS31FL3737-QFLS4-TRTLV75533PDBVRST25TN01K-AFH5TPD2E2U06DCKR

Snake pcb business card bill of materials (BOM)

126 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32G030K8T6
STMicroelectronics
U1
1
IS31FL3737-QFLS4-TR
Lumissil Microsystems
U2
1
TLV75533PDBVR
Texas Instruments
U3
1
ST25TN01K-AFH5
STMicroelectronics
U4
1
TPD2E2U06DCKR
TPD2E2U06DCK
Texas Instruments
U5
1
UJC-HP-3-SMT-TR
Same Sky
J1
1
SKQGABE010
UP
Alps Alpine
SW1
1
SKQGABE010
DOWN
Alps Alpine
SW2
1
SKQGABE010
LEFT
Alps Alpine
SW3
1
SKQGABE010
RIGHT
Alps Alpine
SW4
1
SKQGABE010
START
Alps Alpine
SW5
90
APT1608SURCK
RED
Kingbright
D1, D2, D3, D4, D5, D6, D7, D8 +82
1
TPD1E10B06DYAR
TPD1E10B06
Texas Instruments
D91
4
C1608X7R1V105K080AC
1u / 35V X7R
TDK
C1, C2, C23, C24
5
C1608X7R1H104K080AA
100n / 50V X7R
TDK
C10, C12, C20, C21, C22
1
GRM188Z71C475KE21D
4.7u / 16V
Murata Manufacturing
C11
1
DNP / C0G TUNE
C30
2
ERJ3EKF5101V
5.1k 1%
Panasonic Industry
R1, R2
7
ERJ3EKF1002V
10k 1%
Panasonic Industry
R10, R11, R12, R13, R14, R15, R23
2
ERJ3EKF2201V
2.2k 1%
Panasonic Industry
R20, R21
Show 2 more
QtyPartRefs
1
ERJ3EKF1003V
100k 1%
Panasonic Industry
R22
1
ERJ3EKF2002V
20k 1%
Panasonic Industry
R24

Snake pcb business card design files

The KiCad project lives in the alex1324575/snake-pcb-business-card repository on GitHub; these links point at the commit this page was built from.

Snake pcb business card: common questions

What microcontroller does the Snake pcb business card use?

The Snake pcb business card is built around the STM32G030K8T6, from the STM32 family.

How big is the Snake pcb business card?

The Snake pcb business card measures 85.6 × 54 mm, has 2 copper layers and is 0.8 mm thick.

How many components are on the Snake pcb business card?

126 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Snake pcb business card design files?

From the alex1324575/snake-pcb-business-card repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Snake pcb business card design in my own project?

The repository has no license, so all rights stay with alex1324575. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Snake pcb business card without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
