LNA
About the LNA PCB
LNA is an open source PCB design by alicjamusial, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 35 × 20 mm, with 18 components from 15 distinct parts.
Other key parts include the PGA-103+. By type, the board carries 7 capacitors, 6 inductors, 3 connectors, 1 IC and 1 resistor.
It belongs with the rf & radio and audio designs in this gallery.
From the project
LNA with filter for 400-440 MHz (UHF for amateur satellites)

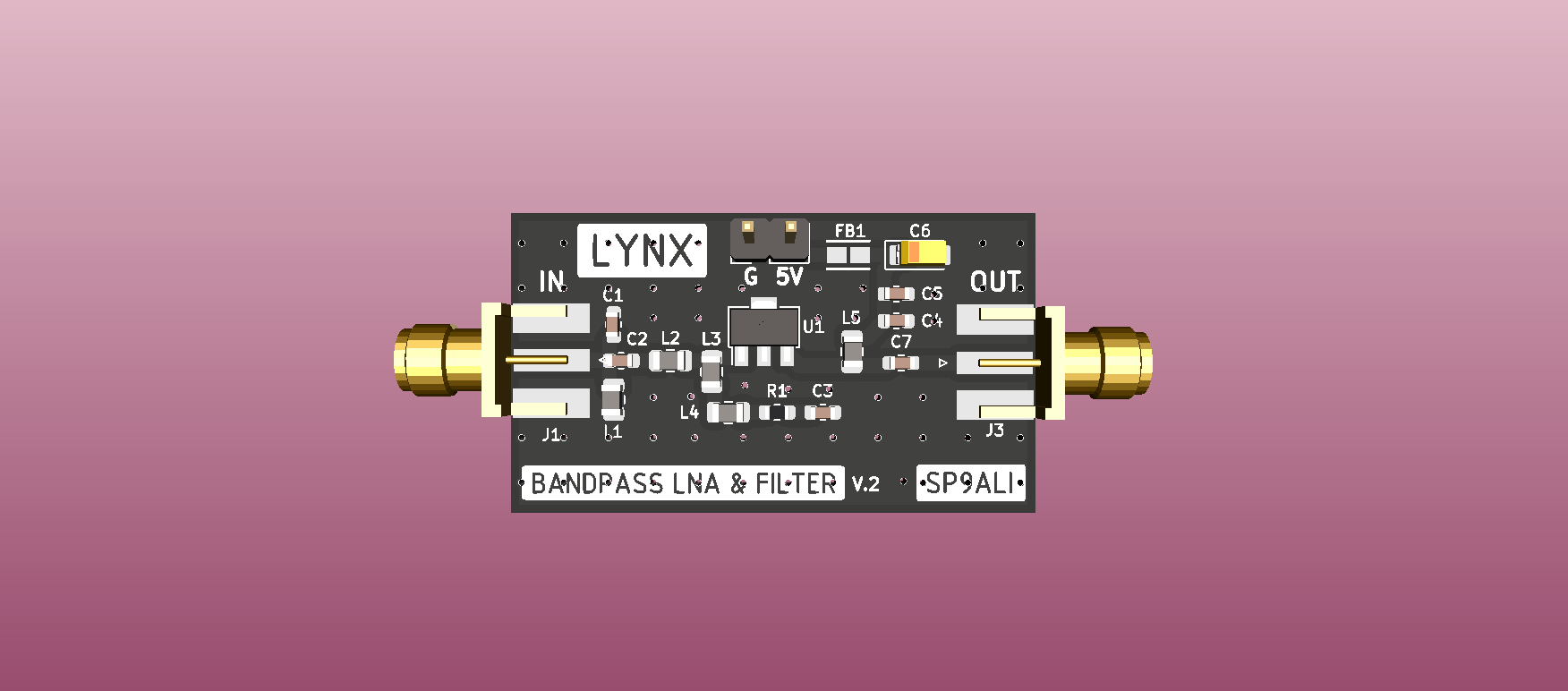

Lynx is an LNA with a filter with two SMA connectors. It was designed for 400-400 MHz (UHF satellite amateur band) by default, but by changing components' values it can be tuned to every chosen frequency. It contains the amplifier (with PGA-103+ as the main component) and the bandpass Chelbyshev filter (shunt first, 2nd order).
Gerber files for version 2.0 of Lynx is available in the releases section.
Main components on the LNA
LNA bill of materials (BOM)
18 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PGA-103+ | SOT-89-3 | U1 |
| 2 | Conn_Coaxial | poprawione_sma | J1, J3 |
| 1 | V5-GND | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | 600R/0.5A | Murata-BLM18-0.15-t0.8-0-0-IPC_A | FB1 |
| 1 | 3nH | L_0805_2012Metric | L1 |
| 1 | 120nH | L_0805_2012Metric | L2 |
| 2 | 310nH | L_0805_2012Metric | L3, L4 |
| 1 | 220nH | L_0805_2012Metric | L5 |
| 1 | 47pF | C_0603_1608Metric | C1 |
| 1 | 1.2pF | C_0603_1608Metric | C2 |
| 1 | 330pF | C_0603_1608Metric | C3 |
| 2 | 100pF | C_0603_1608Metric | C4, C7 |
| 1 | 100nF | C_0603_1608Metric | C5 |
| 1 | 10uF | CP_EIA-3216-18_Kemet-A | C6 |
| 1 | 150R | R_0603_1608Metric | R1 |
LNA design files
The KiCad project lives in the alicjamusial/LNA repository on GitHub; these links point at the commit this page was built from.
- Layoutlna/lna.kicad_pcb
- Schematiclna/lna.kicad_sch
LNA: common questions
How big is the LNA PCB?
The LNA measures 35 × 20 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LNA?
18 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the LNA design files?
From the alicjamusial/LNA repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the LNA design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which alicjamusial chose for the repository.
