About the Line follower PCB
Line follower is an open source STM32 PCB design by alientanya, published on GitHub under the MIT license. It is a 2-layer board measuring 214 × 187.9 mm, with 218 components from 26 distinct parts.
Its main chip is the STM32F411_BP, from the STM32 family. Other key parts include the 74HC4067, TCRT5000L and QRE1113GR. By type, the board carries 133 resistors, 35 ICs, 19 connectors, 9 transistors, 9 diodes and 4 switches.
It belongs with the robotics & motion, power & battery and sensors designs in this gallery.
From the project

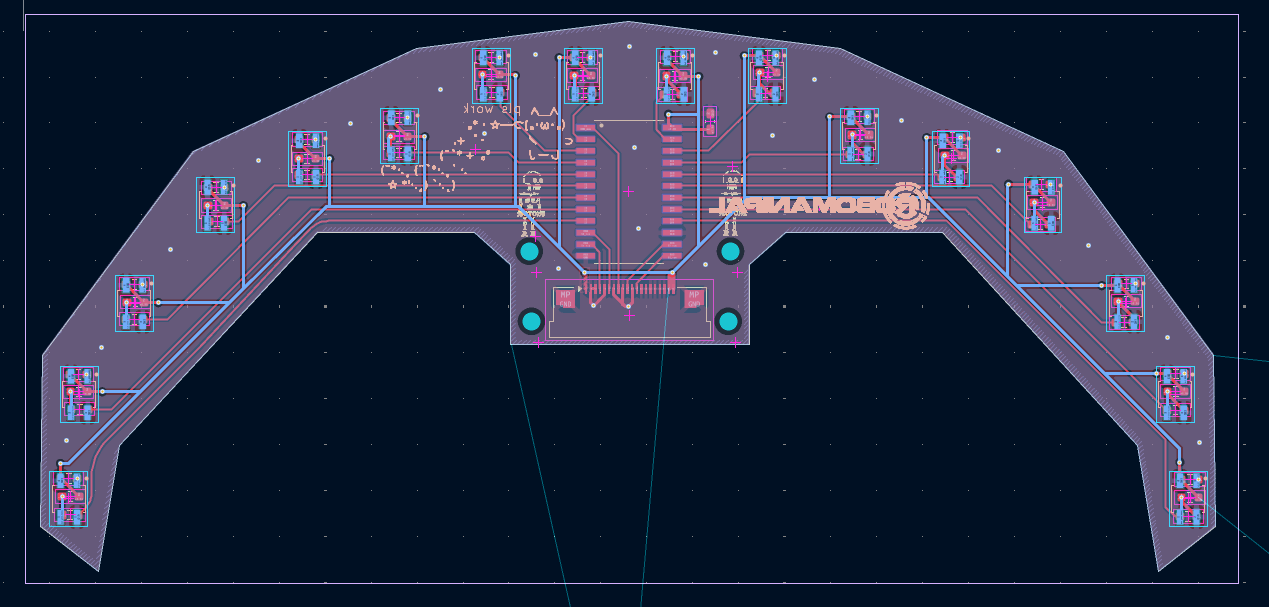

A modular PCB platform for Fast Line Follower (FLF) robots, designed to prioritize sensor experimentation and component flexibility. This board allows multiple sensor array designs to be used interchangeably without redesigning the core electronics. Instead of committing to a sin
A modular PCB platform for Fast Line Follower (FLF) robots, designed to prioritize sensor experimentation and component flexibility. This board allows multiple sensor array designs to be used interchangeably without redesigning the core electronics. Instead of committing to a single sensor layout, this PCB supports four distinct sensor array designs, all compatible with the same base system.

Main components on the Line follower
Line follower bill of materials (BOM)
218 components, 26 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74HC4067 | 74HC4067-Mux | U1 |
| 9 | TCRT5000L | XDCR_TCRT5000L | U2, U4, U5, U6, U7, U8, U9, U19 +1 |
| 25 | QRE1113GR | QRE1113-SMD | U10, U11, U12, U13, U14, U15, U16, U17 +17 |
| 9 | BPW40 | LED_D5.0mm_Clear | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +1 |
| 1 | XT30UPB-M | AMASS_XT30UPB-M_1x02_P5.0mm_Vertical | J1 |
| 5 | Conn_01x20_MountingPin | Amphenol_F32Q-1A7x1-11020_1x20-1MP_P0.5mm_Horizontal | J2, J6, J7, J9, J14 |
| 2 | Conn_01x02_Pin | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | J3, J4 |
| 2 | Conn_01x28_Pin | PinHeader_1x28_P2.54mm_Vertical | J5, J8 |
| 4 | Conn_01x13_Pin | PinHeader_1x13_P2.54mm_Vertical | J10, J11, J12, J13 |
| 5 | Conn_01x11_Pin | PinHeader_1x11_P2.54mm_Vertical | J15, J16, J17, J18, J19 |
| 1 | ~ | PinSocket_1x06_P2.54mm_Vertical | BT2 |
| 1 | STM32F411_BP | blackpill_fp | BlackPill1 |
| 1 | Polyfuse | Fuse_0805_2012Metric_Pad1.15x1.40mm_HandSolder | F1 |
| 1 | ~ | MP1584_fp | MP1 |
| 2 | SW_Push | Push button-fp | SW2, SW3 |
| 2 | SW_Push_DPDT | SW_Push_2P2T_Toggle_CK_PVA2xxH3xxxxxxV2 | SW5, SW6 |
| 1 | ~ | TB6612 module | TB1 |
| 1 | VAL** | mouse-bite-2.54mm-slot | mouse-bite-2.54mm-slot |
| 9 | LED | LED_D5.0mm_Clear | D1, D2, D3, D4, D5, D6, D7, D8 +1 |
| 3 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C10 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R5 |
| 27 | R_Small | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3, R4, R7, R8, R9, R10, R11, R12 +19 |
| 1 | 3.3k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R6 |
| 34 | 220 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R19, R20, R21, R30, R33, R36, R39, R42 +26 |
| 34 | 150 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R22, R23, R26, R28, R31, R34, R37, R40 +26 |
| 34 | 4k7 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R24, R25, R27, R29, R32, R35, R38, R41 +26 |
Line follower design files
The KiCad project lives in the alientanya/line-follower-PCB repository on GitHub; these links point at the commit this page was built from.
Line follower: common questions
What microcontroller does the Line follower use?
The Line follower is built around the STM32F411_BP, from the STM32 family.
How big is the Line follower PCB?
The Line follower measures 214 × 187.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Line follower?
218 components, from 26 distinct parts. The full bill of materials is listed on this page.
Where can I download the Line follower design files?
From the alientanya/line-follower-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Line follower design in my own project?
Yes, under the terms of its MIT license, which alientanya chose for the repository.
Can I test firmware for the Line follower without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
