4runner-Seat-Heat PCB layout, top view — open source NXP board by alorman

About the 4runner-Seat-Heat PCB

4runner-Seat-Heat is an open source NXP PCB design by alorman, published on GitHub. It is a 2-layer board measuring 74.4 × 71.5 mm, with 72 components from 36 distinct parts.

Its main chip is the Teensy3.2, from the NXP family. Other key parts include the TPS54302DDCR. By type, the board carries 29 resistors, 9 connectors, 6 capacitors, 4 transistors, 4 diodes and 2 ICs.

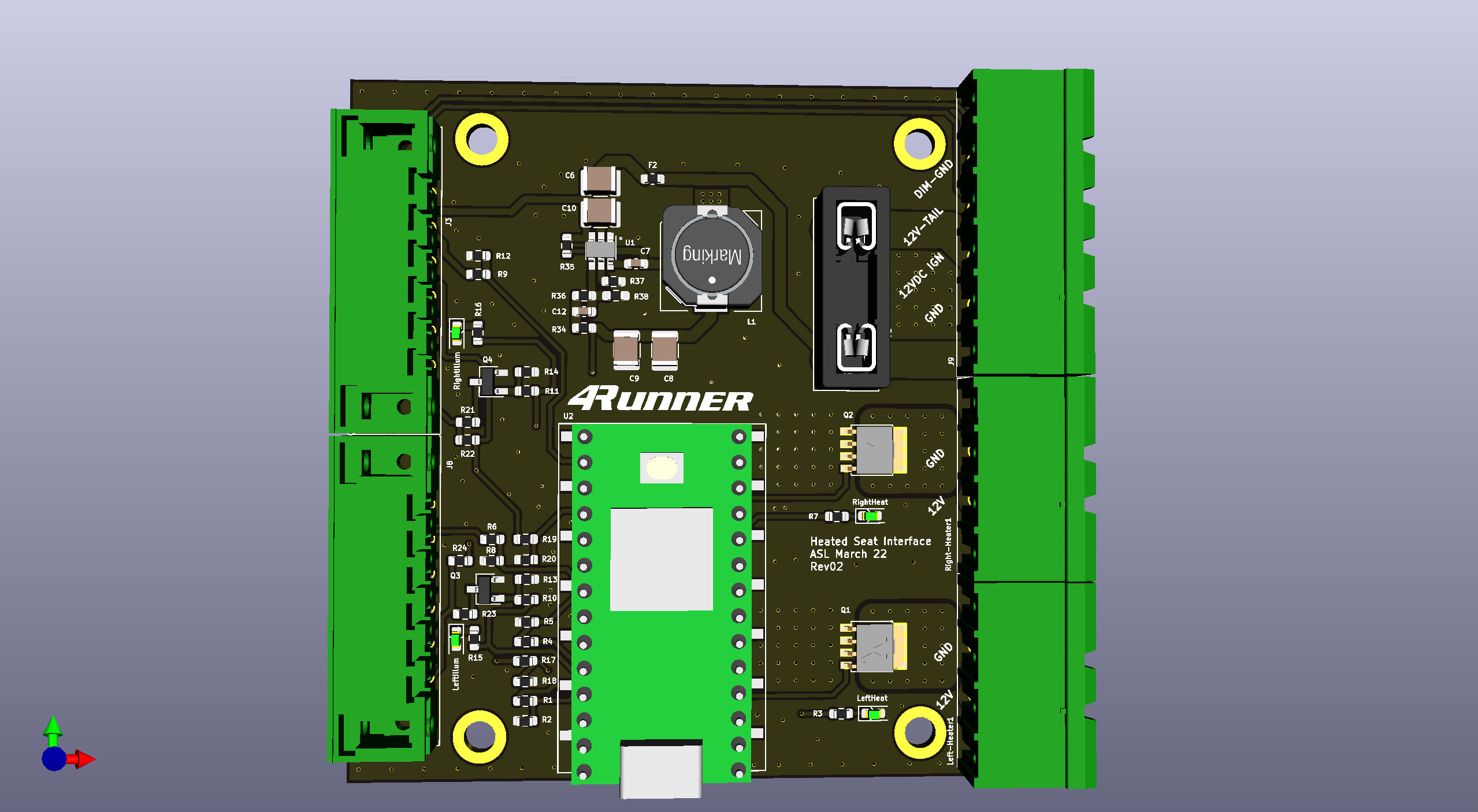

4runner-Seat-Heat, from the project README
From the project README

Main components on the 4runner-Seat-Heat

TPS54302DDCRTeensy3.2

4runner-Seat-Heat bill of materials (BOM)

72 components, 36 distinct parts.

QtyPartRefs
1
TPS54302DDCR
U1
1
Teensy3.2
U2
2
BUK9Y30-75B,115
Q1, Q2
2
BSH103,215
Q3, Q4
1
Toyota-90980-10964
J1
2
TE-284539-6
J3, J8
2
TE-796859-2
J4, J6
1
Toyota-90980-10933
J5
1
TE-284510-6
J7
1
TE-796859-4
J9
1
TE796864-4
J10
1
Fuse
F1
1
Polyfuse
F2
2
TE-796864-2
Left-Heater1, Right-Heater1
11
TE-1743655-1
Pin2, Pin3, Pin4, Pin5, Pin6, Pin7, Pin8, Pin9 +3
1
Toyota-84751-35090
S1
1
Toyota-84751-35100
S2
1
LeftHeatLED
D1
1
RightHeatLED
D2
1
Right-Illum-LED
D3
Show 16 more
QtyPartRefs
1
Left-Illum-LED
D4
1
L
L1
1
0.1uF
C6
1
0.1uF
C7
2
22uF
C8, C9
1
10uF
C10
1
22uF
C12
8
10K
R1, R4, R10, R11, R13, R14, R15, R16
3
100K
R2, R5, R36
6
1K
R3, R7, R8, R12, R18, R20
4
3.6k
R6, R9, R17, R19
4
0ohm
R21, R22, R23, R24
1
49.9
R34
1
510k
R35
1
105k
R37
1
22k
R38

4runner-Seat-Heat design files

The KiCad project lives in the alorman/4runner-Seat-Heat-PCB repository on GitHub; these links point at the commit this page was built from.

4runner-Seat-Heat: common questions

What microcontroller does the 4runner-Seat-Heat use?

The 4runner-Seat-Heat is built around the Teensy3.2, from the NXP family.

How big is the 4runner-Seat-Heat PCB?

The 4runner-Seat-Heat measures 74.4 × 71.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 4runner-Seat-Heat?

72 components, from 36 distinct parts. The full bill of materials is listed on this page.

Where can I download the 4runner-Seat-Heat design files?

From the alorman/4runner-Seat-Heat-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 4runner-Seat-Heat design in my own project?

The repository has no license, so all rights stay with alorman. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 4runner-Seat-Heat without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
