Cr2032 toaster

alxlab-zone66x·cr2032_toaster·kicad/CR2032 Toaster_v1.2.kicad_pcb

Cr2032 toaster PCB layout, top view — open source board by alxlab-zone66x
Simulate this board

About the Cr2032 toaster PCB

Cr2032 toaster is an open source PCB design by alxlab-zone66x, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 26.5 × 15.5 mm, with 3 components from 2 distinct parts.

By type, the board carries 2 connectors and 1 battery holder.

It belongs with the power & battery designs in this gallery, and the repository also holds 6 earlier revisions of it.

From the project

CR2032 to 1/2AA converter to use in various old Macintosh computers that used 1/2AA batteries as the PRAM battery.

This is intended to slot in vertically into a 1/2AA battery holder seen on many Macintosh computers for the PRAM battery. It will allow the use of the less expensive, easier to find and less leaky CR2032 coin batteries.

This is meant to be used laying flat in the battery holder like so:

There's also two extra through holes to solder wires for other uses.

The gerber, bom and component placement files are in the production folder.

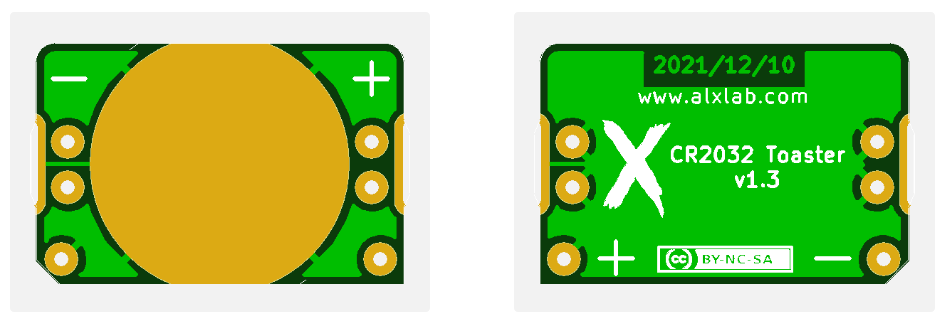

Cr2032 toaster, from the project README
From the project README

Cr2032 toaster bill of materials (BOM)

3 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
Conn_01x01
J1, J2
1
BAT-HLD-001-THM
BT1

Cr2032 toaster design files

The KiCad project lives in the alxlab-zone66x/cr2032_toaster repository on GitHub; these links point at the commit this page was built from.

Cr2032 toaster: common questions

How big is the Cr2032 toaster PCB?

The Cr2032 toaster measures 26.5 × 15.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Cr2032 toaster?

3 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Cr2032 toaster design files?

From the alxlab-zone66x/cr2032_toaster repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Cr2032 toaster design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Earlier revisions in the repo: CR2032 Toaster_v1.1, CR2032 Toaster_v1.0, CR2032 Toaster v1.3d, CR2032 Toaster v1.3c, CR2032 Toaster v1.3b, CR2032 Toaster v1.3
