Macintosh Portable Battery Adapter

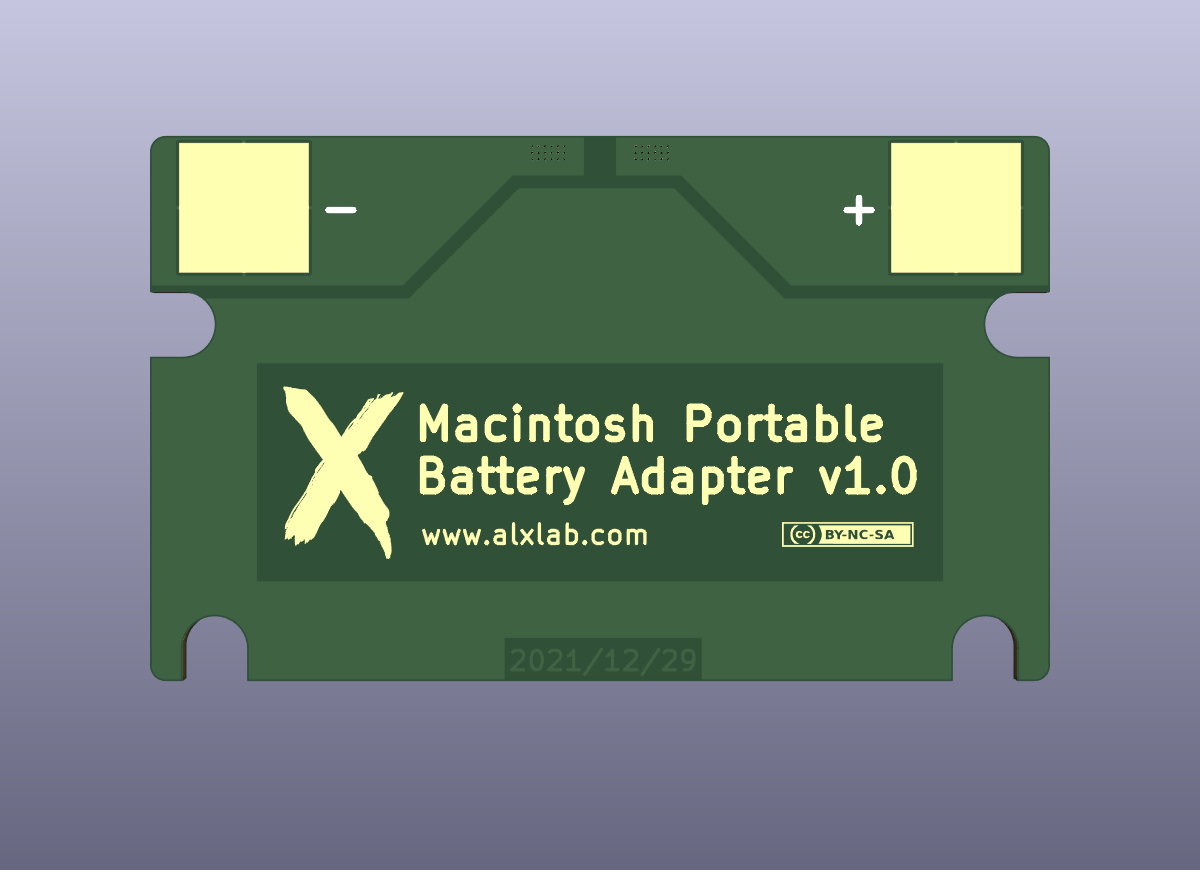

About the Macintosh Portable Battery Adapter PCB
Macintosh Portable Battery Adapter is an open source PCB design by alxlab-zone66x, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 139 × 84.2 mm, with 12 components from 6 distinct parts.
Other key parts include the ALD810025SCL. By type, the board carries 6 resistors, 3 capacitors, 1 IC, 1 connector and 1 battery holder.
It belongs with the power & battery designs in this gallery, and the repository also holds 2 earlier revisions of it.
From the project
This project aims to make a PCB and case to easily use a standard 6V lead-acid battery with spade connector as the Macintosh Portable battery.
This project was created to allow current rectangular 6v lead-acid batteries with spade terminals to be used as a Macintosh Portable battery in a cost effective manner. This is achieved with a spacer made of plastic or cardboard and PCB for the battery contacts. The lead-acid battery is then connected to the PCB via wires with female spade connectors.
The spacer and PCB is sufficient and the cheapest way to use a 6V lead-acid battery in the portable. This is useful for testing since the battery can be easily swapped.
Main components on the Macintosh Portable Battery Adapter
Macintosh Portable Battery Adapter bill of materials (BOM)
12 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ALD810025SCL | SOIC-16_3.9x9.9mm_P1.27mm | U1 |
| 1 | Conn_01x02_Female | Macintosh_Portable_Battery_Wire_Pads | J1 |
| 1 | Macintosh_Portable_Battery | Macintosh_Portable_Battery_Contacts | BT1 |
| 3 | 5F 2.7V | CP_Radial_D10.0mm_P5.00mm | C1, C2, C3 |
| 3 | 9kOhm | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3 |
| 3 | 9kOhm | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R11, R12, R13 |
Macintosh Portable Battery Adapter design files
The KiCad project lives in the alxlab-zone66x/Macintosh_Portable_Battery_Adapter repository on GitHub; these links point at the commit this page was built from.
Macintosh Portable Battery Adapter: common questions
How big is the Macintosh Portable Battery Adapter PCB?
The Macintosh Portable Battery Adapter measures 139 × 84.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Macintosh Portable Battery Adapter?
12 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Macintosh Portable Battery Adapter design files?
From the alxlab-zone66x/Macintosh_Portable_Battery_Adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Macintosh Portable Battery Adapter design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
Earlier revisions in the repo: Macintosh Portable Battery Adapter v1.1, Macintosh Portable Battery Adapter v1.0
