ImageRecognitionGlasses PCB layout, top view — open source board by AM1NOM

About the ImageRecognitionGlasses PCB

ImageRecognitionGlasses is an open source PCB design by AM1NOM, published on GitHub. It is a 2-layer board measuring 30 × 56 mm, with 7 components from 3 distinct parts.

By type, the board carries 3 switches, 3 resistors and 1 connector.

It belongs with the power & battery designs in this gallery.

From the project

glasses

We are aiming to build a device that can help blind people be aware of their surroundings, using a camera, image recognition, and text-to-speech. There are several stages involved in building the device, including designing the hardware and developing the software. You can find our Word document about this project here.

For the complete, raw BOM file see BOM.csv.

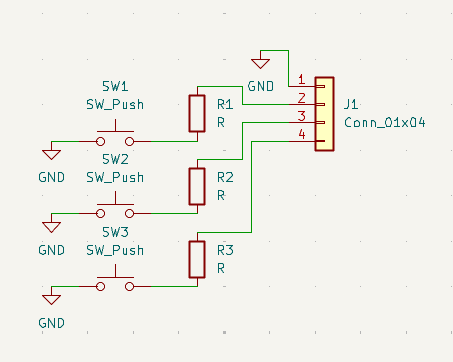

ImageRecognitionGlasses, from the project README
From the project README

ImageRecognitionGlasses bill of materials (BOM)

7 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Conn_01x04
J1
3
SW_Push
SW1, SW2, SW3
3
R
R1, R2, R3

ImageRecognitionGlasses design files

The KiCad project lives in the AM1NOM/ImageRecognitionGlasses repository on GitHub; these links point at the commit this page was built from.

ImageRecognitionGlasses: common questions

How big is the ImageRecognitionGlasses PCB?

The ImageRecognitionGlasses measures 30 × 56 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ImageRecognitionGlasses?

7 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ImageRecognitionGlasses design files?

From the AM1NOM/ImageRecognitionGlasses repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ImageRecognitionGlasses design in my own project?

The repository has no license, so all rights stay with AM1NOM. Use it as a reference, and ask the author before reusing the design.
