Ani kb

Anayjain1129·ani-kb·PCB/ani_keeb.kicad_pcb

Ani kb PCB layout, top view — open source RP2040/RP2350 board by Anayjain1129

About the Ani kb PCB

Ani kb is an open source RP2040/RP2350 PCB design by Anayjain1129, published on GitHub. It is a 2-layer board measuring 355.5 × 138 mm, with 158 components from 10 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 79 diodes, 78 switches and 1 module.

It belongs with the keyboards designs in this gallery.

From the project

- Raspberry Pi Pico - Customised layout - QMK firmware - cool silkscreen - Custom case

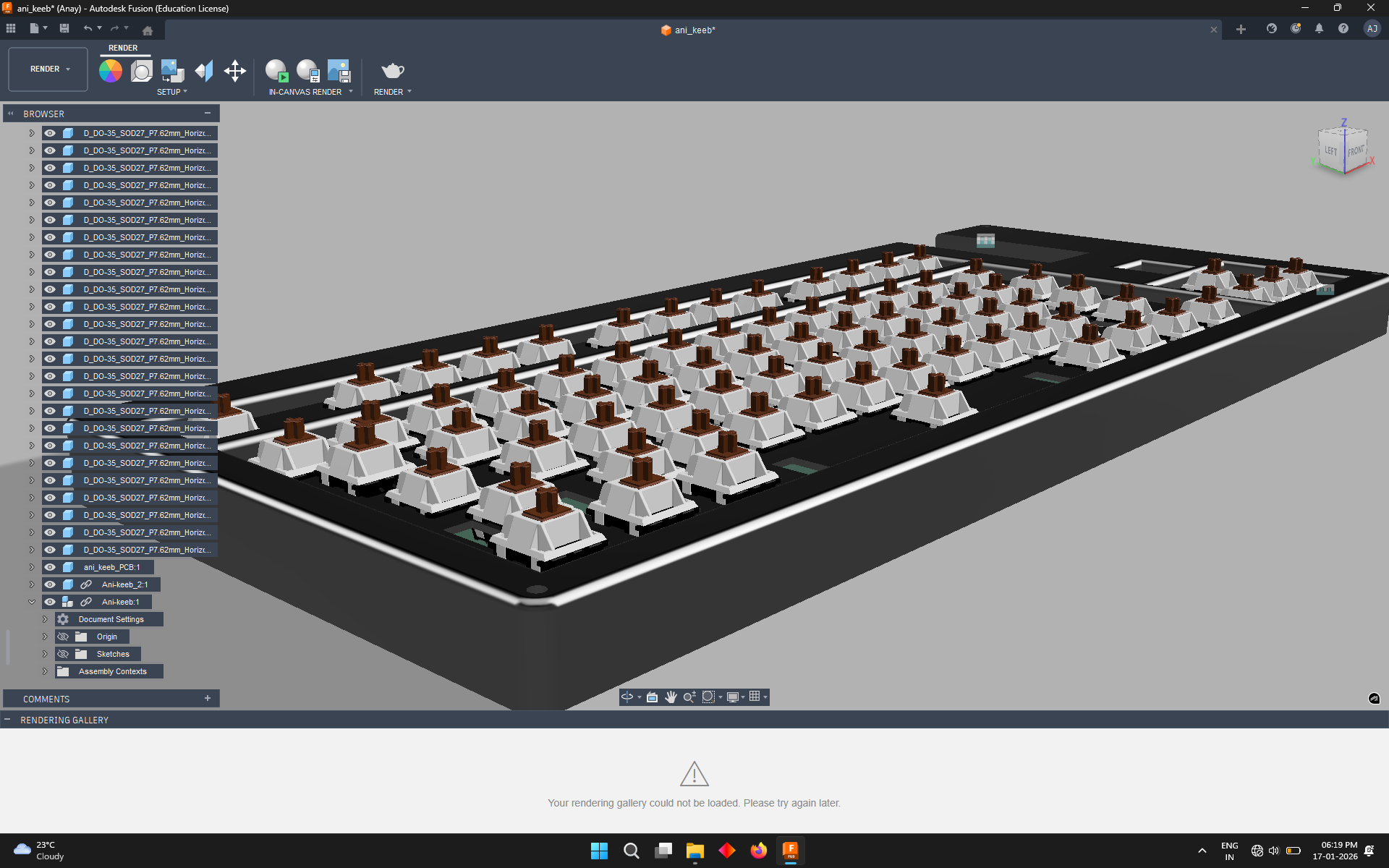

Ani kb, from the project README
From the project README

Main components on the Ani kb

RaspberryPi_Pico

Ani kb bill of materials (BOM)

158 components, 10 distinct parts.

QtyPartRefs
1
RaspberryPi_Pico
A1
63
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +55
1
SW_Push
SW27
2
SW_Push
SW28, SW41
1
SW_Push
SW42
2
SW_Push
SW54, SW55
1
SW_Push
SW66
7
SW_Push
SW68, SW69, SW70, SW72, SW73, SW74, SW75
1
SW_Push
SW71
79
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +71

Ani kb design files

The KiCad project lives in the Anayjain1129/ani-kb repository on GitHub; these links point at the commit this page was built from.

Ani kb: common questions

What microcontroller does the Ani kb use?

The Ani kb is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Ani kb PCB?

The Ani kb measures 355.5 × 138 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ani kb?

158 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ani kb design files?

From the Anayjain1129/ani-kb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Ani kb design in my own project?

The repository has no license, so all rights stay with Anayjain1129. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Ani kb without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
