About the Chaney--Board
Chaney--Board is an open source RP2040/RP2350 PCB design by Anayjain1129, published on GitHub. It is a 2-layer board measuring 345.2 × 129.2 mm, with 165 components from 10 distinct parts.
Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 82 switches, 82 diodes and 1 module.
It belongs with the keyboards designs in this gallery.
From the project
it's just a keyboard

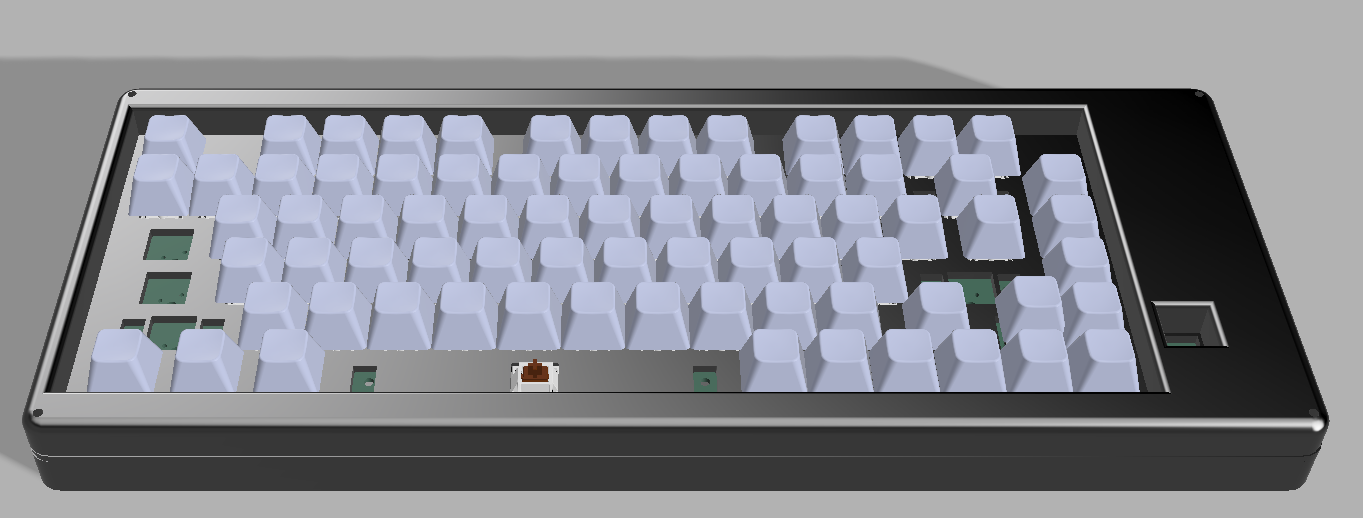

- Rotary Encoder for volume control - 81x keys - Raspberry Pi Pico - Customised layout - QMK firmware

Main components on the Chaney--Board
Chaney--Board bill of materials (BOM)
165 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RaspberryPi_Pico | RaspberryPi_Pico_Common_Unspecified | A1 |
| 70 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +62 |
| 1 | SW_Push | SW_Cherry_MX_2.00u_PCB | SW27 |
| 2 | SW_Push | SW_Cherry_MX_1.50u_PCB | SW29, SW42 |
| 2 | SW_Push | SW_Cherry_MX_1.75u_PCB | SW44, SW69 |
| 2 | SW_Push | SW_Cherry_MX_2.25u_PCB | SW56, SW58 |
| 3 | SW_Push | SW_Cherry_MX_1.25u_PCB | SW72, SW73, SW74 |
| 1 | SW_Push | SW_Cherry_MX_6.25u_PCB | SW75 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW82 |
| 82 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +74 |
Chaney--Board design files
The KiCad project lives in the Anayjain1129/Chaney--Board repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/Chaney_Board.kicad_pcb
- SchematicPCB/Chaney_Board.kicad_sch
- BOMbom.csv
Chaney--Board: common questions
What microcontroller does the Chaney--Board use?
The Chaney--Board is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.
How big is the Chaney--Board?
The Chaney--Board measures 345.2 × 129.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Chaney--Board?
165 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Chaney--Board design files?
From the Anayjain1129/Chaney--Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Chaney--Board design in my own project?
The repository has no license, so all rights stay with Anayjain1129. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Chaney--Board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
