Rp2040-target board

andrewthecoolest·rp2040-target-board·hardware/rp2040-target.kicad_pcb

Rp2040-target board layout, top view — open source RP2040/RP2350 board by andrewthecoolest
Simulate this board

About the Rp2040-target board

Rp2040-target board is an open source RP2040/RP2350 PCB design by andrewthecoolest, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 52.5 × 64.5 mm, with 16 components from 9 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the C97521. By type, the board carries 10 capacitors, 4 resistors and 2 ICs.

From the project

RP2040 CW308 target board for side-channel analysis and fault injection research.

A ChipWhisperer-compatible target board built around the Raspberry Pi RP2040.

This board connects an RP2040 with shunt to the CW308 UFO.

- RP2040 dual-core Arm Cortex-M0+ microcontroller - 16MB QSPI flash - ChipWhisperer 60-pin UFO308 target connector - 5Ω shunt (changable to anything < 10Ω) - 2-layer PCB - Made with love

If you want to make your own, Gerbers are in fab/gerbers/. I made it with JLCPCB default 2-layer settings, so I included CPL and BOM for JLCPCB. For JLCPCB specifically, I've already zipped the gerbers and drill.

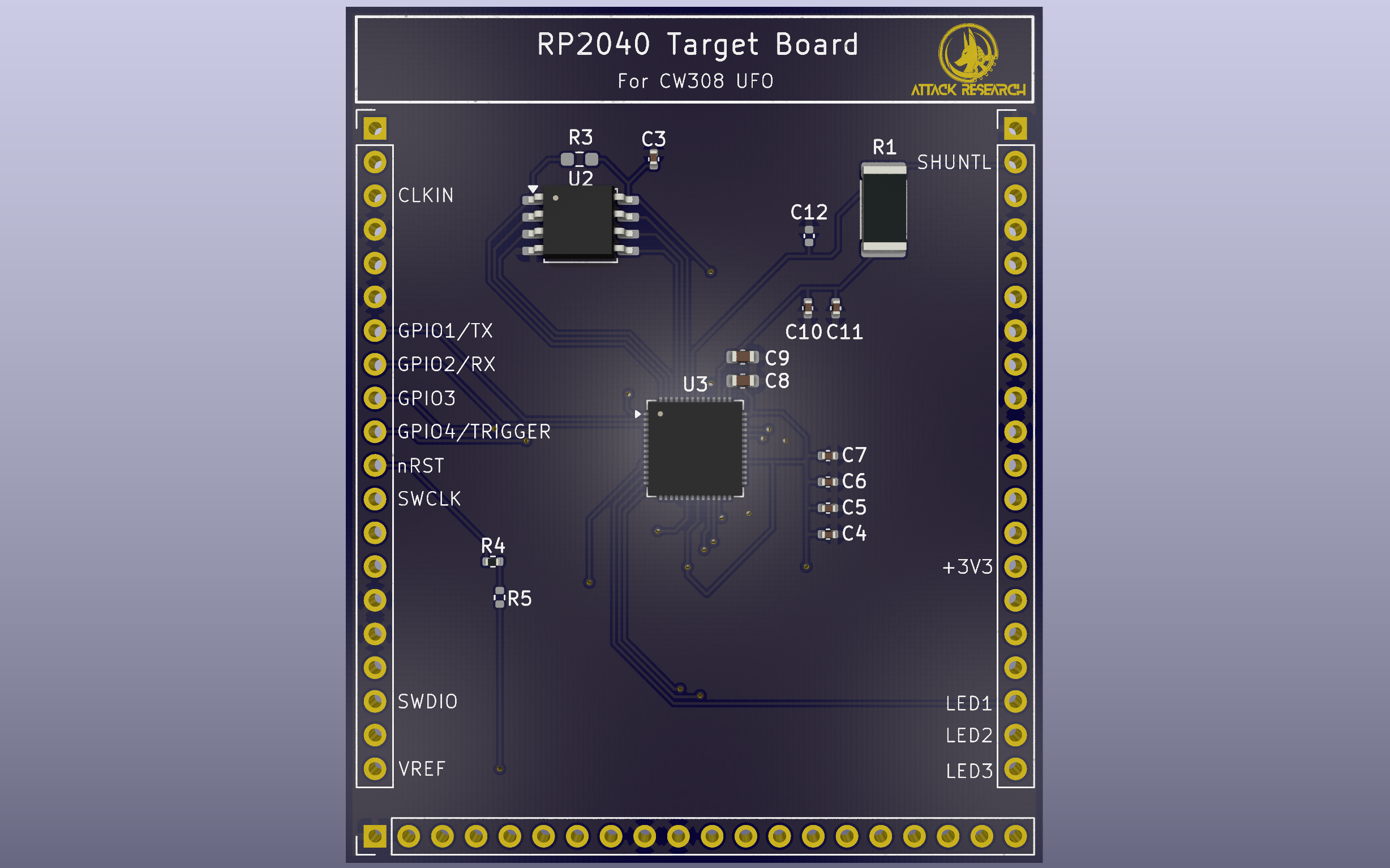

Rp2040-target board, from the project README
From the project README

Main components on the Rp2040-target board

C97521C2040

Rp2040-target board bill of materials (BOM)

16 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C97521
W25Q128JVS
U2
1
C2040
RP2040
U3
7
C1525
100nF
C3, C4, C5, C6, C7, C10, C11
2
C1592
1uF
C8, C9
1
C1524
10nF
C12
1
C5123609
5Ω
R1
1
~
R3
1
C17168
0Ω
R4
1
C17168
10kΩ
R5

Rp2040-target board design files

The KiCad project lives in the andrewthecoolest/rp2040-target-board repository on GitHub; these links point at the commit this page was built from.

Rp2040-target board: common questions

What microcontroller does the Rp2040-target board use?

The Rp2040-target board is built around the C2040, from the RP2040/RP2350 family.

How big is the Rp2040-target board?

The Rp2040-target board measures 52.5 × 64.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rp2040-target board?

16 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rp2040-target board design files?

From the andrewthecoolest/rp2040-target-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Rp2040-target board design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which andrewthecoolest chose for the repository.

Can I test firmware for the Rp2040-target board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
