About the StonePCR PCB
StonePCR is an open source STM32 PCB design by andykamin3, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 77.6 × 102.5 mm, with 49 components from 28 distinct parts.
Its main chip is the STM32F102R8Tx, from the STM32 family. Other key parts include the VNH5019A-E, CR2013-MI2120 and USBLC6-2P6. By type, the board carries 15 connectors, 11 resistors, 10 capacitors, 5 ICs, 3 switches and 2 crystals.

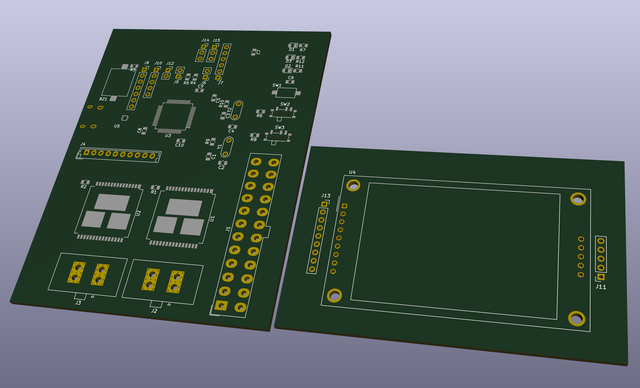

From the project
Termociclador (Máquina de PCR) diseñada con KiCad
Este microcontrolador fue elegido dado que representaba un improvement por sobre el Atmega328 del OpenPCR. A su vez contaba con pines que soportaban los protocolos necesarios tal como I2C y SPI. Por último contaba con pines que soportaban la interfaz casi directa con un puerto USB, elemento altamente deseable para evitar complicaciones en el desarrollo de la interfaz. Por último, el ADC integrado era suficiente para la lectura de los sensores, proporcionando la precisión suficiente. - Datasheet - Guía de Comienzo Rápido

Main components on the StonePCR
StonePCR bill of materials (BOM)
49 components, 28 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | VNH5019A-E | ST_MultiPowerSO-30 | U1, U2 |
| 1 | STM32F102R8Tx | LQFP-64_10x10mm_P0.5mm | U3 |
| 1 | CR2013-MI2120 | CR2013-MI2120 | U4 |
| 1 | USBLC6-2P6 | SOT-666 | U5 |
| 1 | 32KHz | Resonator-2Pin_W7.0mm_H2.5mm | Y1 |
| 1 | 8MHz | Resonator-2Pin_W7.0mm_H2.5mm | Y2 |
| 1 | ATX-24 | Molex_Mini-Fit_Jr_5566-24A_2x12_P4.20mm_Vertical | J1 |
| 2 | Conn_01x02 | Molex_Sabre_43160-0102_1x02_P7.49mm_Vertical_ThermalVias | J2, J3 |
| 1 | Conn_ARM_JTAG_SWD_10 | JST_EH_B10B-EH-A_1x10_P2.50mm_Vertical | J4 |
| 2 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J5, J6 |
| 1 | HC 05 Connector | PinHeader_1x06_P2.54mm_Vertical | J7 |
| 1 | USB_B_Micro | USB_Micro-B_Wuerth_629105150521 | J8 |
| 1 | Conn_01x07 | PinSocket_1x07_P2.54mm_Vertical | J9 |
| 2 | Conn_01x05 | PinSocket_1x05_P2.54mm_Vertical | J10, J11 |
| 1 | Conn_01x02 | PinSocket_1x02_P2.54mm_Vertical | J12 |
| 1 | Conn_01x09 | PinSocket_1x09_P2.54mm_Vertical | J13 |
| 2 | Conn_01x03 | PinSocket_1x03_P2.54mm_Vertical | J14, J15 |
| 1 | Buzzer | Buzzer_Mallory_AST1109MLTRQ | BZ1 |
| 1 | SW_Push | SW_SPST_CK_RS282G05A3 | SW1 |
| 2 | SW_SPDT | SW_SPDT_PCM12 | SW2, SW3 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LED | LED_0805_2012Metric | D1, D3 |
| 2 | 10pf | C_0805_2012Metric | C1, C2 |
| 2 | 20pf | C_0805_2012Metric | C3, C4 |
| 6 | 100nF | C_0805_2012Metric | C5, C6, C7, C8, C9, C10 |
| 7 | 10k | R_0805_2012Metric | R1, R2, R4, R5, R6, R7, R8 |
| 1 | 100 | R_0805_2012Metric | R3 |
| 2 | 390 | R_0805_2012Metric | R9, R10 |
| 1 | 1k | R_0805_2012Metric | R12 |
StonePCR design files
The KiCad project lives in the andykamin3/StonePCR repository on GitHub; these links point at the commit this page was built from.
- Layoutstonepcr.kicad_pcb
StonePCR: common questions
What microcontroller does the StonePCR use?
The StonePCR is built around the STM32F102R8Tx, from the STM32 family.
How big is the StonePCR PCB?
The StonePCR measures 77.6 × 102.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the StonePCR?
49 components, from 28 distinct parts. The full bill of materials is listed on this page.
Where can I download the StonePCR design files?
From the andykamin3/StonePCR repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the StonePCR design in my own project?
Yes, under the terms of its GPL-3.0 license, which andykamin3 chose for the repository.
Can I test firmware for the StonePCR without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
