Hackpad PCB layout, top view — open source RP2040/RP2350 board by andylin08

About the Hackpad PCB

Hackpad is an open source RP2040/RP2350 PCB design by andylin08, published on GitHub. It is a 2-layer board measuring 76 × 45 mm, with 7 components from 3 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 4 switches, 2 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

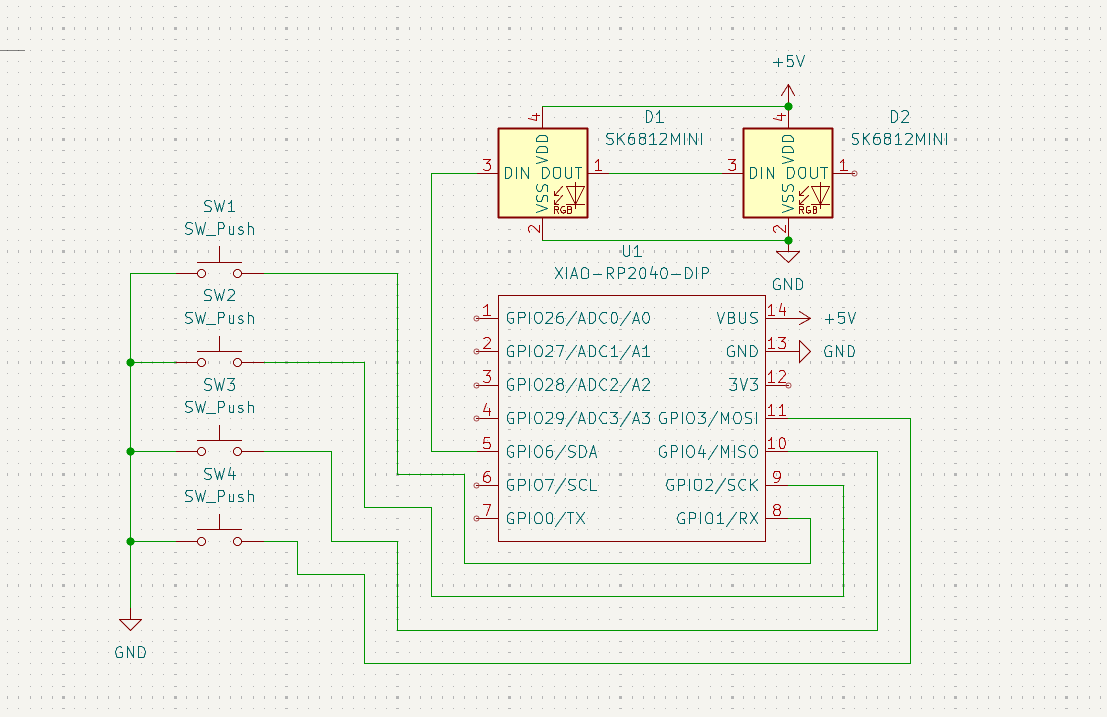

Hackpad, from the project README
From the project README

Main components on the Hackpad

XIAO-RP2040-DIP

Hackpad bill of materials (BOM)

7 components, 3 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
4
SW_Push
SW1, SW2, SW3, SW4
2
SK6812MINI
D1, D2

Hackpad design files

The KiCad project lives in the andylin08/hackpad repository on GitHub; these links point at the commit this page was built from.

Hackpad: common questions

What microcontroller does the Hackpad use?

The Hackpad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Hackpad PCB?

The Hackpad measures 76 × 45 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpad?

7 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Hackpad design files?

From the andylin08/hackpad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Hackpad design in my own project?

The repository has no license, so all rights stay with andylin08. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Hackpad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
