Breadboard VFD PSU
About the Breadboard VFD PSU PCB
Breadboard VFD PSU is an open source PCB design by ansemjo, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 51.7 × 33 mm, with 39 components from 36 distinct parts.
Other key parts include the AP2114H-3.3TRG1, LM2733YMF/NOPB, DS1338Z-33+ and 2021. By type, the board carries 10 connectors, 7 resistors, 6 test points, 6 capacitors, 3 ICs and 2 inductors.
It belongs with the displays & leds and dev boards & breakouts designs in this gallery.
From the project

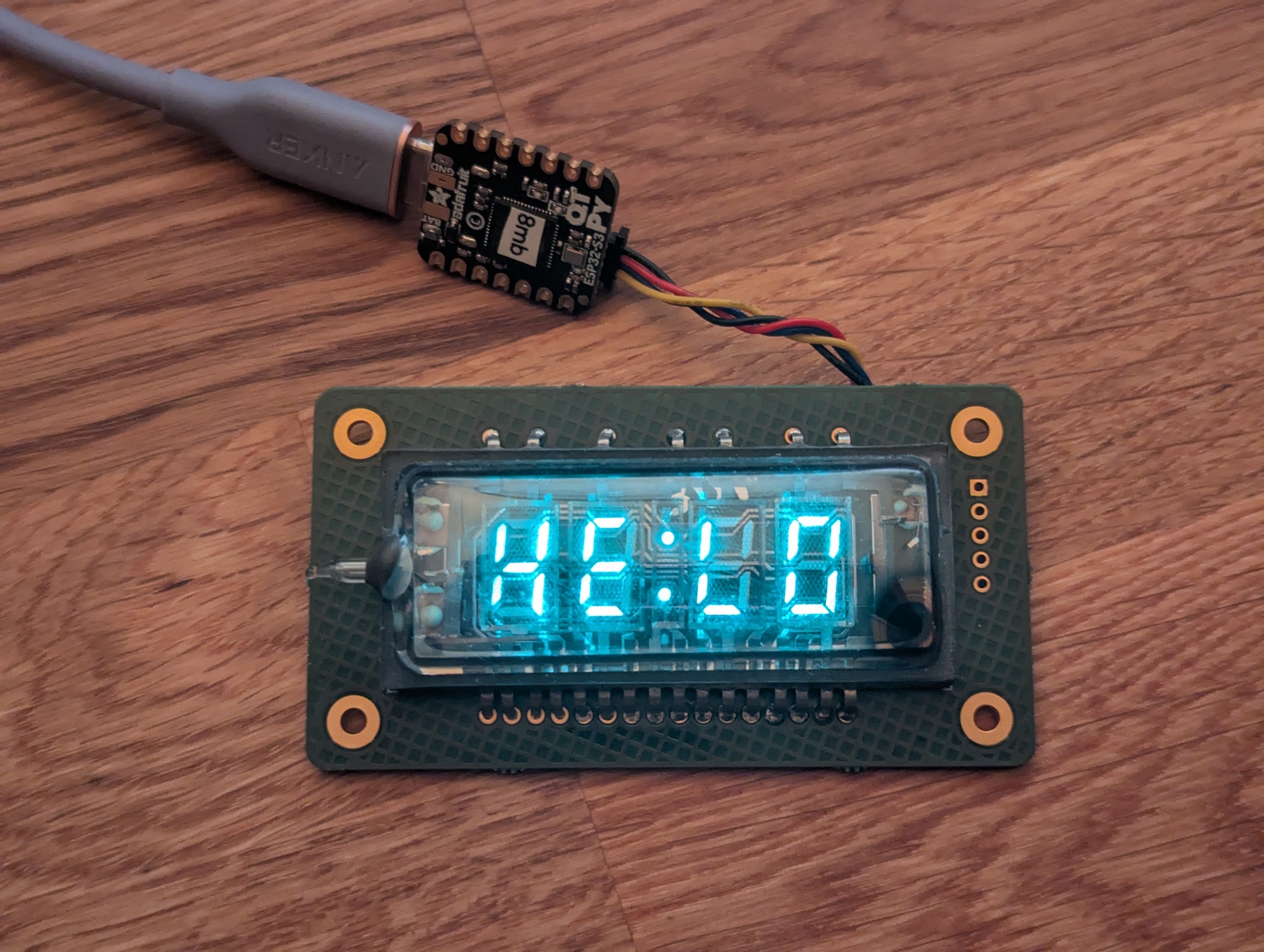

hardware project for a clock around a russian ivl2-5/7 vfd and an esp32-wroom module
A vacuum-flourescent display (VFD) clock project based on Soviet NOS IVL2-7/5 / ИВЛ2-7/5 tubes. This has been my first somewhat complex hardware project when I got into electronics design in 2020 and grew to multiple iterations over the years.
vfddriver — updated display board, which can be used over I2C sandwich — the original clock design with two boards * other — links to initial research prototypes and various experiments
Main components on the Breadboard VFD PSU
Breadboard VFD PSU bill of materials (BOM)
39 components, 36 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP2114H-3.3TRG1 74LS132 Diodes Inc. | SOIC-14_3.9x8.7mm_P1.27mm | U1 |
| 1 | LM2733YMF/NOPB LM2733YMF Espressif | SOT-23-5 | U3 |
| 1 | DS1338Z-33+ ZXBM5210-S Maxim | SOIC-8_3.9x4.9mm_P1.27mm | U4 |
| 1 | 2021 | ahoi | A1 |
| 1 | PPTC081LFBN-RC USB_B_Micro Sullins | USB_Micro-B_Amphenol_10118194_Horizontal | J1 |
| 1 | PRPC040DAAN-RC PWR Header Sullins | PinHeader_2x02_P2.54mm_Vertical | J2 |
| 1 | 20021121-00010C4LF HV Jumper Amphenol | PinHeader_2x03_P2.54mm_Vertical | J3 |
| 1 | Filament Jumper | PinHeader_2x02_P2.54mm_Vertical | J4 |
| 1 | Filament EN | PinHeader_2x01_P2.54mm_Vertical | J5 |
| 1 | HV EN | PinHeader_2x01_P2.54mm_Vertical | J6 |
| 2 | Breadboard Rail | PinHeader_1x02_P2.54mm_Vertical | J21, J22 |
| 2 | Breadboard NC | PinHeader_1x02_P2.54mm_Vertical | J31, J32 |
| 1 | Trimmer | Potentiometer_Bourns_3266W_Vertical | RV1 |
| 1 | RC0805FR-0710KL 10kΩ | Potentiometer_Bourns_3266W_Vertical | RV4 |
| 1 | 5V | TestPoint_THTPad_D1.5mm_Drill0.7mm | TP1 |
| 1 | hv | TestPoint_THTPad_D1.5mm_Drill0.7mm | TP2 |
| 1 | freq | TestPoint_THTPad_D1.5mm_Drill0.7mm | TP3 |
| 1 | GND | TestPoint_THTPad_D1.5mm_Drill0.7mm | TP4 |
| 1 | fB | TestPoint_THTPad_D1.5mm_Drill0.7mm | TP11 |
| 1 | fA | TestPoint_THTPad_D1.5mm_Drill0.7mm | TP12 |
Show 16 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | IVL2-5_7 | IVL2-7_5-singleSide | VFD1 |
| 1 | 1N5819HW-7-F Vishay | D_SOD-123 | D1 |
| 1 | LBC3225T100MR 10µH | L_1210_3225Metric_Pad1.42x2.65mm_HandSolder | L1 |
| 1 | 10µH | L_1210_3225Metric_Pad1.42x2.65mm_HandSolder | L2 |
| 2 | UMK212BBJ475KG-T 4.7µF Samsung | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2 |
| 1 | CC0805JRNPO9BN820 82pF Samsung | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 1 | UCD1E470MCL1GS 47µF Samsung | CP_Elec_6.3x5.9 | C4 |
| 1 | CC0805JRNPO9BN470 10nF Yageo | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C11 |
| 1 | CL21B104KACNNNC 10µF Samsung | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C12 |
| 1 | RC0805FR-0747KL 47kΩ Yageo | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 1 | RC0805FR-0713KL 13kΩ Yageo | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
| 1 | RC0805FR-07240KL 240kΩ Yageo | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
| 1 | RC0805FR-0727RL 10kΩ Yageo | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R14 |
| 1 | RC0805FR-0710KL 10kΩ Yageo | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R15 |
| 1 | RC0805FR-0710KL 10Ω Yageo | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R16 |
| 1 | 10Ω | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R17 |
Breadboard VFD PSU design files
The KiCad project lives in the ansemjo/chronovfd repository on GitHub; these links point at the commit this page was built from.
Breadboard VFD PSU: common questions
How big is the Breadboard VFD PSU PCB?
The Breadboard VFD PSU measures 51.7 × 33 mm, has 2 copper layers and is 1.6002 mm thick.
How many components are on the Breadboard VFD PSU?
39 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Breadboard VFD PSU design files?
From the ansemjo/chronovfd repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Breadboard VFD PSU design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which ansemjo chose for the repository.
