Current Sensor Breakout

antevens·boatcontrol·addon/CurrentSensor/CurrentSensor.kicad_pcb

Current Sensor Breakout layout, top view — open source board by antevens
Simulate this board

About the Current Sensor Breakout

Current Sensor Breakout is an open source PCB design by antevens, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 80.1 × 49.4 mm, with 14 components from 7 distinct parts.

Other key parts include the MCP3423 and ACS37002. By type, the board carries 6 capacitors, 3 ICs and 3 connectors.

It belongs with the dev boards & breakouts and sensors designs in this gallery.

From the project

A Relay PCB with a socket for a Raspberry Pi or Nvidia Jetson to control everything on a boat

Boatcontrol is an open hardware design for a marine grade SMART/IoT electrical distribution panel and electronics platform (boat) controller.

It's an I/O breakout board capable of switching 32 onboard laching relays and optionally 32 momentary/laching relays using addon boards switchnig up to 60A AC/DC 0-400V per circuit.

The "smart" part is provided by either a Raspberry Pi HAT or a Nvidia Jetson (Nano/Xavier NX) either of which can be mounted on the board.

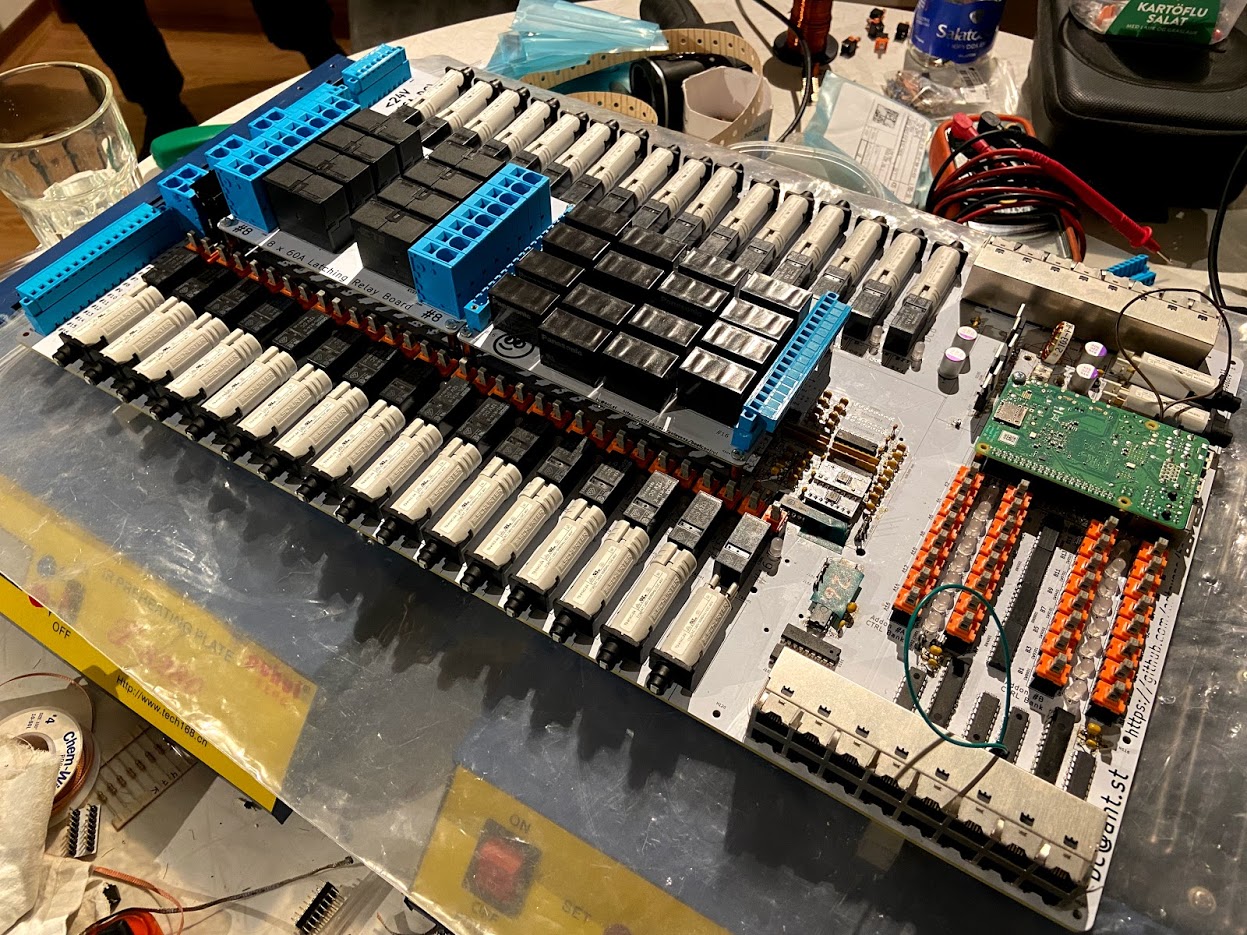

Current Sensor Breakout, from the project README
From the project README

Main components on the Current Sensor Breakout

MCP3423ACS37002

Current Sensor Breakout bill of materials (BOM)

14 components, 7 distinct parts.

QtyPartRefs
1
MCP3423
U101
2
ACS37002
U201, U301
3
Conn_01x08_Male
J101, J102, J103
2
50K Ω Trimpot
RV201, RV301
2
0.1uF
C201, C301
2
10uF
C202, C302
2
0.1nF
C203, C303

Current Sensor Breakout design files

The KiCad project lives in the antevens/boatcontrol repository on GitHub; these links point at the commit this page was built from.

Current Sensor Breakout: common questions

How big is the Current Sensor Breakout?

The Current Sensor Breakout measures 80.1 × 49.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Current Sensor Breakout?

14 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Current Sensor Breakout design files?

From the antevens/boatcontrol repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Current Sensor Breakout design in my own project?

It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
