Artix dc scm

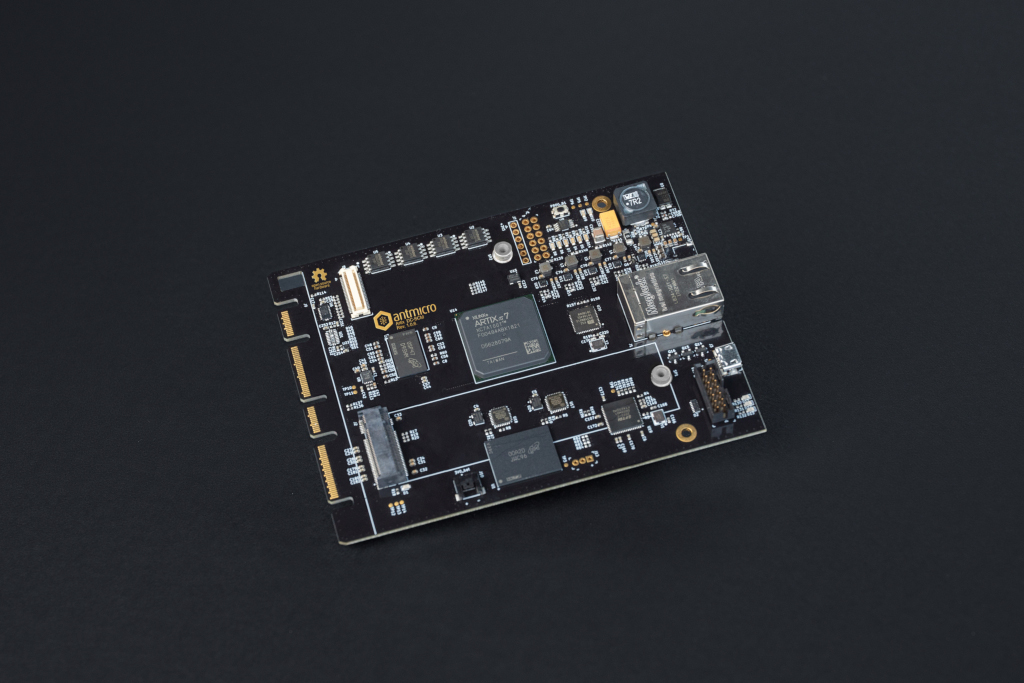

About the Artix dc scm PCB

Artix dc scm is an open source FPGA PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 121 components from 31 distinct parts.

Its main chip is the XC7A100T-FGG484, from the FPGA family. Other key parts include the MTFC16GAPALNA-AIT, NVT2008BQ,115, USB3300-EZK-TR, FT4232HQ-TRAY and LSF0101DRYR. By type, the board carries 66 capacitors, 38 resistors, 9 ICs, 3 connectors, 2 diodes and 2 inductors.

From the project

Experimental Xilinx Artix-7 driven Data Center Security Communication Module

This repository contains design files for an open-source Baseboard Management Controller (BMC) module based on the Xilinx Artix-7 FPGA family, designed in accordance with the Data Center Secure Control Module (DC-SCM) specification of Open Compute Project (OCP).

The design files were prepared in KiCad 9.x.

The main repository directory contains KiCad PCB project files, a LICENSE and README. The remaining files are stored in the following directories:

Main components on the Artix dc scm

MTFC16GAPALNA-AITNVT2008BQ,115XC7A100T-FGG484USB3300-EZK-TRFT4232HQ-TRAYLSF0101DRYRASEMB-24.000MHZ-LC-T

Artix dc scm bill of materials (BOM)

121 components, 31 distinct parts.

QtyPartRefs
1
MTFC16GAPALNA-AIT
Micron Technology
U1
1
NVT2008BQ,115
NXP
U6
1
XC7A100T-FGG484
AMD-Xilinx
U14
2
USB3300-EZK-TR
Microchip Technology
U17, U18
1
FT4232HQ-TRAY
FT4232H_QFN
FTDI Chip
U19
1
LSF0101DRYR
Texas Instruments
U22
2
ASEMB-24.000MHZ-LC-T
Oscillator_24MHz_ASEMB
Abracon
U23, U24
1
ABM8G-12.000MHZ-18-D2Y-T
Resonator_12MHz_ABM8G
Abracon
Y1
1
10118192-0001LF
USB-Micro-B_Amphenol_10118192-0001LF
Amphenol
J3
1
878311420
PinHeader_2x7_P2mm_Drill0.9mm_878311420
Molex
J6
1
61300611121
PinHeader_1x6_P2.54mm_Drill1.1mm
Würth Elektronik
J7
1
SP3011-06UTG
Littelfuse
D2
1
TPD2E009DRTR
TPD2E009_SOT-9X3
Texas Instruments
D15
2
BLM15AG601SN1D
FB_600Z_0.3A_Murata-BLM15AG_0402
Murata
FB1, FB2
31
GRM155R61H104KE14D
C_100n_0402
Murata
C4, C5, C6, C7, C10, C11, C12, C13 +23
18
0402X104K6R3CT
C_100n_6V3_0402
Walsin
C17, C39, C134, C136, C186, C187, C189, C192 +10
9
GRM155R61A475MEAAD
C_4u7_0402
Murata
C23, C154, C162, C177, C188, C222, C245, C246 +1
3
C1608X5R1V475M080AC
C_4u7_0603
TDK
C45, C190, C191
2
CL05C180JB51PNC
C_18p_0402
Samsung Electro-Mechanics
C166, C168
3
C1005X5R1A225K050BC
C_2u2_0402
TDK
C183, C184, C185
Show 11 more
QtyPartRefs
1
CR0402-FX-1212GLF
R_12k1_0402
Bourns
R3
1
CR0402-FX-1002GLF
R_10k_0402
Bourns
R4
2
CR0402-FX-1202GLF
R_12k_0402
Bourns
R5, R7
2
CR0402-FX-1001GLF
R_1k_0402
Bourns
R6, R8
7
CR0402-FX-22R0GLF
R_22R_0402
Bourns
R9, R160, R191, R192, R193, R195, R196
2
ERJ2GE0R00X
R_0R_0402
Panasonic
R10, R11
3
CR0402-FX-2003GLF
R_200k_0402
Bourns
R12, R53, R62
8
CR0402-FX-3573GLF
R_357k_0402
Bourns
R45, R46, R47, R48, R49, R50, R51, R52
10
CR0402-FX-4702GLF
R_47k_0402
Bourns
R117, R118, R119, R120, R121, R122, R123, R124 +2
1
CR0402-FX-1000GLF
R_100R_0402
Bourns
R143
1
CR0402-FX-4701GLF
R_4k7_0402
Bourns
R197

Artix dc scm design files

The KiCad project lives in the antmicro/artix-dc-scm repository on GitHub; these links point at the commit this page was built from.

Artix dc scm: common questions

What microcontroller does the Artix dc scm use?

The Artix dc scm is built around the XC7A100T-FGG484, from the FPGA family.

How many components are on the Artix dc scm?

121 components, from 31 distinct parts. The full bill of materials is listed on this page.

Where can I download the Artix dc scm design files?

From the antmicro/artix-dc-scm repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Artix dc scm design in my own project?

Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.

Can I test firmware for the Artix dc scm without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
