Dc scm osm l carrier card

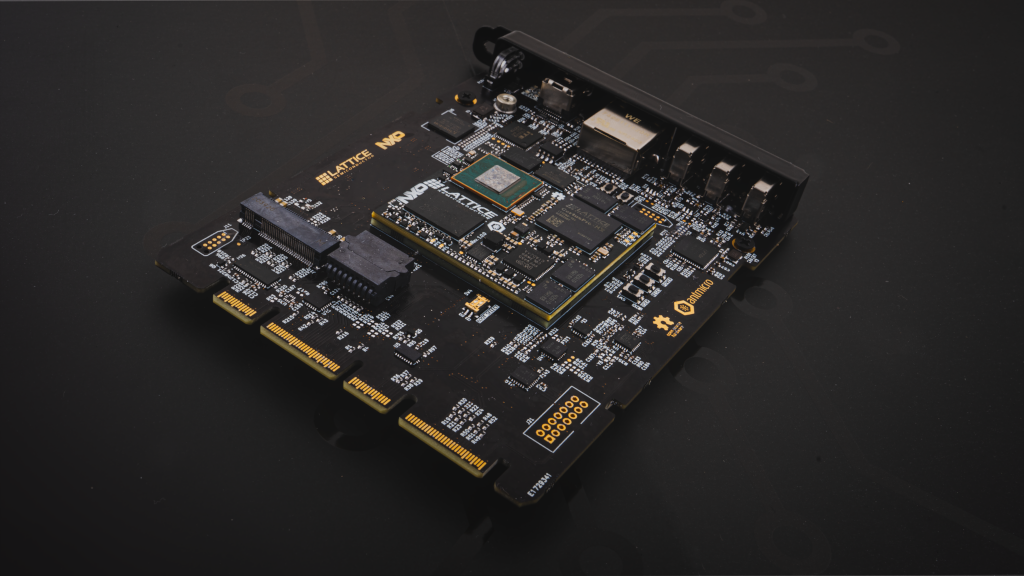

About the Dc scm osm l carrier card PCB

Dc scm osm l carrier card is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 26 components from 12 distinct parts.

Other key parts include the OSM-L_Carrier-side and 74AUP2G132. By type, the board carries 7 resistors, 6 switches, 6 capacitors, 4 diodes and 3 ICs.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

DC-SCM Card supporting OSM-L System on Modules

This project includes open hardware design files for a DC-SCM compliant PCB that supports System on Modules following the OSM-L standard specified by the SGet group. The DC-SCM follows the interface and mechanical outline described in the 2.1 revision of the DC-SCM standard specified by the Open Compute Project community. Apart from establishing a base DC-SCM compliant platform, the design includes a series of breakout connectors, jumpers and other supplementary circuitry for developing BMC software features for security, reliability, commissioning and benchmarking.

Main components on the Dc scm osm l carrier card

OSM-L_Carrier-side 74AUP2G132

Dc scm osm l carrier card bill of materials (BOM)

26 components, 12 distinct parts.

Qty	Part	Footprint	Refs
1	OSM-L_Carrier-side	OSM-L_Carrier-side	U1
2	74AUP2G132 Nexperia	VSSOP-8_2.3x2mm_P0.5mm	U2, U3
5	KMR211NGLFS SW_KMR211NGLFS_SMD C&K	SW_KMR211NGLFS_SMD	SW1, SW2, SW3, SW5, SW6
1	CVS-02B SW_CVS-02B Nidec Components	SW_DIP_SPSTx02_Slide_Copal_CVS-02xB_W5.9mm_P1mm	SW4
2	RB521S30T1G ON Semiconductor	SOD-523	D1, D20
2	TPD1E0B04DPYR TPD1E0B04_XDFN-2 Texas Instruments	XDFN-2_1x0.60mm	D21, D23
2	CL05A104KA5NNNC C_100n_25V_0402 Samsung Electro-Mechanics	C_0402_1005Metric	C1, C4
2	C1005X6S1A105K050BC C_1u_0402 TDK	C_0402_1005Metric	C2, C3
2	GRM155R61H104KE14D C_100n_0402 Murata	C_0402_1005Metric	C188, C189
4	CR0402-FX-1002GLF R_10k_0402 Bourns	R_0402_1005Metric	R55, R57, R60, R357
1	CR0402-FX-1003GLF R_100k_0402 Bourns	R_0402_1005Metric	R56
2	CR0402-FX-2200GLF R_220R_0402 Bourns	R_0402_1005Metric	R59, R356

Dc scm osm l carrier card design files

The KiCad project lives in the antmicro/dc-scm-osm-l-carrier-card repository on GitHub; these links point at the commit this page was built from.

Schematicosm-l.kicad_sch

Dc scm osm l carrier card: common questions

How many components are on the Dc scm osm l carrier card?

26 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Dc scm osm l carrier card design files?

From the antmicro/dc-scm-osm-l-carrier-card repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Dc scm osm l carrier card design in my own project?

Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
