Gmsl deserializer
About the Gmsl deserializer PCB
Gmsl deserializer is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 75 × 60 mm, with 225 components from 55 distinct parts.
Other key parts include the SN74LV1T125DBVR, LMR62014XMF/NOPB, AP62301WU-7, AP22615AWU-7 and MAX96724GTN/VY+. By type, the board carries 72 resistors, 60 capacitors, 28 test points, 20 diodes, 19 inductors and 8 ICs.
From the project
GMSL2 deserializer with MIPI CSI-2 output

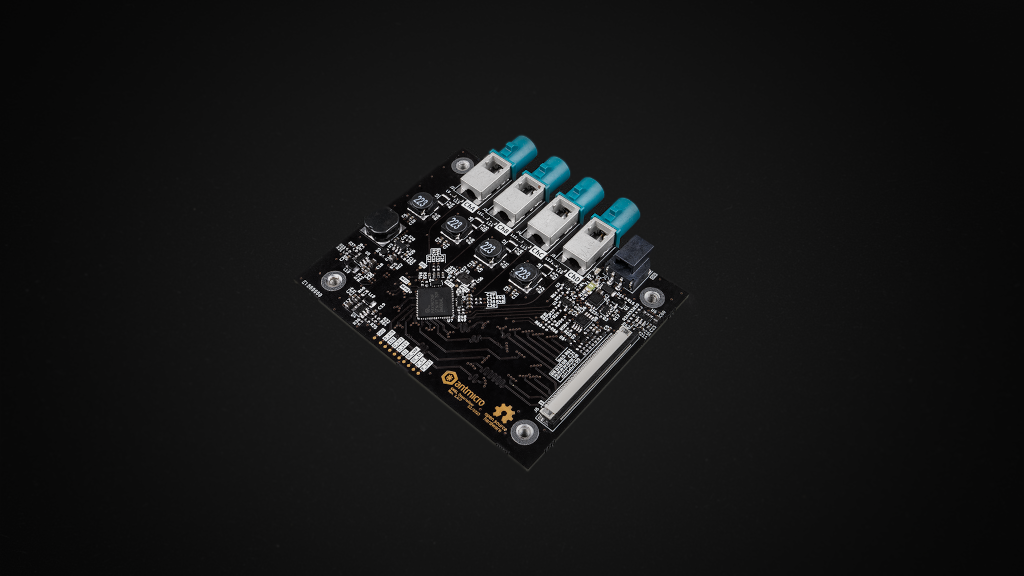

This project contains open hardware design files for the Antmicro GMSL Deserializer Board, capable of translating up to 4 GMSL signals into 2x 4-lane MIPI CSI-2 interfaces. The board is designed to connect to a baseboard, e.g. Jetson Orin Baseboard, via a 50-pin Antmicro Dual Camera interface.
The design files were prepared in KiCad 8.
Four GMSL2 ports PoC circuit for providing up to 12W per GMSL line, over coaxial cable MIPI CSI-2 interface on a 50-pin Antmicro Dual Camera connector DC Power connector
Main components on the Gmsl deserializer
Gmsl deserializer bill of materials (BOM)
225 components, 55 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SN74LV1T125DBVR Texas Instruments | SOT-23-5 | U1, U2 |
| 1 | LMR62014XMF/NOPB LMR62014XMF Texas Instruments | SOT-23-5 | U3 |
| 2 | AP62301WU-7 AP62301_TSOT Diodes Incorporated | TSOT23-6 | U4, U5 |
| 1 | AP22615AWU-7 AP22615A_TSOT26 Diodes Incorporated | TSOT23-6 | U6 |
| 1 | MAX96724GTN/VY+ MAX96724GTN_VY+ Analog Devices | QFN-56-1EP_8x8mm_P0.5mm_EP4.8x4.8mm | U7 |
| 1 | NTS0102DP NTS0102_TSSOP NXP | TSSOP-8_3x3mm_P0.65mm | U8 |
| 1 | BSS138AKA ON Semiconductor | SOT-23-3 | Q1 |
| 1 | SQS401EN-T1_BE3 Vishay | Vishay_PowerPAK_1212-8_Single | Q2 |
| 1 | DZDH0401DW Diodes Incorporated | SOT-363 | Q3 |
| 3 | DMG1012T-7 Diodes Incorporated | SOT-523 | Q4, Q5, Q6 |
| 1 | ABM8G-25.000MHZ-18-D2Y-T3 Resonator_25MHz_ABM8G Abracon | Resonator_SMD_Abracon_ABM8G_3.2x2.5mm | Y1 |
| 1 | 105430-1202 Molex_Nano-Fit_1x2_SMD_1054301202 Molex | Conn_Molex_Nano-Fit_1x2_SMD_1054301202 | J1 |
| 4 | 7-2287906-0 Conn_FAKRA_59S2AQ-40MT5-Z_1 TE Connectivity | Conn_FAKRA_7-2287906-0 | J2, J3, J4, J5 |
| 1 | 68715014522 Conn_FFC_WE_68715014522 Würth Elektronik | Conn_FFC_WE_68715014x22 | J6 |
| 1 | 0466004.NR F_4A_1206 Littelfuse | F_1206_3216Metric | F1 |
| 4 | 9774060151R Spacer_Drill3.7mm_H6mm_9774060151R Würth Elektronik | Spacer_Drill3.7mm_H6mm_9774060151R | H1, H2, H3, H4 |
| 28 | TP_0.75mm_SMD | TP_SMD_0.75mm | TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8 +20 |
| 1 | SMF4L15A Littelfuse | SOD-123FL | D1 |
| 10 | LTST-C190GKT LED_G_0603_LTST-C190GKT Lite-On | LED_0603_1608Metric_G | D2, D12, D13, D14, D15, D16, D17, D18 +2 |
| 1 | PMEG3010CEJ,115 Nexperia | D_SOD-323F | D3 |
Show 35 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | PESD4USB5U-TTS Nexperia | DFN-10_2.5x1mm | D4, D5 |
| 6 | ESD5B5.0ST1G ESD5B5_0ST1G ON Semiconductor | SOD-523_NP | D6, D7, D8, D9, D10, D11 |
| 4 | MSS6132T-223 L_22u_1.12A_Coilcraft-MSS6132T Coilcraft | L_Coilcraft-MSS6132T | L1, L2, L3, L4 |
| 4 | 1210POC-682 L_6u8_1A_Coilcraft-1210POC Coilcraft | L_Coilcraft-1210POC | L5, L6, L7, L8 |
| 8 | PFL1609-471 L_470n_1A_Coilcraft-PFL1609 Coilcraft | L_Coilcraft-PFL1609 | L9, L10, L11, L12, L13, L14, L15, L16 |
| 1 | SRN8040-100M L_10u_3.1A_Bourns-SRN8040 Bourns | L_Bourns-SRN8040 | L17 |
| 2 | SRP2010-1R0M L_1u_2.6A_0806 Bourns | L_0806_2016Metric | L18, L19 |
| 5 | C1608X5R1E106M080AC C_10u_25V_0603 TDK | C_0603_1608Metric | C1, C16, C17, C18, C60 |
| 28 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C2, C3, C4, C6, C7, C8, C9, C19 +20 |
| 3 | C1005X6S1A105K050BC C_1u_0402 TDK | C_0402_1005Metric | C5, C58, C59 |
| 10 | GRM155R71H103KA88D C_10n_0402 Murata | C_0402_1005Metric | C10, C11, C12, C13, C42, C43, C48, C49 +2 |
| 1 | C1005X5R1A225K050BC C_2u2_0402 TDK | C_0402_1005Metric | C14 |
| 1 | 04025C221JAT2A C_220p_0402 KYOCERA AVX | C_0402_1005Metric | C15 |
| 4 | GRM158R60J226ME01D C_22u_0402 Murata | C_0402_1005Metric | C21, C22, C24, C25 |
| 6 | CC0402MRX5R5BB106 C_10u_0402 YAGEO | C_0402_1005Metric | C36, C37, C38, C44, C54, C55 |
| 2 | 04025A330FAT2A C_33p_0402 KYOCERA AVX | C_0402_1005Metric | C56, C57 |
| 15 | CR0402-FX-1002GLF R_10k_0402 Bourns | R_0402_1005Metric | R1, R4, R16, R31, R32, R33, R36, R38 +7 |
| 10 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R2, R3, R5, R6, R28, R47, R52, R53 +2 |
| 6 | CR0402-FX-4700GLF R_470R_0402 Bourns | R_0402_1005Metric | R7, R71, R77, R80, R81, R82 |
| 9 | CR0402-FX-1000GLF R_100R_0402 Bourns | R_0402_1005Metric | R9, R10, R11, R12, R13, R14, R15, R66 +1 |
| 3 | CR0402-FX-1003GLF R_100k_0402 Bourns | R_0402_1005Metric | R17, R72, R74 |
| 8 | CR0402-FX-5101GLF R_5k1_0402 Bourns | R_0402_1005Metric | R19, R20, R21, R22, R24, R25, R26, R27 |
| 1 | CR0402-FX-1004GLF R_1M_0402 Bourns | R_0402_1005Metric | R23 |
| 1 | CR0402-FX-1372GLF R_13k7_0402 Bourns | R_0402_1005Metric | R29 |
| 1 | CR0402-FX-1203GLF R_120k_0402 Bourns | R_0402_1005Metric | R30 |
| 1 | CR0402-FX-1242GLF R_12k4_0402 Bourns | R_0402_1005Metric | R35 |
| 1 | CR0402-FX-4991GLF R_4k99_0402 Bourns | R_0402_1005Metric | R37 |
| 3 | PMR03EZPJ000 R_0R_22.4A_0603 ROHM Semiconductor | R_0603_1608Metric | R40, R41, R62 |
| 1 | CR0402-FX-6801GLF R_6k8_0402 Bourns | R_0402_1005Metric | R42 |
| 4 | CR0402-FX-49R9GLF R_49R9_0402 Bourns | R_0402_1005Metric | R43, R44, R45, R46 |
| 1 | CR0402-FX-4020GLF R_402R_0402 Bourns | R_0402_1005Metric | R54 |
| 2 | CR0402-FX-2201GLF R_2k2_0402 Bourns | R_0402_1005Metric | R58, R59 |
| 1 | CR0402-FX-2000GLF R_200R_0402 Bourns | R_0402_1005Metric | R70 |
| 1 | CR0402-FX-4022GLF R_40k2_0402 Bourns | R_0402_1005Metric | R73 |
| 3 | RC0402FR-071K65L R_1k65_0402 YAGEO | R_0402_1005Metric | R75, R76, R78 |
Gmsl deserializer design files
The KiCad project lives in the antmicro/gmsl-deserializer repository on GitHub; these links point at the commit this page was built from.
- Layoutgmsl-deserializer.kicad_pcb
- Schematicgmsl-deserializer.kicad_sch
Gmsl deserializer: common questions
How big is the Gmsl deserializer PCB?
The Gmsl deserializer measures 75 × 60 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Gmsl deserializer?
225 components, from 55 distinct parts. The full bill of materials is listed on this page.
Where can I download the Gmsl deserializer design files?
From the antmicro/gmsl-deserializer repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Gmsl deserializer design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
