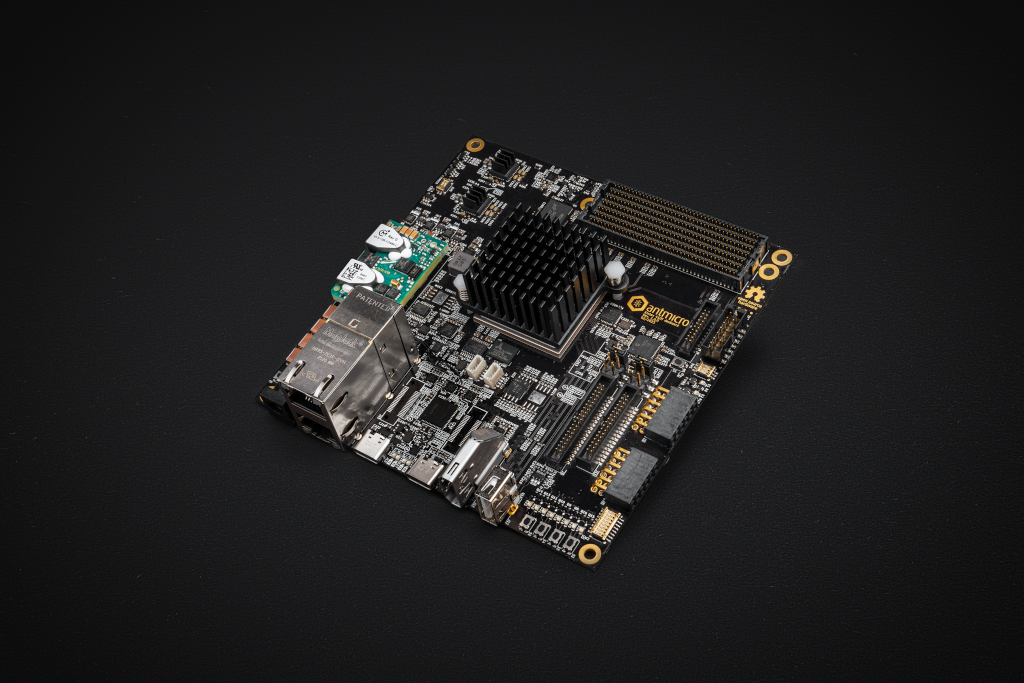

Kintex-410t devboard
Simulate this board

About the Kintex-410t devboard PCB

Kintex-410t devboard is an open source FPGA PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 104 components from 8 distinct parts.

Its main chip is the XC7K410T-2FFG900I, from the FPGA family. By type, the board carries 100 capacitors, 2 connectors, 1 IC and 1 resistor.

It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

This repository contains open hardware design files for a devkit created for AMD-Xilinx Kintex-7 K410T FPGA.

This repository contains open hardware design files for a devkit created for AMD-Xilinx Kintex-7 K410T FPGA.

This development board routes the I/O interfaces from the SoM and provides the necessary power buses. The design files were prepared in KiCad 7.

The main repository directory contains KiCad PCB project files, a LICENSE, and a README. The remaining files are stored in the following directories:

Main components on the Kintex-410t devboard

XC7K410T-2FFG900I

Kintex-410t devboard bill of materials (BOM)

104 components, 8 distinct parts.

QtyPartRefs
1
XC7K410T-2FFG900I
AMD-Xilinx
U1
2
15910060
PinHeader_2x3_P2.54mm_SMD
Molex
J19, J20
4
T520B337M006ATE040
C_Pol_330u_6.3V_KEMET-T520-B
KEMET
C1, C125, C130, C133
18
GRM035R60J475ME15D
C_4u7_0201
Murata
C8, C9, C22, C28, C34, C45, C48, C50 +10
18
GRM188R60J476ME15D
C_47u_0603
Murata
C46, C49, C51, C54, C112, C120, C376, C377 +10
26
GRM155R61H104KE14D
C_100n_0402
Murata
C53, C55, C58, C59, C63, C64, C72, C73 +18
34
CC0201KRX6S5BB104
C_100n_0201
YAGEO
C56, C60, C65, C74, C97, C104, C115, C122 +26
1
CR0402-FX-1000GLF
R_100R_0402
Bourns
R1

Kintex-410t devboard design files

The KiCad project lives in the antmicro/kintex-410t-devboard repository on GitHub; these links point at the commit this page was built from.

Kintex-410t devboard: common questions

What microcontroller does the Kintex-410t devboard use?

The Kintex-410t devboard is built around the XC7K410T-2FFG900I, from the FPGA family.

How many components are on the Kintex-410t devboard?

104 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kintex-410t devboard design files?

From the antmicro/kintex-410t-devboard repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Kintex-410t devboard design in my own project?

Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.

Can I test firmware for the Kintex-410t devboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
