Mec1723-espi debugger

antmicro·mec1723-espi-debugger

Mec1723-espi debugger PCB layout, top view — open source board by antmicro

About the Mec1723-espi debugger PCB

Mec1723-espi debugger is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a 8-layer board measuring 62 × 87 mm, with 204 components from 46 distinct parts.

Other key parts include the MEC1723N-B0-I/SZ, TLV76701DRVT, TPS566231PRQFR, MT25QU01GBBB8ESF-0SIT and SN74AC7541RKSR. By type, the board carries 108 resistors, 49 capacitors, 16 diodes, 13 connectors, 7 ICs and 3 switches.

It belongs with the usb & debug tools designs in this gallery.

From the project

eSPI protocol decoding accessory

This project contains open hardware design files for a debug board based on Microchip MEC1723 embedded controller which includes ARM Cortex-M4 core and eSPI physical interface. The board is designed to aid development, bring-up and integration of eSPI-based data link between servers (HPMs) and Data Center Secure Control Modules (DC-SCMs). The board has a 0.1 inch pin header connector which allows to connect it to the eSPI bus in the system under development. The board provides USB-accessible UART and JTAG interfaces, Port 80 status display and local flash storage for the MEC1723 firmware.…

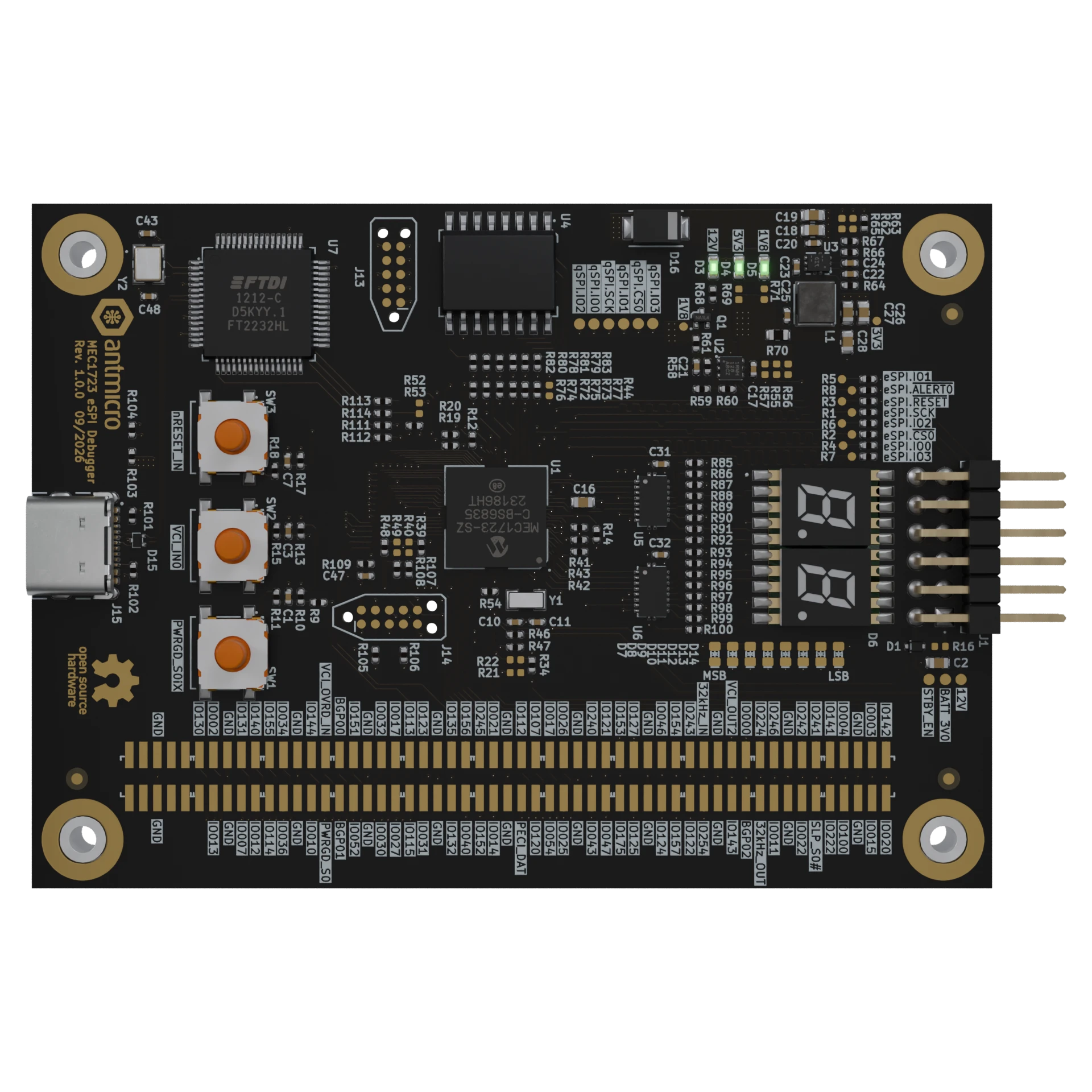

Mec1723-espi debugger, from the project README
From the project README

Main components on the Mec1723-espi debugger

MEC1723N-B0-I/SZTLV76701DRVTTPS566231PRQFRMT25QU01GBBB8ESF-0SITSN74AC7541RKSRFT2232HL-REEL

Mec1723-espi debugger bill of materials (BOM)

204 components, 46 distinct parts.

QtyPartRefs
1
MEC1723N-B0-I/SZ
Microchip Technology
U1
1
TLV76701DRVT
TLV76701_WSON
Texas Instruments
U2
1
TPS566231PRQFR
TPS566231P
Texas Instruments
U3
1
MT25QU01GBBB8ESF-0SIT
MT25QU01GBBB8_SOIC
Micron Technology
U4
2
SN74AC7541RKSR
SN74AC7541_VQFN
Texas Instruments
U5, U6
1
FT2232HL-REEL
FTDI Chip
U7
1
DMG1012T-7
Diodes Incorporated
Q1
1
ECS-.327-12.5-34B-TR
Resonator_32.768kHz_ECX-31B
ECS Inc. International
Y1
1
12.88662
Resonator_12MHz_KX-7
Geyer Electronic
Y2
1
TSW-106-08-G-D-RA
PinHeader_2x6_P2.54mm_Drill1.1mm_Horizontal
Samtec
J1
11
FTSH-105-01-F-DV
PinHeader_2x5_P1.27mm_SMD
Samtec
J2, J3, J4, J5, J6, J7, J8, J9 +3
1
USB4105-GF-A
USB-C_GCT_USB4105-GF-A
GCT
J15
4
9774060360R
Spacer_Drill4.4mm_H6mm_9774060360R
Würth Elektronik
H1, H2, H3, H4
3
KSC441J70SHLFS
SW_KSC441J70SHLFS_SMD
C&K
SW1, SW2, SW3
2
BAT54-02V-G3-08
Vishay
D1, D2
11
LTST-C190GKT
LED_G_0603_LTST-C190GKT
Lite-On
D3, D4, D5, D7, D8, D9, D10, D11 +3
1
ACDA02-41SURKWA-F01
Kingbright
D6
1
TPD2E009DRTR
TPD2E009_SOT-9X3
Texas Instruments
D15
1
B340A-13-F
Diodes Incorporated
D16
1
74479335329222
L_2u2_5.8A_WE-PMFI-35329222
Würth Elektronik
L1
Show 26 more
QtyPartRefs
3
GRT155C80J105KE01D
C_1u_6.3V_X6S_0402
Murata
C1, C3, C7
3
0603YD105KAT2A
C_1u_0603
KYOCERA AVX
C2, C4, C16
13
GRM155R61H104KE14D
C_100n_0402
Murata
C5, C9, C12, C13, C14, C15, C20, C23 +5
13
C0402C104J4RAC7411
C_100n_16V_X7R_0402
KEMET
C6, C8, C33, C34, C35, C36, C37, C39 +5
2
CC0402JRNPO9BN220
C_22p_0402
YAGEO
C10, C11
2
GRM155R61A106ME11D
C_10u_10V_0402
Murata
C17, C21
5
CL10A226MO7JZNC
C_22u_16V_0603
Samsung Electro-Mechanics
C18, C19, C26, C27, C28
1
GRM155R61E105KE11J
C_1u_25V_0402
Murata
C22
1
04025A330FAT2A
C_33p_0402
KYOCERA AVX
C24
3
GRM155D71A475ME15D
C_4u7_10V_X7T_0402
Murata
C38, C42, C44
2
CL05C180JB51PNC
C_18p_0402
Samsung Electro-Mechanics
C43, C48
1
C1005X6S1A105K050BC
C_1u_0402
TDK
C47
28
ERJ2GE0R00X
R_0R_0402
Panasonic
R1, R2, R3, R4, R5, R6, R7, R8 +20
28
CR0402-FX-1002GLF
R_10k_0402
Bourns
R10, R13, R17, R39, R40, R45, R48, R49 +20
3
CR0402-FX-1000GLF
R_100R_0402
Bourns
R11, R15, R18
4
CR0402-FX-1001GLF
R_1k_0402
Bourns
R16, R44, R69, R71
14
CR0402-FX-4701GLF
R_4k7_0402
Bourns
R25, R26, R27, R28, R29, R30, R31, R32 +6
7
CR0402-FX-1003GLF
R_100k_0402
Bourns
R46, R47, R54, R58, R59, R64, R109
1
CR0402-FX-1603GLF
R_160k_0402
Bourns
R60
1
RT0805BRD07135KL
R_135k_0402
YAGEO
R66
1
CR0402-FX-3002GLF
R_30k_0402
Bourns
R67
1
PMR03EZPJ000
R_0R_22.4A_0603
ROHM Semiconductor
R70
16
CR0402-FX-2000GLF
R_200R_0402
Bourns
R85, R86, R87, R88, R89, R90, R91, R92 +8
2
CR0402-FX-5101GLF
R_5k1_0402
Bourns
R101, R102
1
CR0402-FX-1502GLF
R_15k_0402
Bourns
R104
1
CR0402-FX-1202GLF
R_12k_0402
Bourns
R110

Mec1723-espi debugger design files

The KiCad project lives in the antmicro/mec1723-espi-debugger repository on GitHub; these links point at the commit this page was built from.

Mec1723-espi debugger: common questions

How big is the Mec1723-espi debugger PCB?

The Mec1723-espi debugger measures 62 × 87 mm, has 8 copper layers and is 1.484 mm thick.

How many components are on the Mec1723-espi debugger?

204 components, from 46 distinct parts. The full bill of materials is listed on this page.

Where can I download the Mec1723-espi debugger design files?

From the antmicro/mec1723-espi-debugger repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Mec1723-espi debugger design in my own project?

Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
