Modular agilex5e dc scm
About the Modular agilex5e dc scm PCB
Modular agilex5e dc scm is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 135 components from 36 distinct parts.
Other key parts include the AP22615BWU-7, FUSB303B, TPD4E05U06QDQARQ1, HD3SS3220RNHT and 74LVC06ABQ. By type, the board carries 59 resistors, 38 capacitors, 17 ICs, 15 diodes, 3 connectors and 1 transistor.
From the project

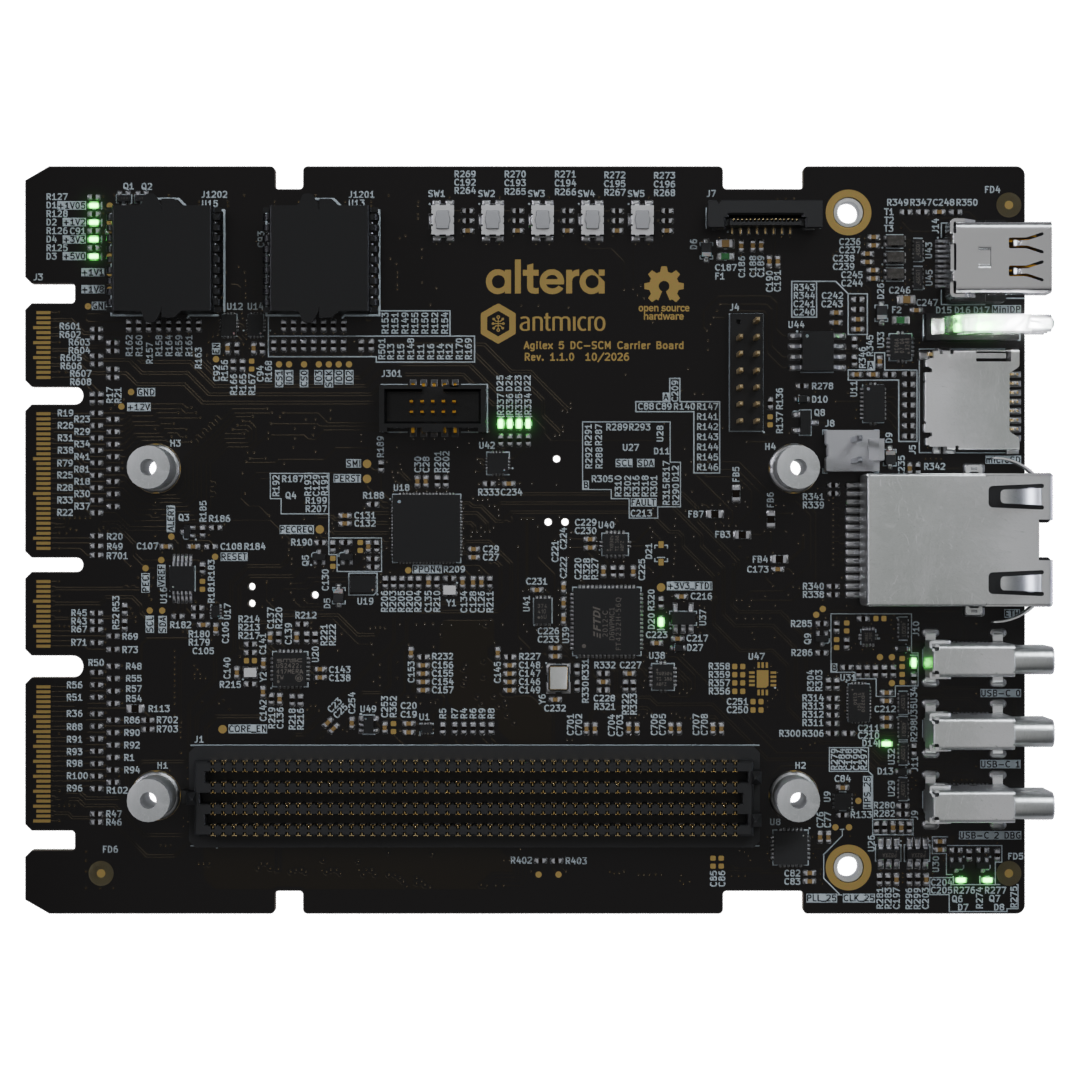

This repository contains design files for a DC-SCM compliant Agilex 5 Modular DC-SCM Carrier Board that supports the Critical Link MitySOM-A5E Mini System on Module based on the Altera Agilex 5E SoC family. The board follows the interface and mechanical outline described in the 2
This repository contains design files for a DC-SCM compliant Agilex 5 Modular DC-SCM Carrier Board that supports the Critical Link MitySOM-A5E Mini System on Module based on the Altera Agilex 5E SoC family. The board follows the interface and mechanical outline described in the 2.1 revision of the DC-SCM standard specified by the Open Compute Project community.
Main components on the Modular agilex5e dc scm
Modular agilex5e dc scm bill of materials (BOM)
135 components, 36 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | AP22615BWU-7 AP22615B_TSOT26 Diodes Incorporated | TSOT23-6 | U26, U30 |
| 1 | FUSB303B Onsemi | Texas_X2QFN-12_1.6x1.6mm_P0.4mm | U27 |
| 5 | TPD4E05U06QDQARQ1 Texas Instruments | USON-10_2.5x1mm_P0.5mm | U28, U29, U32, U34, U35 |
| 1 | HD3SS3220RNHT HD3SS3220RNH Texas Instruments | WQFN-30-1EP_4.6x2.6mm_P0.4mm | U31 |
| 1 | 74LVC06ABQ Nexperia | DHVQFN-14-1EP_2.5x3mm | U33 |
| 1 | 74AUP2G132 Nexperia | VSSOP-8_2.3x2mm_P0.5mm | U36 |
| 1 | NCP718BSN330T1G ON Semiconductor | SOT-23-5 | U37 |
| 2 | TXU0304BQAR Texas Instruments | DHVQFN-14-1EP_2.5x3mm | U38, U40 |
| 1 | FT4232H-56Q-REEL FT4232H_VQFN FTDI Chip | QFN-56-1EP_8x8mm_P0.5mm | U39 |
| 1 | 93LC66BT-I/MC 93LC66BT_DFN Microchip Technology | DFN-8-1EP_3x2mm_P0.5mm_EP1.36x1.46mm | U41 |
| 1 | SN74HC595BRWNR SN74HC595B Texas Instruments | X1QFN-16-1EP_2.5x2.5mm | U42 |
| 1 | PJE138K_R1_00001 PJE138K PANJIT | SOT-523 | Q9 |
| 1 | ABM8G-12.000MHZ-18-D2Y-T Resonator_12MHz_ABM8G Abracon | Resonator_SMD_Abracon_ABM8G_3.2x2.5mm | Y6 |
| 3 | KUSBX-SL2-CS1N24-B-TR USB-C_Kycon_KUSBX-SL2-CS1N24-B-TR Kycon | USB-C_Receptacle_Kycon_KUSBX-SL2-CS1N24-B-TR | J9, J10, J11 |
| 1 | 1296.2013 Lightpipe_Mentor_1296.2013 Mentor Worldwide | Mech_Lightpipe_Mentor_1296.2013 | H5 |
| 3 | PESD5V0X1UB,135 PESD5V0X1UB Nexperia | SOD-523 | D11, D13, D27 |
| 10 | VLMTG1500-GS08 LED_G_0402_VLMTG1500-GS08 Vishay | LED_0402_1005Metric_G | D12, D14, D15, D16, D17, D20, D22, D23 +2 |
| 2 | PMEG3010CEJ,115 Nexperia | D_SOD-323F | D18, D21 |
| 21 | GRM155R61E105KE11J C_1u_25V_0402 Murata | C_0402_1005Metric | C197, C200, C203, C207, C208, C209, C215, C216 +13 |
| 6 | GRM155R61A475MEAAD C_4u7_0402 Murata | C_0402_1005Metric | C198, C199, C204, C205, C227, C228 |
Show 16 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C201, C202, C210, C211, C212, C213, C214, C234 |
| 1 | GRM188R61A106KE69D C_10u_0603 Murata | C_0603_1608Metric | C206 |
| 2 | 04025A330FAT2A C_33p_0402 KYOCERA AVX | C_0402_1005Metric | C232, C233 |
| 15 | CR0402-FX-1002GLF R_10k_0402 Bourns | R_0402_1005Metric | R279, R281, R286, R287, R288, R291, R292, R296 +7 |
| 2 | CR0402-FX-5101GLF R_5k1_0402 Bourns | R_0402_1005Metric | R280, R282 |
| 2 | CR0402-FX-4701GLF R_4k7_0402 Bourns | R_0402_1005Metric | R283, R299 |
| 12 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R284, R306, R310, R311, R312, R313, R314, R315 +4 |
| 1 | CR0402-FX-1003GLF R_100k_0402 Bourns | R_0402_1005Metric | R285 |
| 4 | ERJ-2RKF8873X R_887k_0402 Panasonic | R_0402_1005Metric | R289, R293, R304, R331 |
| 8 | CR0402-FX-1001GLF R_1k_0402 Bourns | R_0402_1005Metric | R290, R298, R320, R323, R334, R335, R336, R337 |
| 6 | CR0402-FX-3300GLF R_330R_0402 Bourns | R_0402_1005Metric | R294, R295, R307, R308, R309, R319 |
| 4 | CR0402-FX-2003GLF R_200k_0402 Bourns | R_0402_1005Metric | R300, R302, R316, R318 |
| 1 | CR0402-FX-4993GLF R_499k_0402 Bourns | R_0402_1005Metric | R305 |
| 2 | CR0402-FX-33R0GLF R_33R_0402 Bourns | R_0402_1005Metric | R327, R328 |
| 1 | CR0402-FX-2491GLF R_2k49_0402 Bourns | R_0402_1005Metric | R329 |
| 1 | CR0402-FX-1202GLF R_12k_0402 Bourns | R_0402_1005Metric | R332 |
Modular agilex5e dc scm design files
The KiCad project lives in the antmicro/modular-agilex5e-dc-scm repository on GitHub; these links point at the commit this page was built from.
- Schematicfront-panel-usb.kicad_sch
Modular agilex5e dc scm: common questions
How many components are on the Modular agilex5e dc scm?
135 components, from 36 distinct parts. The full bill of materials is listed on this page.
Where can I download the Modular agilex5e dc scm design files?
From the antmicro/modular-agilex5e-dc-scm repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Modular agilex5e dc scm design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
