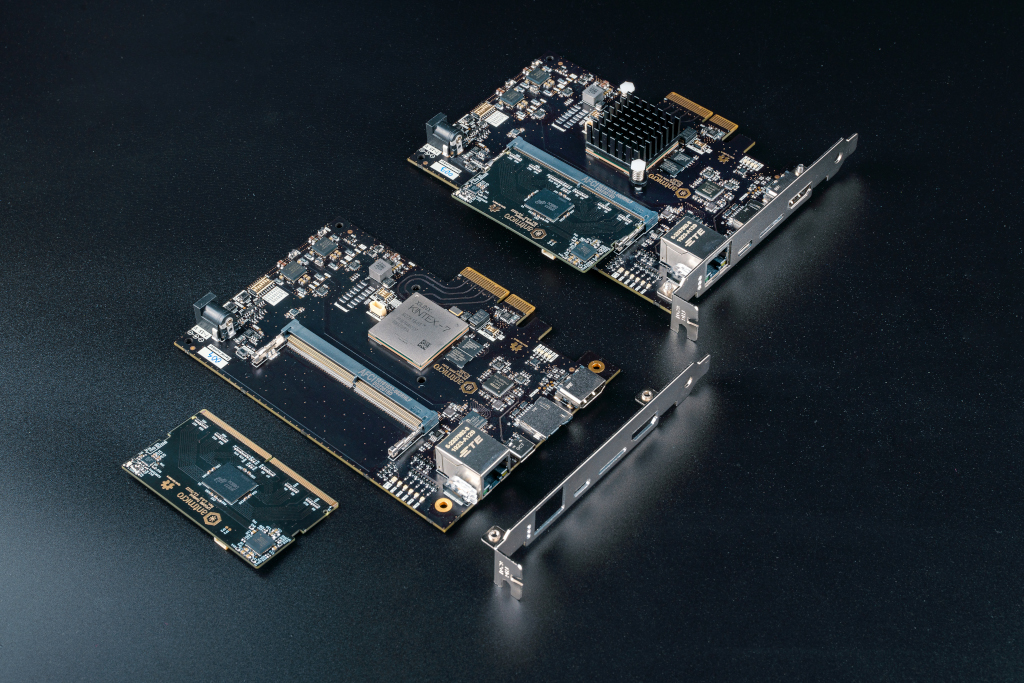

Sodimm ddr5-tester
About the Sodimm ddr5-tester PCB
Sodimm ddr5-tester is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 157 components from 38 distinct parts.
Other key parts include the LTC4412IS6#TRMPBF, MPM54304GMN-0000, NCP718BSN330T1G, MAX16150AUT+T and PAC1954T-E/4MX. By type, the board carries 51 capacitors, 40 resistors, 39 test points, 13 ICs, 6 transistors and 2 connectors.
It belongs with the usb & debug tools designs in this gallery.
From the project
FPGA-driven memory tester for SO-DIMM DDR5 memory sticks
This project contains open hardware KiCad design files for an experimental platform built around the Xilinx Kintex-7 FPGA, which can be used to interface with SO-DIMM DDR5 RAM modules. It is also possible to use the platform with single LPDDR5 memories by using custom adapters named LPDDR5 testbeds.
The SO-DIMM DDR5 Tester can be used with the open source Rowhammer Tester suite.
Main components on the Sodimm ddr5-tester
Sodimm ddr5-tester bill of materials (BOM)
157 components, 38 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LTC4412IS6#TRMPBF LTC4412IS6 Analog Devices | SOT-23-6 | U17, U18 |
| 2 | MPM54304GMN-0000 MPM54304GMN Monolithic Power Systems | LGA-33_7x7mm_P0.65mm | U19, U20 |
| 1 | NCP718BSN330T1G ON Semiconductor | SOT-23-5 | U21 |
| 1 | MAX16150AUT+T MAX16150A_SOT Maxim Integrated Products | SOT-23-6 | U22 |
| 2 | PAC1954T-E/4MX PAC1954T-E_VQFN Microchip Technology | VQFN-16-1EP_3x3mm_P0.5mm_EP1.1x1.1mm | U25, U30 |
| 1 | MAX812REUS+T Maxim Integrated Products | SOT-143-4 | U26 |
| 1 | MP8869SGL-P MP8869S Monolithic Power Systems | MPS_QFN-14_MP8869S | U27 |
| 1 | XC6230H001ER-G Torex Semiconductor | Torex_USP-6C | U28 |
| 1 | MCP4726A0T-E/MAY MCP4726A0T_DFN Microchip Technology | DFN-6-1EP_2x2mm_P0.65mm_EP1x1.6mm | U29 |
| 1 | LM3880MFX-1AA/NOPB LM3880 Texas Instruments | SOT-23-6 | U31 |
| 2 | SI7613DN-T1-GE3 Vishay | Vishay_PowerPAK_1212-8_Single | Q12, Q13 |
| 4 | BSS138PW,115 Nexperia | SC70-3 | Q14, Q15, Q16, Q17 |
| 1 | PJ-002AH BarrelJack_Pin2mm_MJ-179PH CUI Inc | BarrelJack_Pin2mm_PJ-002AH | J7 |
| 1 | BM04B-SRSS-TB(LF)(SN) JST_SH_1x4_BM04B-SRSS-TB-LF-SN JST Automotive Connectors | Conn_JST_SH_1x4_BM04B-SRSS-TB-LF-SN | J8 |
| 2 | 0466004.NR F_4A_1206 Littelfuse | F_1206_3216Metric | F1, F2 |
| 1 | CVS-08TB SW_CVS-08TB Nidec Components | SW_DIP_SPSTx08_Slide_Copal_CVS-08xB_W5.9mm_P1mm | SW4 |
| 1 | KMR211NGLFS SW_KMR211NGLFS_SMD C&K | SW_KMR211NGLFS_SMD | SW5 |
| 36 | TP_1mm_SMD | TP_SMD_1mm | TP8, TP9, TP10, TP11, TP12, TP13, TP15, TP16 +28 |
| 3 | RCW-0C TP_1206_SMD_RCW-0C TE Connectivity | TP_1206_SMD_RCW-0C | TP14, TP20, TP21 |
| 1 | ESDA25P35-1U1M STMicroelectronics | ESDA25P35-1U1M | D16 |
Show 18 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SRP6050CA-1R5M L_1u5_17A_Bourns-SRP6050CA Bourns | L_Bourns-SRP6050CA | L1 |
| 15 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C169, C170, C175, C176, C195, C199, C203, C204 +7 |
| 6 | CL21A226MAYNNNE C_22u_25V_0805 Samsung Electro-Mechanics | C_0805_2012Metric | C171, C173, C177, C178, C200, C202 |
| 5 | C1005X6S1A105K050BC C_1u_0402 TDK | C_0402_1005Metric | C172, C174, C194, C198, C206 |
| 3 | CL10A105KA8NNNC C_1u_25V_0603 Samsung Electro-Mechanics | C_0603_1608Metric | C179, C180, C181 |
| 16 | GRM188R60J226MEA0D C_22u_0603 Murata | C_0603_1608Metric | C182, C183, C184, C185, C186, C187, C188, C189 +8 |
| 1 | C1005X5R1E474M050BB C_470n_0402 TDK | C_0402_1005Metric | C201 |
| 3 | GRM155R60J106ME15D C_10u_6.3V_0402 Murata | C_0402_1005Metric | C207, C211, C218 |
| 1 | GCM155R71H223MA55D C_22n_0402 Murata | C_0402_1005Metric | C210 |
| 1 | CC0402JRNPO9BN220 C_22p_0402 YAGEO | C_0402_1005Metric | C221 |
| 11 | CR0402-FX-4702GLF R_47k_0402 Bourns | R_0402_1005Metric | R135, R139, R140, R149, R160, R161, R171, R172 +3 |
| 11 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R136, R137, R138, R151, R153, R155, R157, R162 +3 |
| 8 | RL1206FR-7W0R01L R_0R01_1206 YAGEO | R_1206_3216Metric | R141, R142, R143, R144, R145, R146, R147, R148 |
| 4 | CR0402-FX-1002GLF R_10k_0402 Bourns | R_0402_1005Metric | R170, R173, R181, R182 |
| 1 | CR0402-FX-4701GLF R_4k7_0402 Bourns | R_0402_1005Metric | R180 |
| 3 | PMR03EZPJ000 R_0R_22.4A_0603 ROHM Semiconductor | R_0603_1608Metric | R183, R188, R189 |
| 1 | CR0402-FX-8062GLF R_80k6_0402 Bourns | R_0402_1005Metric | R185 |
| 1 | CR0402-FX-2053GLF R_205k_0402 Bourns | R_0402_1005Metric | R186 |
Sodimm ddr5-tester design files
The KiCad project lives in the antmicro/sodimm-ddr5-tester repository on GitHub; these links point at the commit this page was built from.
- Schematicsupply.kicad_sch
Sodimm ddr5-tester: common questions
How many components are on the Sodimm ddr5-tester?
157 components, from 38 distinct parts. The full bill of materials is listed on this page.
Where can I download the Sodimm ddr5-tester design files?
From the antmicro/sodimm-ddr5-tester repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Sodimm ddr5-tester design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
