Nano-Play-Board
About the Nano-Play-Board
Nano-Play-Board is an open source PCB design by AntonioMR, published on GitHub. It is a 2-layer board measuring 100 × 49.7 mm, with 107 components from 39 distinct parts.
Other key parts include the LM7805CT, MCP23017, Matriz_5x7, PCA9634 and MMA7660FC. By type, the board carries 51 resistors, 18 connectors, 14 capacitors, 9 transistors, 6 ICs and 4 switches.
It belongs with the iot & wireless designs in this gallery.
From the project

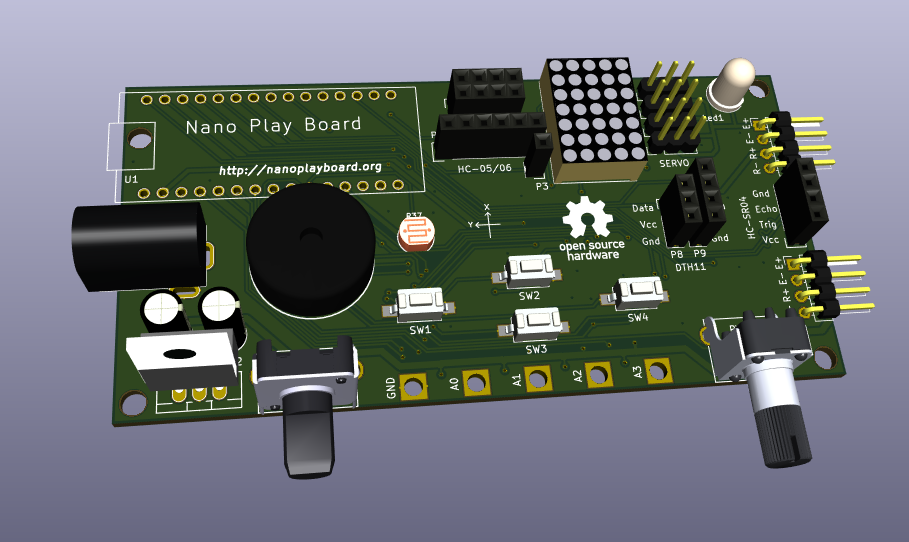

Placa para experimentar con el Arduino Nano
[José Juan Sánchez][1] ha desarrollado una librería para usar la placa que que se encuentra disponile en su [cuenta de github][2]. Esta librería permite un uso fácil de los recursos disponibles en la placa mediante el uso de las clases definidas para los distionts elementos y los metodos para la interactuación con los mismos.
Este diseño es distribuido con la esperanza de que le sea útil, pero SIN NINGUNA GARANTIA; incluso sin la garantía implícita por la VENTA o EJERCICIO DE ALGUN PROPOSITO en particular. Vea la "GNU General Public License" para más detalles.
Main components on the Nano-Play-Board
Nano-Play-Board bill of materials (BOM)
107 components, 39 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM7805CT | TO-220_Neutral123_Vertical_LargePads | U2 |
| 1 | MCP23017 | SSOP-28_5.3x10.2mm_Pitch0.65mm | U3 |
| 1 | Matriz_5x7 | Matriz_Led_7X5 | U5 |
| 1 | PCA9634 | TSSOP-20_4.4x6.5mm_Pitch0.65mm | U6 |
| 1 | MMA7660FC | DFN-10-1EP_3x3mm_Pitch0.5mm | U8 |
| 1 | 40106 | SOIC-14_3.9x8.7mm_Pitch1.27mm | U9 |
| 7 | SMBT3904 | SOT-23 | Q1, Q2, Q3, Q4, Q5, Q8, Q9 |
| 2 | BSS138 | SOT-23 | Q6, Q7 |
| 1 | BARREL_JACK | Barrel_Jack_Hembra_CLIFF_FC68148 | CON1 |
| 1 | CONN_02X04 | Socket_Strip_Straight_2x04 | P1 |
| 1 | CONN_01X06 | Socket_Strip_Straight_1x06 | P2 |
| 1 | CONN_01X01 | Socket_Strip_Straight_1x01 | P3 |
| 4 | CONN_01X03 | Pin_Header_Straight_1x03_Pitch2.54mm | P4, P5, P6, P7 |
| 1 | CONN_01X03 | Socket_Strip_Straight_1x03 | P8 |
| 2 | CONN_01X04 | Socket_Strip_Straight_1x04 | P9, P10 |
| 2 | CONN_01X04 | Pin_Header_Angled_1x04_Pitch2.54mm | P11, P12 |
| 5 | CONN_01X01 | Pad_Conector_Cocodrilo | P13, P14, P15, P16, P17 |
| 1 | Encoder_Inc | ALPS_EC12E24_encoder_incremental | B1 |
| 1 | 10K | ALP_RK09K111 | RV1 |
| 1 | BUZZER | LOUDITY_LD-BZPN-1705 | SP1 |
Show 19 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Izquierda | CANAL_ELECTRONIC_DTSM-31N-B | SW1 |
| 1 | Arriba | CANAL_ELECTRONIC_DTSM-31N-B | SW2 |
| 1 | Abajo | CANAL_ELECTRONIC_DTSM-31N-B | SW3 |
| 1 | Derecha | CANAL_ELECTRONIC_DTSM-31N-B | SW4 |
| 1 | Led_RGB | LED_RGB_5mm_G_B_COM_R_Anodo_comun | Led1 |
| 1 | 15MQ040N | DO-214AC | D1 |
| 2 | 0,33u | C_Radial_D5_L11_P2 | C1, C2 |
| 9 | 100n | C_0805 | C3, C7, C13, C14, C15, C16, C17, C19 +1 |
| 1 | 47u | C_1210 | C5 |
| 2 | 10n | C_0805 | C18, C20 |
| 10 | 120 | R_0805 | R1, R2, R3, R4, R5, R6, R7, R20 +2 |
| 11 | 1K | R_0805 | R8, R9, R10, R11, R12, R13, R38, R40 +3 |
| 1 | 2K | R_0805 | R14 |
| 13 | 10K | R_0805 | R16, R17, R18, R19, R24, R25, R26, R27 +5 |
| 5 | 4K7 | R_0805 | R23, R32, R33, R34, R35 |
| 4 | 10M | R_0805 | R28, R29, R30, R31 |
| 1 | LDR | LDR_TOKEN_PGM5_Series | R37 |
| 2 | 220R | R_0805 | R43, R45 |
| 4 | 47K | R_0805 | R44, R46, R48, R51 |
Nano-Play-Board design files
The KiCad project lives in the AntonioMR/Nano-Play-Board repository on GitHub; these links point at the commit this page was built from.
- LayoutNano_PB.kicad_pcb
Nano-Play-Board: common questions
How big is the Nano-Play-Board?
The Nano-Play-Board measures 100 × 49.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Nano-Play-Board?
107 components, from 39 distinct parts. The full bill of materials is listed on this page.
Where can I download the Nano-Play-Board design files?
From the AntonioMR/Nano-Play-Board repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Nano-Play-Board design in my own project?
The repository has no license, so all rights stay with AntonioMR. Use it as a reference, and ask the author before reusing the design.
