Tracker subcarrier dac
About the Tracker subcarrier dac PCB
Tracker subcarrier dac is an open source PCB design by AntonSievering, published on GitHub. It is a 4-layer board measuring 22 × 66 mm, with 77 components from 18 distinct parts.
Other key parts include the DAC908E and MCP1501T-12E/CHY. By type, the board carries 33 capacitors, 29 resistors, 8 inductors, 4 connectors and 3 ICs.
From the project
Sounding Rocket Tracking and Positioning Project

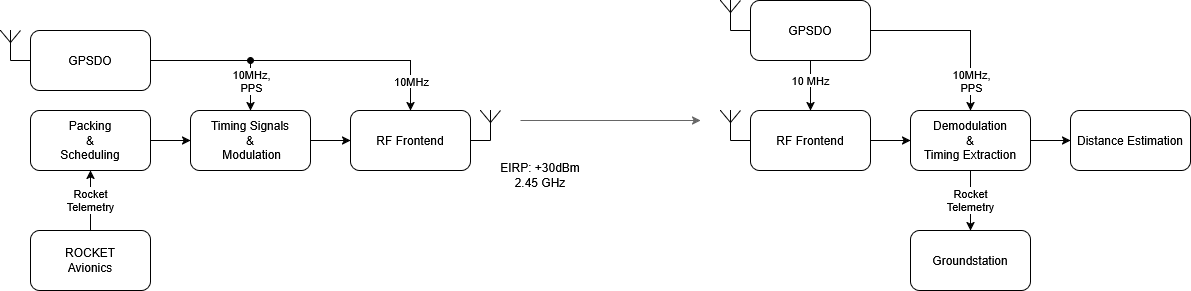

The rocket carries a transmitter that continuously downlinks telemetry along with timing signals. Multiple ground receivers (3–4 planned) receive the signal and extract the timing information. With the timing data, the system computes the rocket’s position in real time.
This repository contains the PCB projects for TRACKER - GPSDO-V2: 10 MHz oscillator tuned by the GPS timing signals - basestation-rx: S-band timing signal receiver - tracker-tx-fpga: FPGA baseboard with three subcarrier slots - tracker-subcarrier-adc: ADC subcarrier for FPGA baseboard - tracker-subcarrier-dac: DAC subcarrier…
Main components on the Tracker subcarrier dac
Tracker subcarrier dac bill of materials (BOM)
77 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | DAC908E | SOP65P640X120-28N | IC1, IC2 |
| 1 | MCP1501T-12E/CHY MCP1501-12xCH | SOT-23-6 | U1 |
| 4 | Conn_Coaxial | SMA_Amphenol_901-144_Vertical | J6, J7, J8, J9 |
| 3 | 81-BLM18KG102SH1D 1k@100MHz | L_0603_1608Metric | FB1, FB2, FB3 |
| 1 | 600@100MHz | L_0805_2012Metric | FB4 |
| 4 | MLF1608A1R5JT000 1.5u | L_0603_1608Metric | L1, L2, L3, L4 |
| 8 | GCM1885C2A301FA16J 300p | C_0603_1608Metric | C1, C2, C3, C4, C5, C6, C7, C8 |
| 6 | 100n | C_0603_1608Metric | C9, C10, C15, C20, C21, C26 |
| 10 | 100n | C_0402_1005Metric | C11, C12, C13, C14, C16, C22, C23, C24 +2 |
| 2 | 10u | C_0805_2012Metric | C17, C28 |
| 4 | 20p | C_0603_1608Metric | C18, C19, C29, C30 |
| 2 | 2u2 | C_0603_1608Metric | C31, C32 |
| 1 | 47u | C_0805_2012Metric | C33 |
| 2 | 0 | R_0603_1608Metric | R1, R7 |
| 2 | 100 | R_0603_1608Metric | R3, R9 |
| 2 | RT0603BRD072KL 2k 0.1% | R_0603_1608Metric | R4, R10 |
| 5 | 49.9 | R_0603_1608Metric | R5, R6, R11, R12, R13 |
| 18 | RC0603FR-1033RL 33 | R_0603_1608Metric | R14, R15, R16, R17, R18, R19, R20, R21 +10 |
Tracker subcarrier dac design files
The KiCad project lives in the AntonSievering/TRACKER repository on GitHub; these links point at the commit this page was built from.
Tracker subcarrier dac: common questions
How big is the Tracker subcarrier dac PCB?
The Tracker subcarrier dac measures 22 × 66 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Tracker subcarrier dac?
77 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Tracker subcarrier dac design files?
From the AntonSievering/TRACKER repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Tracker subcarrier dac design in my own project?
The repository has no license, so all rights stay with AntonSievering. Use it as a reference, and ask the author before reusing the design.
