CustomKeyboard-1 PCB layout, top view — open source RP2040/RP2350 board by anvaymathur

About the CustomKeyboard-1 PCB

CustomKeyboard-1 is an open source RP2040/RP2350 PCB design by anvaymathur, published on GitHub. It is a 2-layer board measuring 439 × 134 mm, with 221 components from 10 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the MCP23S17x-x-SO. By type, the board carries 113 switches, 105 diodes, 1 IC, 1 module and 1 capacitor.

It belongs with the keyboards designs in this gallery.

From the project

Creating a custom keyboard using the https://keeb.hackclub.com/ guide

Atlas is a custom 100% layout keyboard with 104 keys and 1 rotary encoder volume knob. It uses QMK firmware and was built to learn more about custom PCB building and learn tools like KiCad as well as learn and practice soldering.

I built this project to participate in Hack Club's Keeb YSWS and used the guide to build this project.

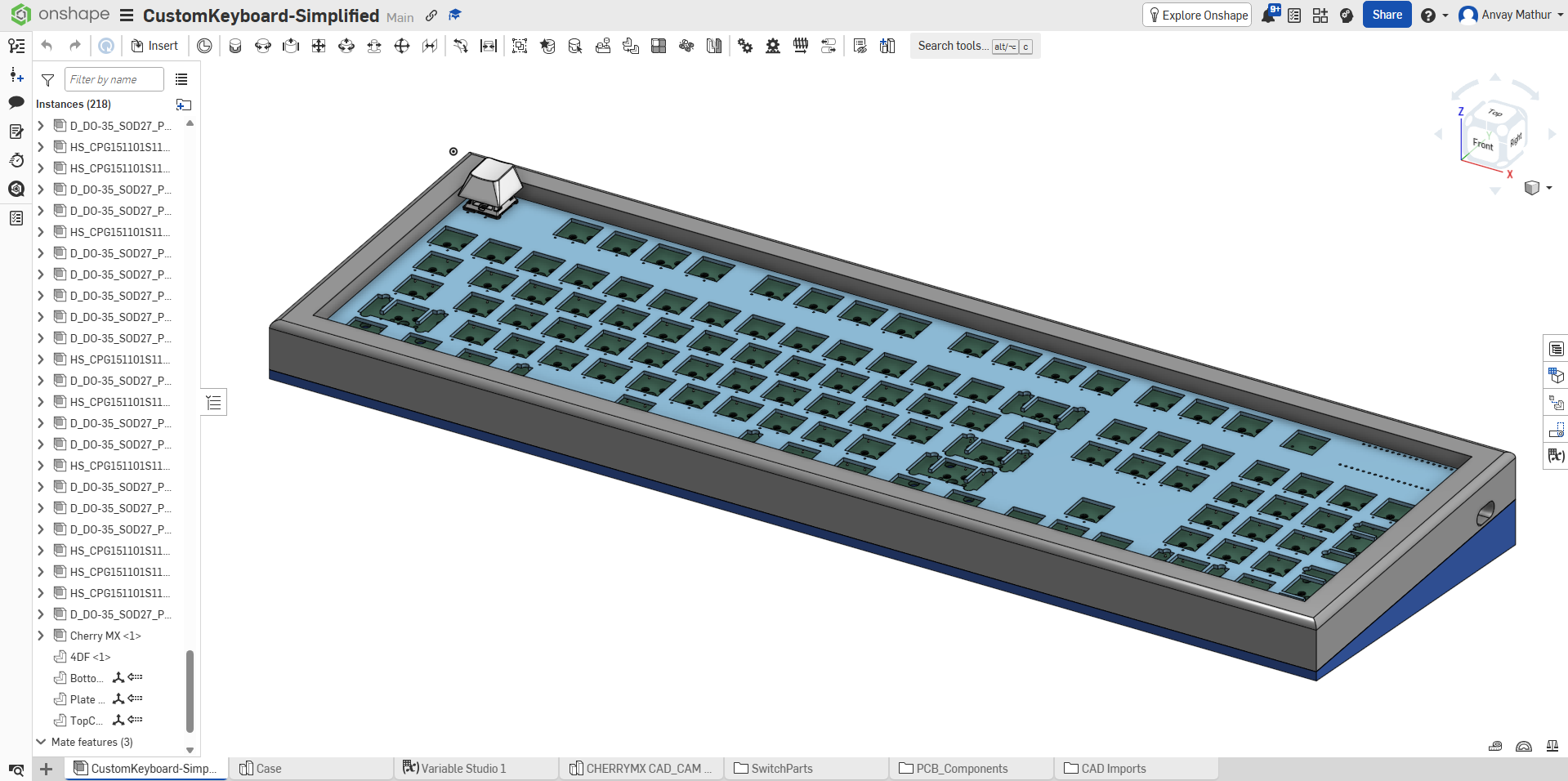

CustomKeyboard-1, from the project README
From the project README

Main components on the CustomKeyboard-1

MCP23S17x-x-SORaspberryPi_Pico

CustomKeyboard-1 bill of materials (BOM)

221 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP23S17x-x-SO
U1
1
RaspberryPi_Pico
A1
4
MX_stab
S1, S2, S6, S7
2
MX_stab
S3, S5
1
MX_stab
S4
1
MX_stab
S8
1
RotaryEncoder_Switch
SW1
104
SW_Push_45deg
SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9 +96
105
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +97
1
C-0.1uF
C1

CustomKeyboard-1 design files

The KiCad project lives in the anvaymathur/CustomKeyboard-1 repository on GitHub; these links point at the commit this page was built from.

CustomKeyboard-1: common questions

What microcontroller does the CustomKeyboard-1 use?

The CustomKeyboard-1 is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the CustomKeyboard-1 PCB?

The CustomKeyboard-1 measures 439 × 134 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CustomKeyboard-1?

221 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the CustomKeyboard-1 design files?

From the anvaymathur/CustomKeyboard-1 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the CustomKeyboard-1 design in my own project?

The repository has no license, so all rights stay with anvaymathur. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the CustomKeyboard-1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
