EQUALITY-BREADBOARD
About the EQUALITY-BREADBOARD PCB
EQUALITY-BREADBOARD is an open source PCB design by aoishik, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 24 components from 4 distinct parts.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

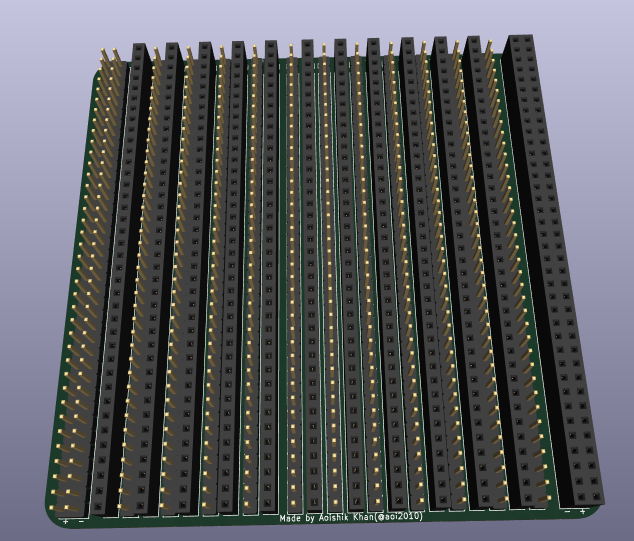

I searched in google about Male Breadboards but no results came up. I thought why only breadboards with female header pins are available in the market. So I decided to make a breadboard with both male and female header pins. And, here we are! A breadboard with both male and femal
I searched in google about Male Breadboards but no results came up. I thought why only breadboards with female header pins are available in the market. So I decided to make a breadboard with both male and female header pins. And, here we are! A breadboard with both male and female header pins. I hope this project will be useful for everyone who wants to use a breadboard with both male and female header pins. lol
EQUALITY-BREADBOARD bill of materials (BOM)
24 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_02X38_ODD_EVEN Conn_02x38_Odd_Even | PinHeader_2x38_P2.54mm_Vertical | J1 |
| 1 | CONN_02X38_ODD_EVEN Conn_02x38_Odd_Even | PinSocket_2x38_P2.54mm_Vertical | J2 |
| 11 | CONN_01X38_MOUNTINGPIN Conn_01x38_MountingPin | PinSocket_1x38_P2.54mm_Vertical | J3, J5, J7, J9, J11, J13, J15, J17 +3 |
| 11 | CONN_01X38_MOUNTINGPIN Conn_01x38_MountingPin | PinHeader_1x38_P2.54mm_Vertical | J4, J6, J8, J10, J12, J14, J16, J18 +3 |
EQUALITY-BREADBOARD design files
The KiCad project lives in the aoishik/EQUALITY-BREADBOARD repository on GitHub; these links point at the commit this page was built from.
EQUALITY-BREADBOARD: common questions
How big is the EQUALITY-BREADBOARD PCB?
The EQUALITY-BREADBOARD measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EQUALITY-BREADBOARD?
24 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EQUALITY-BREADBOARD design files?
From the aoishik/EQUALITY-BREADBOARD repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EQUALITY-BREADBOARD design in my own project?
The repository has no license, so all rights stay with aoishik. Use it as a reference, and ask the author before reusing the design.
