Eurorack pmod

apfaudio·eurorack-pmod·hardware/eurorack-pmod-r3.1/eurorack-pmod-pcb.kicad_pcb

Eurorack pmod PCB layout, top view — open source board by apfaudio
Simulate this board

About the Eurorack pmod PCB

Eurorack pmod is an open source PCB design by apfaudio, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 35 × 110 mm, with 116 components from 34 distinct parts.

Other key parts include the AK4619VN, C6963, C141380, C2061498 and C139380. By type, the board carries 44 resistors, 29 capacitors, 18 diodes, 10 connectors, 8 ICs and 6 inductors.

It belongs with the audio designs in this gallery.

From the project

A eurorack-friendly audio frontend compatible with many FPGA boards, based on the AK4619VN audio CODEC.

Note: this repository contains Verilog examples for using Eurorack-PMOD with different FPGA boards. If you are trying to pair it with Tiliqua or Amaranth HDL, see the quickstart guide there

Eurorack PMOD is an open hardware Eurorack module that plugs directly into many FPGA boards, which makes it easy to combine the world of FPGAs and hardware electronic music synthesis.

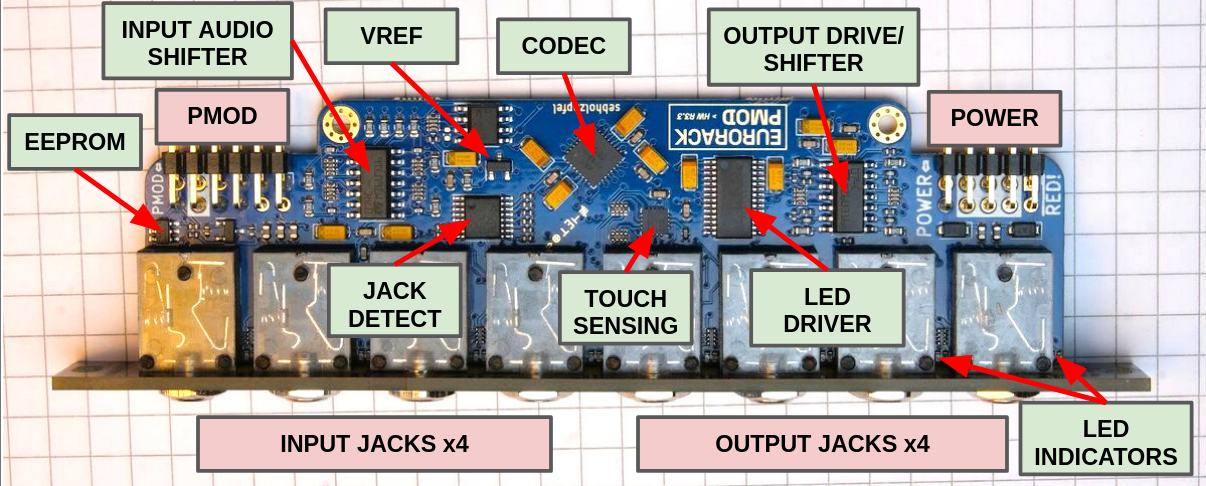

Eurorack pmod, from the project README
From the project README

Main components on the Eurorack pmod

AK4619VNC6963C141380C2061498C139380C6961C110795

Eurorack pmod bill of materials (BOM)

116 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AK4619VN
AK4619VN AUDIO CODEC
U1
2
C6963
TL074 OP AMP
U2, U3
1
C141380
PCA9557PW IO EXPANDER
U4
1
C2061498
24AA025UIDT EEPROM
U5
1
C139380
LM4040DBZ-3 VREF
U8
1
C6961
TL072 OP AMP
U9
1
C110795
PCA9635 LED DRIVER
U10
1
2N7002E
Q1
1
C492433
CONN 2x5 P=2.54mm
J1
1
C2894986
CONN 2x6 P=2.54mm
J2
8
C2884986
AUDIO JACK PJ-324M0
J4, J5, J6, J7, J8, J9, J10, J11
2
1N4007FL
D1, D2
8
C2856703
LED 0402 GREEN
D3, D5, D7, D9, D11, D13, D15, D17
8
C965790
LED 0402 RED
D4, D6, D8, D10, D12, D14, D16, D18
6
FERRITE
L1, L2, L3, L4, L5, L6
1
10.0uF
C1
5
100NF
100nF
C2, C14, C17, C27, C29
4
100.0UF
10.0uF
C3, C10, C16, C28
3
22.0UF
100nF
C4, C9, C11
1
22.0UF
47uF
C5
Show 14 more
QtyPartRefs
2
100NF
47uF
C6, C15
2
2.2UF
2.2uF
C7, C12
2
100NF
10.0uF
C8, C13
4
220PF
220pF
C18, C19, C20, C21
4
56P
56p
C22, C23, C24, C25
1
22.0UF
10.0uF
C26
16
4K7
R1, R2, R3, R4, R5, R8, R11, R14 +8
4
100K
R6, R9, R12, R15
8
1K
R7, R10, R13, R16, R18, R22, R26, R30
4
56K
R19, R23, R27, R31
1
330R
R33
4
14.3K
10K
RN1, RN2, RN3, RN4
3
100K
RN5, RN6, RN7
4
120R
100R
RN8, RN9, RN10, RN11

Eurorack pmod design files

The KiCad project lives in the apfaudio/eurorack-pmod repository on GitHub; these links point at the commit this page was built from.

Eurorack pmod: common questions

How big is the Eurorack pmod PCB?

The Eurorack pmod measures 35 × 110 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Eurorack pmod?

116 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Eurorack pmod design files?

From the apfaudio/eurorack-pmod repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Eurorack pmod design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which apfaudio chose for the repository.
