SenseCam rev1

Appiko·sense_snap_hw·SenseCam_rev1/SenseCam_rev1.kicad_pcb

SenseCam rev1 PCB layout, top view — open source STM32 board by Appiko

About the SenseCam rev1 PCB

SenseCam rev1 is an open source STM32 PCB design by Appiko, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 45 × 70 mm, with 62 components from 41 distinct parts.

Its main chip is the STM32H750VB, from the STM32 family. Other key parts include the TLV8802, MDBT42Q, TPS62840, TPS22917 and TXB0304RUT. By type, the board carries 28 capacitors, 8 ICs, 7 connectors, 7 resistors, 4 inductors and 3 transistors.

From the project

This repository contains all the KiCad based PCB design and related documentation for all the PCBs developed at Appiko.

This repo contains the Kicad PCB design of the first revision of SenseCam base board containing the STM32H750. This board is designed to interface an image sensor, interface two SD cards with both the SDMMC and multiple low power buck regulators to power the microcontroller.

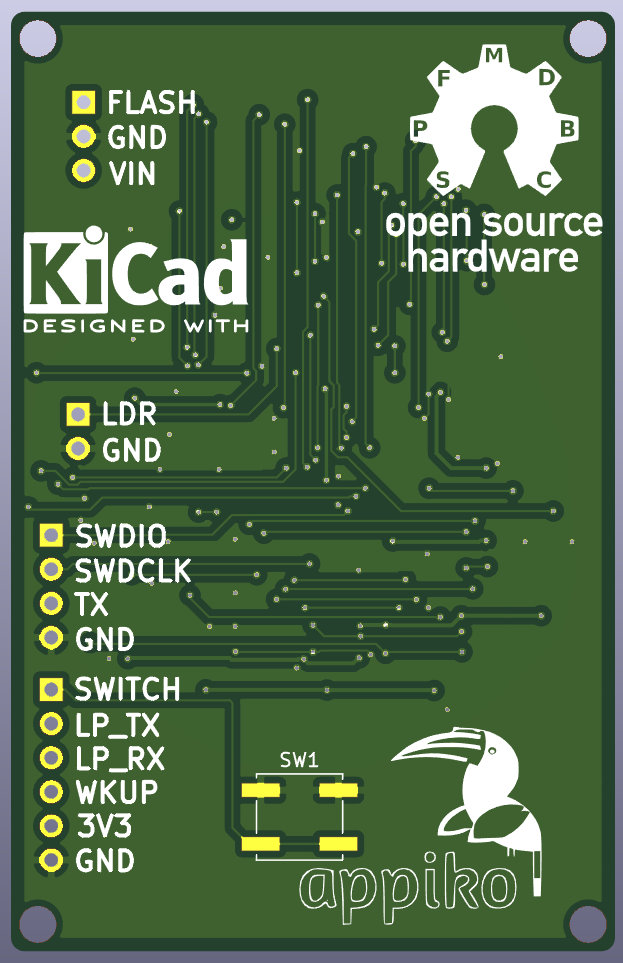

SenseCam rev1, from the project README
From the project README

Main components on the SenseCam rev1

TLV8802MDBT42QTPS62840TPS22917TXB0304RUTSTM32H750VB

SenseCam rev1 bill of materials (BOM)

62 components, 41 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TLV8802
TPS62056DGS
U1
1
MDBT42Q
TPS62841
U2
1
TPS62840
U3
2
TPS22917
U4, U7
2
TXB0304RUT
U5, U6
1
STM32H750VB
U8
1
TSM2301/IRLML6401
SQA403EJ
Q1
2
NTK3043NT1G
Q2, Q3
1
20MHz
Y1
1
32768
Y2
1
AUDIO-JACK-4
Conn_01x30
J1
2
Micro_SD_Card_Det_Hirose_DM3AT
J2, J3
1
Conn_01x02
J4
1
Conn_01x04
J5
1
Conn_01x06
J6
1
Flash board
J7
1
VDD_1V8_3V3
3V3_1V8
1
SW_SPST
SW1
1
D2PWREN
D2PWREN
1
15NH
10uH
L1
Show 21 more
QtyPartRefs
1
10UH
2.2uH
L2
1
2.2uH
L3
1
MPZ1608S331ATA00
L4
2
10UF
22uF
C1, C3
1
6.8NF
22uF
C2
1
10UF
4.7uF
C4
1
6.8NF
4.7uF
C5
1
100PF
0.1uF
C6
2
1UF
0.1uF
C7, C8
2
100NF
0.1uF
C9, C14
2
8PF
0.1uF
C10, C11
1
10UF
0.1uF
C12
9
0.1uF
C13, C15, C16, C17, C20, C21, C22, C23 +1
2
8pF
C18, C19
2
4.7uF
C24, C28
2
12pF
C26, C27
1
47K
51k
R1
2
47K
270k
R2, R6
1
1M5
22k
R3
2
47K
1M
R4, R5
1
1M5
270k
R7

SenseCam rev1 design files

The KiCad project lives in the Appiko/sense_snap_hw repository on GitHub; these links point at the commit this page was built from.

SenseCam rev1: common questions

What microcontroller does the SenseCam rev1 use?

The SenseCam rev1 is built around the STM32H750VB, from the STM32 family.

How big is the SenseCam rev1 PCB?

The SenseCam rev1 measures 45 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SenseCam rev1?

62 components, from 41 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SenseCam rev1 design files?

From the Appiko/sense_snap_hw repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the SenseCam rev1 design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which Appiko chose for the repository.

Can I test firmware for the SenseCam rev1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
