ADP2384 EVL
About the ADP2384 EVL PCB
ADP2384 EVL is an open source PCB design by aravind7s, published on GitHub under the MIT license. It is a 2-layer board measuring 35 × 40 mm, with 20 components from 16 distinct parts.
Other key parts include the ADP2384ACPZN-R7. By type, the board carries 10 capacitors, 5 resistors, 3 connectors, 1 IC and 1 inductor.
It belongs with the power & battery designs in this gallery.
From the project
Hardware design files for ADP2384 based 12 V to 3.3V@4A DC-DC buck converter designed using KiCad.
Hardware design files for a 12 V → 3.3 V @ 4 A DC-DC buck converter based on the Analog Devices ADP2384 designed using KiCad.
This project contains the complete design package — schematic, layout, and simulation files — for a compact, high-efficiency step-down converter using the ADP2384 synchronous buck regulator.

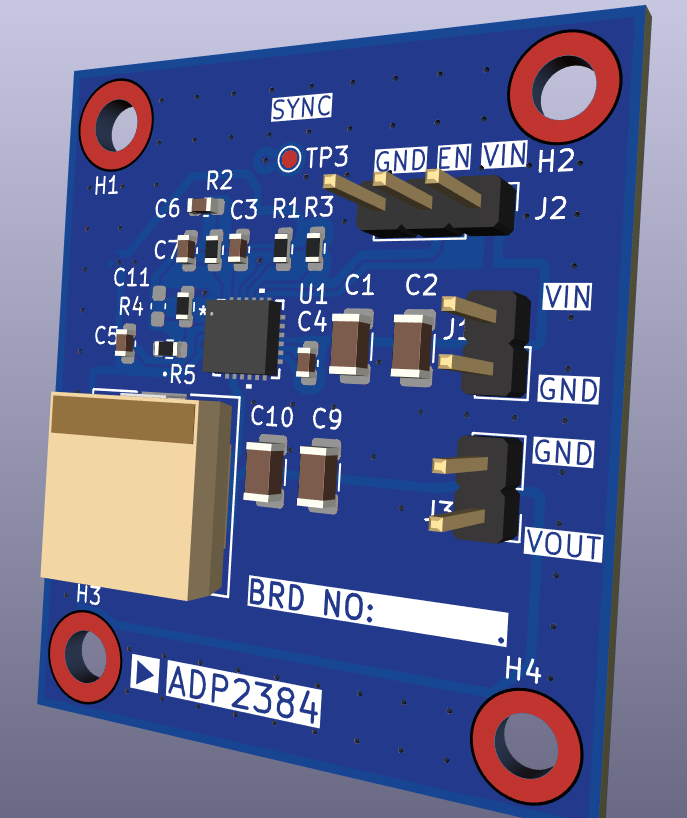

3D render of the ADP2384EVL board (35 × 40 mm)*
Main components on the ADP2384 EVL
ADP2384 EVL bill of materials (BOM)
20 components, 16 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ADP2384ACPZN-R7 ADP2384 | CP_24_12_ADI | U1 |
| 2 | PH1-02-UA Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J1, J3 |
| 1 | PH1-03-UA Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 1 | IHLP4040DZER3R3M01 3.3uH | IND_IHLP-4040DZ_VIS | L1 |
| 2 | CL31B106KAHNNNE 10uF | C_1206_3216Metric | C1, C2 |
| 1 | GCM188R72A223KA37J 22nF | C_0603_1608Metric | C3 |
| 1 | CC0603KRX7R9BB104 0.1uF | C_0603_1608Metric | C4 |
| 1 | CL10B105KO8NNNC 1uF | C_0603_1608Metric | C5 |
| 1 | GRM1885C1H152JA01D 1500pF | C_0603_1608Metric | C6 |
| 1 | CC0603CPNPO9BN4R7 4.7pF | C_0603_1608Metric | C7 |
| 2 | GRM31CR61A476ME15L 47uF | C_1206_3216Metric | C9, C10 |
| 1 | 10uF | C_0603_1608Metric | C11 |
| 1 | CRCW0603100KFKEA 100k | R_0603_1608Metric | R1 |
| 1 | CRCW060331K6FKEA 31.6k | R_0603_1608Metric | R2 |
| 2 | CRCW060310K0FKEA 10k | R_0603_1608Metric | R3, R4 |
| 1 | CRCW06032K21FKEA 2.21k | R_0603_1608Metric | R5 |
ADP2384 EVL design files
The KiCad project lives in the aravind7s/ADP2384_EVL repository on GitHub; these links point at the commit this page was built from.
ADP2384 EVL: common questions
How big is the ADP2384 EVL PCB?
The ADP2384 EVL measures 35 × 40 mm, has 2 copper layers and is 1.64 mm thick.
How many components are on the ADP2384 EVL?
20 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ADP2384 EVL design files?
From the aravind7s/ADP2384_EVL repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ADP2384 EVL design in my own project?
Yes, under the terms of its MIT license, which aravind7s chose for the repository.
