Arduino nano every pcb replica

arhamrizwan2006·arduino-nano-every-pcb-replica

Arduino nano every pcb replica layout, top view — open source AVR/Arduino board by arhamrizwan2006

About the Arduino nano every pcb replica

Arduino nano every pcb replica is an open source AVR/Arduino PCB design by arhamrizwan2006, published on GitHub. It is a 2-layer board measuring 60 × 51.5 mm, with 23 components from 15 distinct parts.

Its main chip is the ATmega4809-A, from the AVR/Arduino family. Other key parts include the MP2322GQH-Z and ATSAMD11D14A-M. By type, the board carries 11 capacitors, 4 resistors, 3 ICs, 3 connectors, 1 crystal and 1 inductor.

From the project

Chip-level PCB replica of the Arduino Nano Every (ABX00028), designed in KiCad 10 — full schematic, routing, and manufacturing files

A complete, chip-level PCB replica of the Arduino Nano Every, reverse-engineered from scratch in KiCad 10 — not a breakout board, but a full reconstruction with every component and trace routed by hand and machine.

✅ Schematic — 5 interconnected sub-circuits ✅ PCB Layout — Single-sided, auto + manual routing ✅ Gerber Files — Ready for fabrication (10 files) ✅ BOM — Complete bill of materials (CSV) ✅ 3D Models — PCB renders + component STEP files ✅ Zero DRC Errors — Design rule check passed

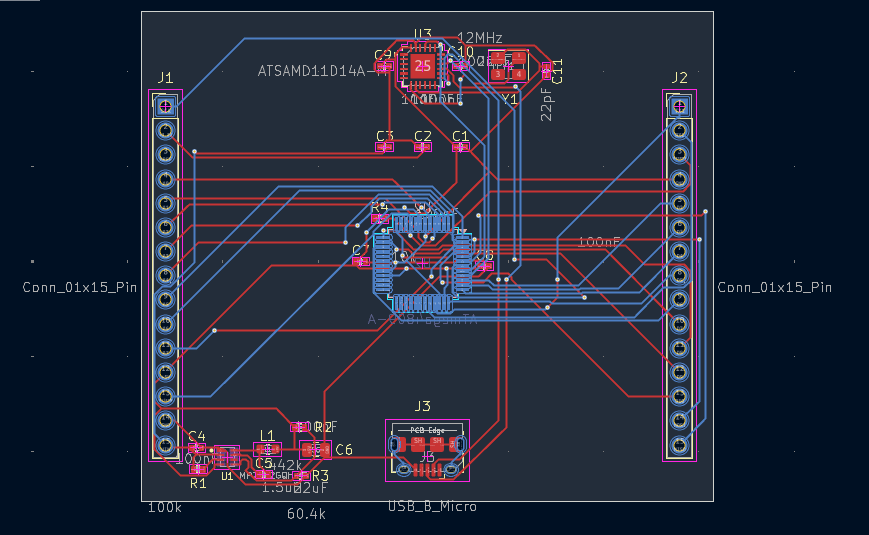

Arduino nano every pcb replica, from the project README
From the project README

Main components on the Arduino nano every pcb replica

MP2322GQH-ZATmega4809-AATSAMD11D14A-M

Arduino nano every pcb replica bill of materials (BOM)

23 components, 15 distinct parts.

QtyPartRefs
1
MP2322GQH-Z
U1
1
ATmega4809-A
U2
1
ATSAMD11D14A-M
U3
1
12MHz
Y1
2
Conn_01x15_Pin
J1, J2
1
USB_B_Micro
J3
1
1.5uH
L1
7
100nF
C1, C2, C4, C5, C7, C8, C9
1
10uF
C3
1
22uF
C6
2
22pF
C10, C11
1
100k
R1
1
442k
R2
1
60.4k
R3
1
10k
R4

Arduino nano every pcb replica design files

The KiCad project lives in the arhamrizwan2006/arduino-nano-every-pcb-replica repository on GitHub; these links point at the commit this page was built from.

Arduino nano every pcb replica: common questions

What microcontroller does the Arduino nano every pcb replica use?

The Arduino nano every pcb replica is built around the ATmega4809-A, from the AVR/Arduino family.

How big is the Arduino nano every pcb replica?

The Arduino nano every pcb replica measures 60 × 51.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Arduino nano every pcb replica?

23 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Arduino nano every pcb replica design files?

From the arhamrizwan2006/arduino-nano-every-pcb-replica repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Arduino nano every pcb replica design in my own project?

The repository has no license, so all rights stay with arhamrizwan2006. Use it as a reference, and ask the author before reusing the design.
