About the PNCATEHO MK DOSE 100x100 PCB

PNCATEHO MK DOSE 100x100 is an open source PCB design by aroum, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 95 × 97 mm, with 43 components from 9 distinct parts.

Other key parts include the ProMicro_r. By type, the board carries 23 diodes, 10 switches, 3 resistors, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

РИСАТЕНО (RISATENO) is a 10 key chord keyboard.

The modern era of PNCATEHO development. It differs from the Stone era in that it supports hot-swappable keys and ChocV1/V2, MK Dose, and MX switches. It also uses closed cases and a new design approach by turtle_bazon.

An updated version of the PCB by turtle_bazon. It retains the core features of the Stone era, while adding support for Choc V2, as well as hot-swappable switches, an enclosed case, and a PCB with a more refined design.

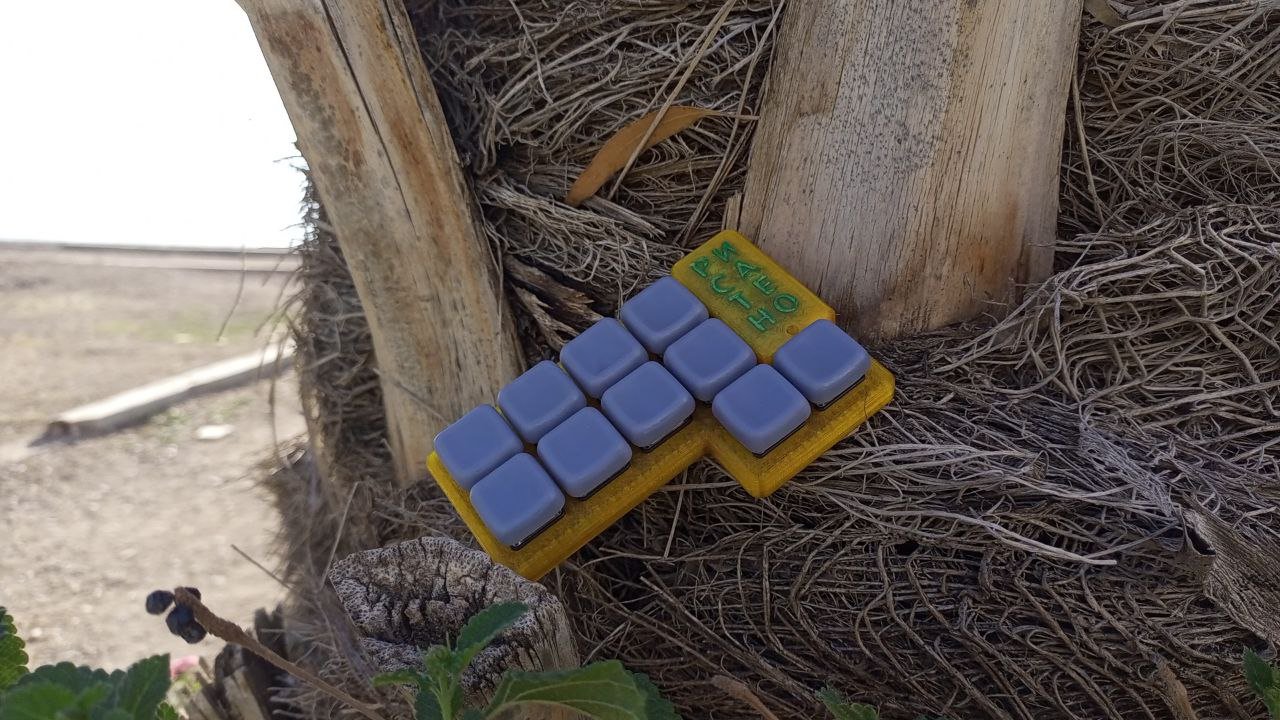

PNCATEHO MK DOSE 100x100, from the project README — From the project README

Main components on the PNCATEHO MK DOSE 100x100

PNCATEHO MK DOSE 100x100 bill of materials (BOM)

43 components, 9 distinct parts.

Qty	Part	Footprint	Refs
1	ProMicro_r	ProMicro_duplex_mirrored	U1
1	TestPoint_2Pole	battery_conn_duplex	J1
3	Hole	Hole	H1, H2, H3
1	~	bsi10h	PSW1
1	SW_PUSH	SW_3x4x2_2legs_duplex	RSW1
10	~	MK-DOSE	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +2
20	1N4148W	D3_SMD	D1, D2, D3, D4, D5, D6, D7, D8 +12
3	LED	0603-led_dual	D21, D22, D23
3	R	0603-resistor_dual	R1, R2, R3

PNCATEHO MK DOSE 100x100 design files

The KiCad project lives in the aroum/PNCATEHO repository on GitHub; these links point at the commit this page was built from.

Layoutglass/pcb/PNCATEHO_MK_DOSE/PNCATEHO_MK_DOSE_100x100.kicad_pcb

PNCATEHO MK DOSE 100x100: common questions

How big is the PNCATEHO MK DOSE 100x100 PCB?

The PNCATEHO MK DOSE 100x100 measures 95 × 97 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PNCATEHO MK DOSE 100x100?

43 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the PNCATEHO MK DOSE 100x100 design files?

From the aroum/PNCATEHO repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PNCATEHO MK DOSE 100x100 design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which aroum chose for the repository.
