Beetje 32U4 Blok

aspro648·Leonardo

Beetje 32U4 Blok PCB layout, top view — open source AVR/Arduino board by aspro648
Simulate this board

About the Beetje 32U4 Blok PCB

Beetje 32U4 Blok is an open source AVR/Arduino PCB design by aspro648, published on GitHub. It is a 2-layer board measuring 68.6 × 53.3 mm, with 6 components from 6 distinct parts.

Its main chip is the ATMEGA32U4-AUR, from the AVR/Arduino family. Other key parts include the LMV358IDGKR. By type, the board carries 2 ICs, 2 crystals and 1 resistor.

From the project

KiCad based clone of the Arduino Leonardo

Leo, the Arduino Leonardo clone done in KiCad.

https://rheingoldheavy.com/arduino-from-scratch-part-5-selecting-comparator-parts/

- 1 ea., Perfect Purple PCB from OSH Park, with not so perfect layout from kicad.pcb file. - 1 ea., U1 IC REG LINEAR 3.3V 150MA SOT23-5, LP2985-33DBVRG4, https://www.digikey.com/short/j29pqr - 1 ea., U2 IC OPAMP GP 1MHZ RRO 8VSSOP, LM358DGKR, https://www.digikey.com/short/jnd53r - 1 ea., U3 IC REG LINEAR 5V 1A SOT223 NCP1117ST50T3G, https://www.digikey.com/short/j29pqc - 1 ea., U4 ATMEGA32U4-AU, IC MCU 8BIT 32KB FLASH 44TQFP, https://www.digikey.com/short/jb25pc…

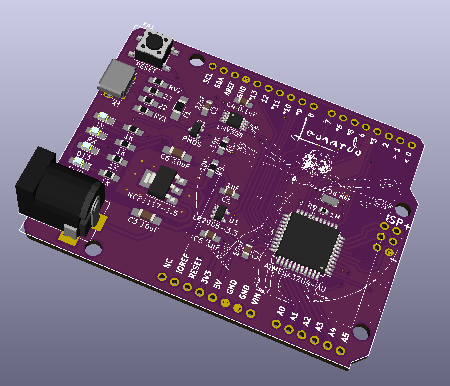

Beetje 32U4 Blok, from the project README
From the project README

Main components on the Beetje 32U4 Blok

LMV358IDGKRATMEGA32U4-AUR

Beetje 32U4 Blok bill of materials (BOM)

6 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LMV358IDGKR
LMV358
Texas Instruments
U2
1
ATMEGA32U4-AUR
ATMEGA32U4-AU
Microchip Technology
U4
1
USB_OTG
X1
1
CSTCE16M0V53-R0
16 Mhz
Murata Electronics North America
Y1
1
Arduino_Leonardo_Shield
XA1
1
CRGCQ0603J1M0
1M
TE Connectivity Passive Product
R9

Beetje 32U4 Blok design files

The KiCad project lives in the aspro648/Leonardo repository on GitHub; these links point at the commit this page was built from.

Beetje 32U4 Blok: common questions

What microcontroller does the Beetje 32U4 Blok use?

The Beetje 32U4 Blok is built around the ATMEGA32U4-AUR, from the AVR/Arduino family.

How big is the Beetje 32U4 Blok PCB?

The Beetje 32U4 Blok measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Beetje 32U4 Blok?

6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Beetje 32U4 Blok design files?

From the aspro648/Leonardo repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Beetje 32U4 Blok design in my own project?

The repository has no license, so all rights stay with aspro648. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Beetje 32U4 Blok without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
