RaspiCherryMXKeysHat

asukiaaa·RaspiCherryMXKeysHat

RaspiCherryMXKeysHat PCB layout, top view — open source Raspberry Pi board by asukiaaa

About the RaspiCherryMXKeysHat PCB

RaspiCherryMXKeysHat is an open source Raspberry Pi PCB design by asukiaaa, published on GitHub. It is a 2-layer board measuring 56.6 × 65.5 mm, with 13 components from 3 distinct parts.

Its main chip is the Raspberry_Pi_2_3, from the Raspberry Pi family. By type, the board carries 6 switches, 6 resistors and 1 connector.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Switch | Pin --- | --- SW1 | GPIO17 SW2 | GPIO18 SW3 | GPIO22 SW4 | GPIO23 SW5 | GPIO24 SW6 | GPIO25

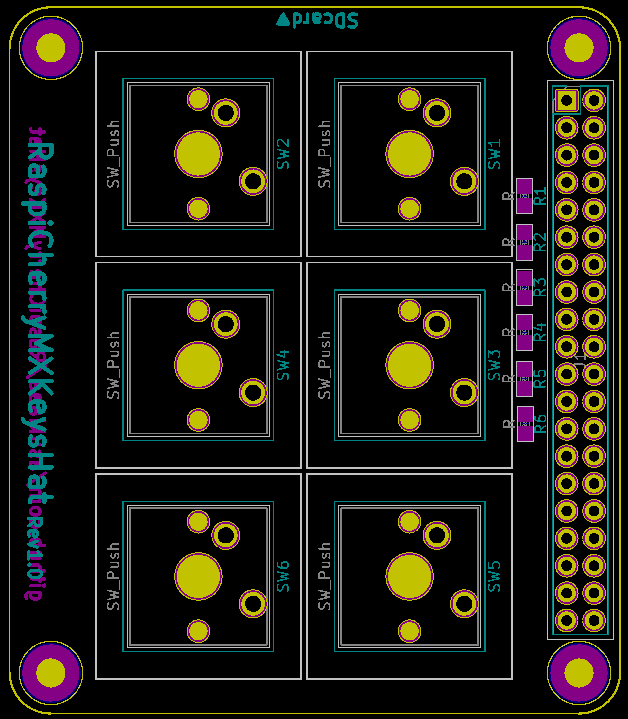

RaspiCherryMXKeysHat, from the project README
From the project README

RaspiCherryMXKeysHat bill of materials (BOM)

13 components, 3 distinct parts.

QtyPartRefs
1
Raspberry_Pi_2_3
J1
6
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6
6
R
R1, R2, R3, R4, R5, R6

RaspiCherryMXKeysHat design files

The KiCad project lives in the asukiaaa/RaspiCherryMXKeysHat repository on GitHub; these links point at the commit this page was built from.

RaspiCherryMXKeysHat: common questions

What microcontroller does the RaspiCherryMXKeysHat use?

The RaspiCherryMXKeysHat is built around the Raspberry_Pi_2_3, from the Raspberry Pi family.

How big is the RaspiCherryMXKeysHat PCB?

The RaspiCherryMXKeysHat measures 56.6 × 65.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RaspiCherryMXKeysHat?

13 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the RaspiCherryMXKeysHat design files?

From the asukiaaa/RaspiCherryMXKeysHat repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the RaspiCherryMXKeysHat design in my own project?

The repository has no license, so all rights stay with asukiaaa. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RaspiCherryMXKeysHat without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
