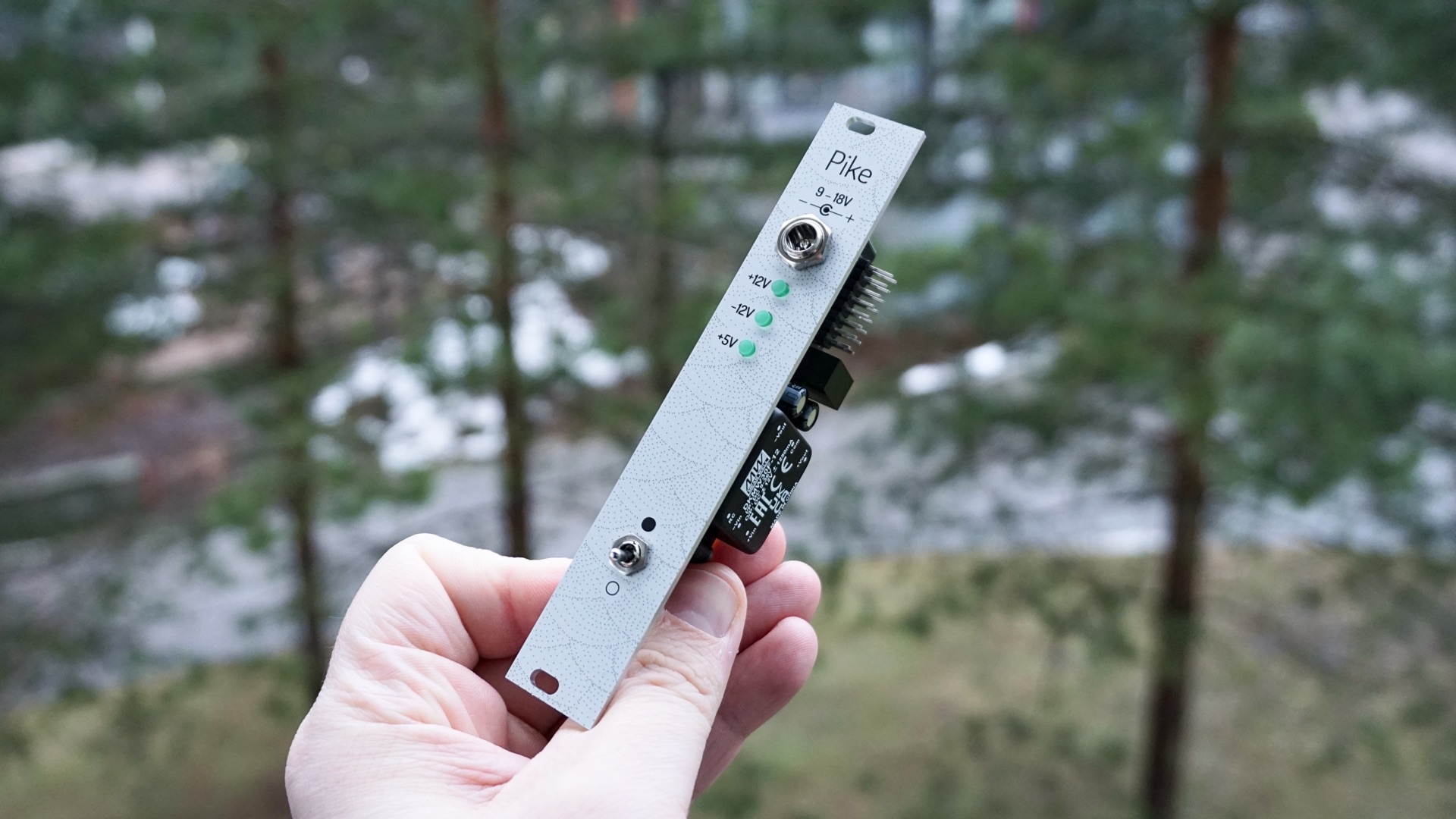

About the Pike PCB
Pike is an open source PCB design by Atarity, published on GitHub. It is a 2-layer board measuring 87.5 × 27.1 mm, with 14 components from 10 distinct parts.
By type, the board carries 4 diodes, 3 resistors, 2 connectors, 2 capacitors and 1 switch.
It belongs with the audio designs in this gallery.
From the project
Yet another repo of eurorack DIY
- Mouser cart - Blog post with project details
It is possible to install module inside of a rack thru M2-M2.5 screws and not to use front panel at all.

Pike bill of materials (BOM)
14 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PJ-005A | PJ005A | J1 |
| 1 | Power bus 02x08 | PinHeader_2x08_P2.54mm_Vertical | J2 |
| 1 | DKMW30F-12 | DKMW30F15 | PS1 |
| 1 | TSR 0.5-2450 TSR_0.5-2450 | TSR-0.5-2433 | PS2 |
| 1 | 2MS1T2B3M2QES | 2MS1-pcb-edge | S1 |
| 3 | 604-WP424GDT | LED_D3.0mm_IRBlack | D1, D3, D4 |
| 1 | 1N5400 | D_DO-201AD_P15.24mm_Horizontal | D2 |
| 2 | 22uF | CP_Radial_D6.3mm_P2.50mm | C1, C2 |
| 2 | 2K2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
| 1 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
Pike design files
The KiCad project lives in the Atarity/eurorack repository on GitHub; these links point at the commit this page was built from.
- LayoutPike/Pike.kicad_pcb
- SchematicPike/Pike.kicad_sch
- BOMPike/bom/Pike-bom.csv
Pike: common questions
How big is the Pike PCB?
The Pike measures 87.5 × 27.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pike?
14 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pike design files?
From the Atarity/eurorack repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pike design in my own project?
The repository has no license, so all rights stay with Atarity. Use it as a reference, and ask the author before reusing the design.
