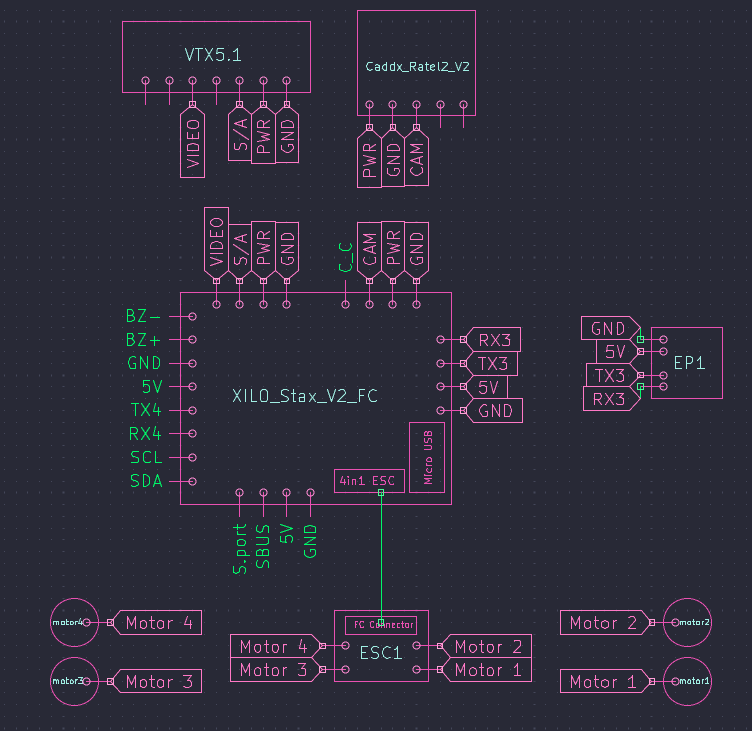

atharva-malik·FPV-Drone·Wiring Schematics/Wiring Schematics.kicad_sch

FPV-Drone

About the FPV-Drone PCB

FPV-Drone is an open source PCB design by atharva-malik, published on GitHub under the GPL-3.0 license. It is a board, with 9 components from 1 distinct parts.

It belongs with the robotics & motion and power & battery designs in this gallery.

From the project

The total cost currently comes out to ~$300 USD, bear in mind that this is without the cost of the 3D printed parts or the shipping costs. The cost of the drone parts will vary depending on where you live and where you buy the parts from.

The total cost currently comes out to ~$300 USD, bear in mind that this is without the cost of the 3D printed parts or the shipping costs. The cost of the drone parts will vary depending on where you live and where you buy the parts from.

The 3D model of the Ghast is available in the 3D Models.

FPV-Drone bill of materials (BOM)

9 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
9
~
Caddx_Ratel2_V2, EP1, ESC1, VTX5.1, XILO_Stax_V2_FC, motor1, motor2, motor3 +1

FPV-Drone design files

The KiCad project lives in the atharva-malik/FPV-Drone repository on GitHub; these links point at the commit this page was built from.

FPV-Drone: common questions

How many components are on the FPV-Drone?

9 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the FPV-Drone design files?

From the atharva-malik/FPV-Drone repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the FPV-Drone design in my own project?

Yes, under the terms of its GPL-3.0 license, which atharva-malik chose for the repository.
