PIPICO RELOCATOR V03

AtlasFPGA·PIPICO_RELOCATOR_V03·KICAD/PIPICO_RELOCATOR_V03.kicad_pcb

PIPICO RELOCATOR V03 PCB layout, top view — open source RP2040/RP2350 board by AtlasFPGA

About the PIPICO RELOCATOR V03 PCB

PIPICO RELOCATOR V03 is an open source RP2040/RP2350 PCB design by AtlasFPGA, published on GitHub. It is a 2-layer board measuring 62.9 × 78.4 mm, with 22 components from 14 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 12 connectors, 8 jumpers, 1 IC and 1 switch.

It belongs with the audio and test & measurement designs in this gallery.

From the project

Agregadas salidas para poder usar módulos I2S Texas Instruments PCM5102A

Group ATLAS in Telegram: https://t.me/INICIATIVAATLAS

Agregadas salidas para poder usar módulos I2S Texas Instruments PCM5102A

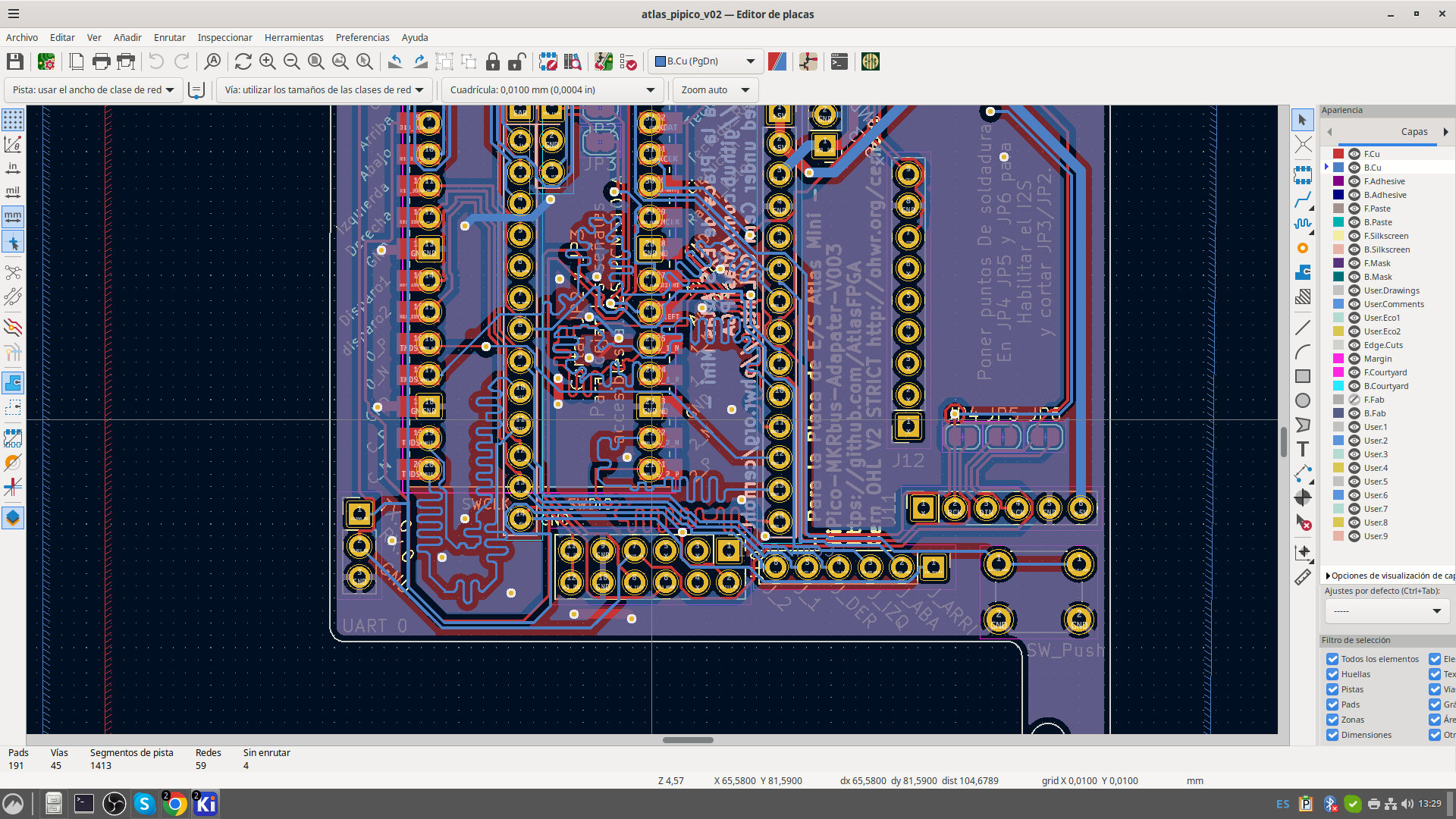

Visionado del ajuste de pares diferenciales:

Modificaciones sobre el recolocador PI-PICO que ha realizado Carlos Palmero, con el objetivo de que quede más centrada la placa en la versión de coste reducido de ATLAS, es decir "¡la roja!" Marcando el uso de un módulo I2S de bajo costo como es el Texas Instruments PCM5102A, y posiblemente en el futuro un micrófono capacitivo I2S.

PIPICO RELOCATOR V03, from the project README
From the project README

Main components on the PIPICO RELOCATOR V03

Pico

PIPICO RELOCATOR V03 bill of materials (BOM)

22 components, 14 distinct parts.

QtyPartRefs
1
Pico
U1
2
Conn_01x14
J1, J4
1
Conn_01x03
J2
4
Conn_01x06
J3, J6, J8, J9
1
UART 0
J5
1
Conn_01x04
J7
1
Conn_02x06_Odd_Even
J10
1
Conn_01x06_Female
J11
1
Conn_01x09_Female
J12
1
USB Host
JP1
2
SolderJumper_2_Bridged
JP2, JP3
3
SolderJumper_2_Open
JP4, JP5, JP6
2
SolderJumper_3_Open
JP7, JP8
1
SW_Push
SW1

PIPICO RELOCATOR V03 design files

The KiCad project lives in the AtlasFPGA/PIPICO_RELOCATOR_V03 repository on GitHub; these links point at the commit this page was built from.

PIPICO RELOCATOR V03: common questions

What microcontroller does the PIPICO RELOCATOR V03 use?

The PIPICO RELOCATOR V03 is built around the Pico, from the RP2040/RP2350 family.

How big is the PIPICO RELOCATOR V03 PCB?

The PIPICO RELOCATOR V03 measures 62.9 × 78.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PIPICO RELOCATOR V03?

22 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the PIPICO RELOCATOR V03 design files?

From the AtlasFPGA/PIPICO_RELOCATOR_V03 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PIPICO RELOCATOR V03 design in my own project?

The repository has no license, so all rights stay with AtlasFPGA. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the PIPICO RELOCATOR V03 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
