Esp breadboard expander

Atomicbeast101·esp-breadboard-expander

Esp breadboard expander PCB layout, top view — open source board by Atomicbeast101

About the Esp breadboard expander PCB

Esp breadboard expander is an open source PCB design by Atomicbeast101, published on GitHub under the MIT license. It is a 4-layer board measuring 88.3 × 50.9 mm, with 18 components from 13 distinct parts.

Other key parts include the AMS1117-3.3. By type, the board carries 10 connectors, 3 diodes, 2 capacitors, 1 IC, 1 fuse and 1 resistor.

It belongs with the power & battery and dev boards & breakouts designs in this gallery.

From the project

Kicad-designed ESP32/ESP8266/ESP-01S breadboard expander with built-in external power supply.

Kicad-designed ESP32/ESP8266/ESP-01S breadboard expander PCB with built-in external power supply. This is to provide the option for connecting these ESP chips to the standard breadboards with a separate power supply to provide enough current for prototyping. This DC power supply also powers the ESP chip too.

This PCB was designed as my first project to understand the whole designing process as well as the JLCPCB ordering part. It has gone through 2 revisions to get it working properly.

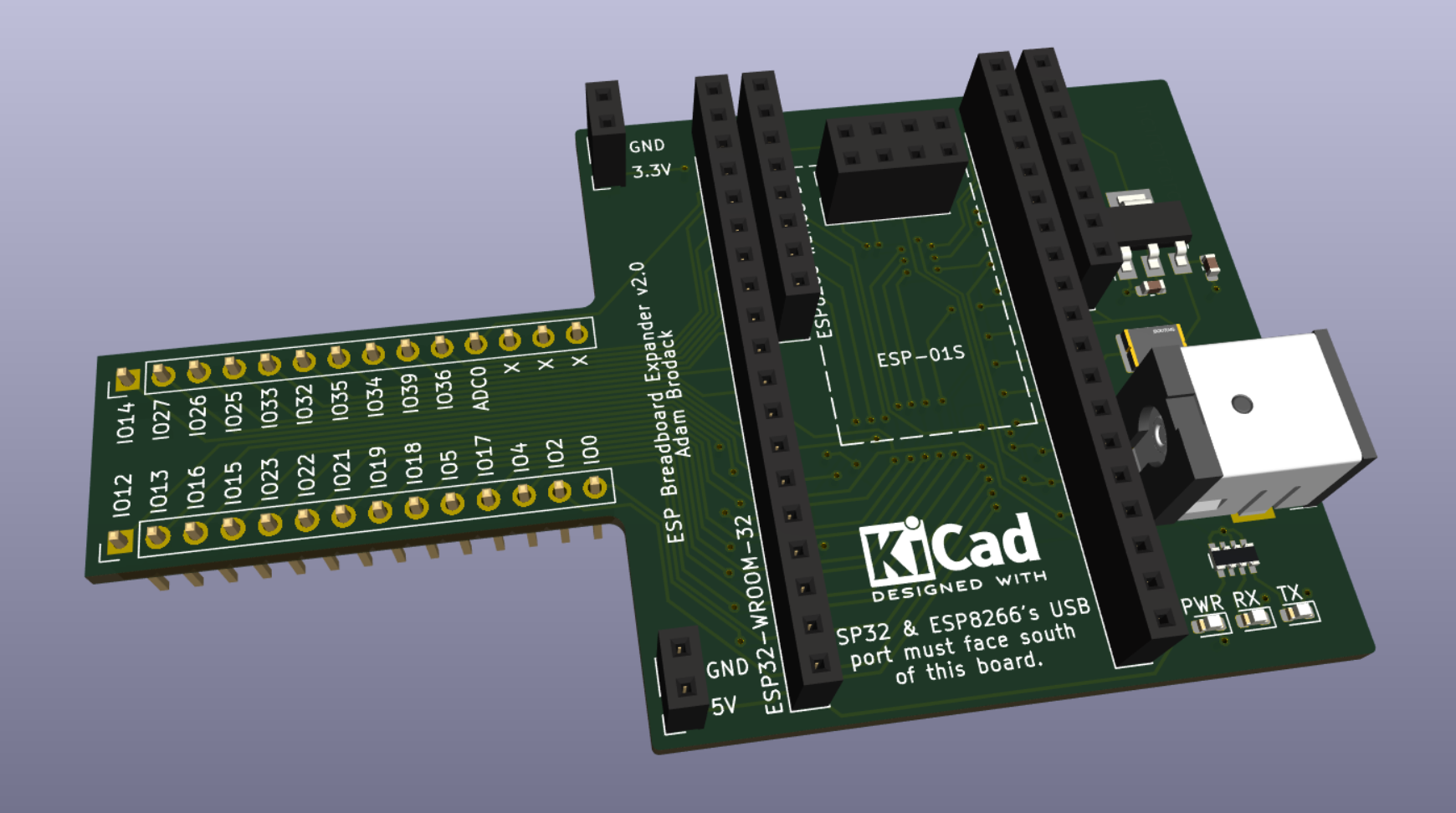

Esp breadboard expander, from the project README
From the project README

Main components on the Esp breadboard expander

AMS1117-3.3

Esp breadboard expander bill of materials (BOM)

18 components, 13 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
Conn_02x04_Odd_Even
J1
2
Conn_01x08_Socket
J2, J3
2
Conn_01x19_Socket
J4, J5
2
Conn_01x14_Pin
J6, J7
2
Conn_01x02_Socket
J8, J9
1
PJ-063BH
J10
1
Polyfuse 30V 1A
F1
1
Red
D1
1
Green
D2
1
Yellow
D3
2
10uF
C1, C2
1
1K (4x)
RN1

Esp breadboard expander design files

The KiCad project lives in the Atomicbeast101/esp-breadboard-expander repository on GitHub; these links point at the commit this page was built from.

Esp breadboard expander: common questions

How big is the Esp breadboard expander PCB?

The Esp breadboard expander measures 88.3 × 50.9 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Esp breadboard expander?

18 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp breadboard expander design files?

From the Atomicbeast101/esp-breadboard-expander repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esp breadboard expander design in my own project?

Yes, under the terms of its MIT license, which Atomicbeast101 chose for the repository.
