About the Jennic-JN5148-001-M04-breakout

Jennic-JN5148-001-M04-breakout is an open source PCB design by atoomnetmarc, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 45.7 × 55.9 mm, with 21 components from 12 distinct parts.

Other key parts include the JN5148-001-M04 and NCP1117LPST33T3G. By type, the board carries 6 resistors, 4 switches, 4 capacitors, 3 connectors, 2 ICs and 2 diodes.

It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

Jennic JN5148-001-M04 IEEE802.15.4 module breakout pcb.

Yes, the JN5148-001-M04 module is old. NXP has professionally erased all documents and software from their website except for the product brief.

However, I have some JN5148-001-M04 modules and want to play with them. So I created this crude breakout board.

Solder all components except the module. Clean PCB.

Test if 3V3 regulator works by connecting 5V (with 50mA power limit). The board should not use any significant current. Measure the 3V3 OUT-pin, it should be 3.3V.

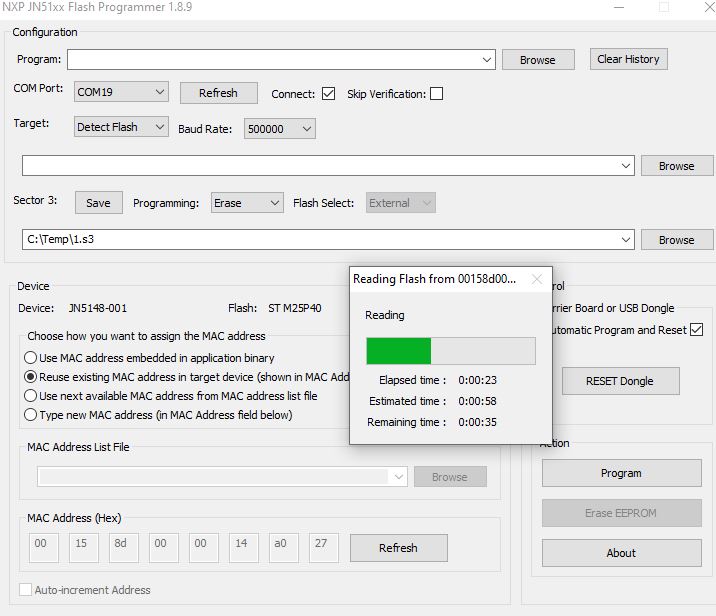

Jennic-JN5148-001-M04-breakout, from the project README
From the project README

Main components on the Jennic-JN5148-001-M04-breakout

JN5148-001-M04NCP1117LPST33T3G

Jennic-JN5148-001-M04-breakout bill of materials (BOM)

21 components, 12 distinct parts.

QtyPartRefs
1
JN5148-001-M04
U1
1
NCP1117LPST33T3G
U2
1
Conn_01x21_Male
J1
1
Conn_01x21_Male
J2
1
Conn_01x06_Male
J9
4
SW_Push
SW1, SW2, SW5, SW7
2
Green
D1, D2
2
100nF
C1, C2
2
10uF
C3, C4
1
10k
R1
1
100R
R2
4
4k7
R3, R4, R5, R6

Jennic-JN5148-001-M04-breakout design files

The KiCad project lives in the atoomnetmarc/Jennic-JN5148-001-M04-breakout repository on GitHub; these links point at the commit this page was built from.

Jennic-JN5148-001-M04-breakout: common questions

How big is the Jennic-JN5148-001-M04-breakout?

The Jennic-JN5148-001-M04-breakout measures 45.7 × 55.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Jennic-JN5148-001-M04-breakout?

21 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Jennic-JN5148-001-M04-breakout design files?

From the atoomnetmarc/Jennic-JN5148-001-M04-breakout repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Jennic-JN5148-001-M04-breakout design in my own project?

Yes, under the terms of its Apache-2.0 license, which atoomnetmarc chose for the repository.
