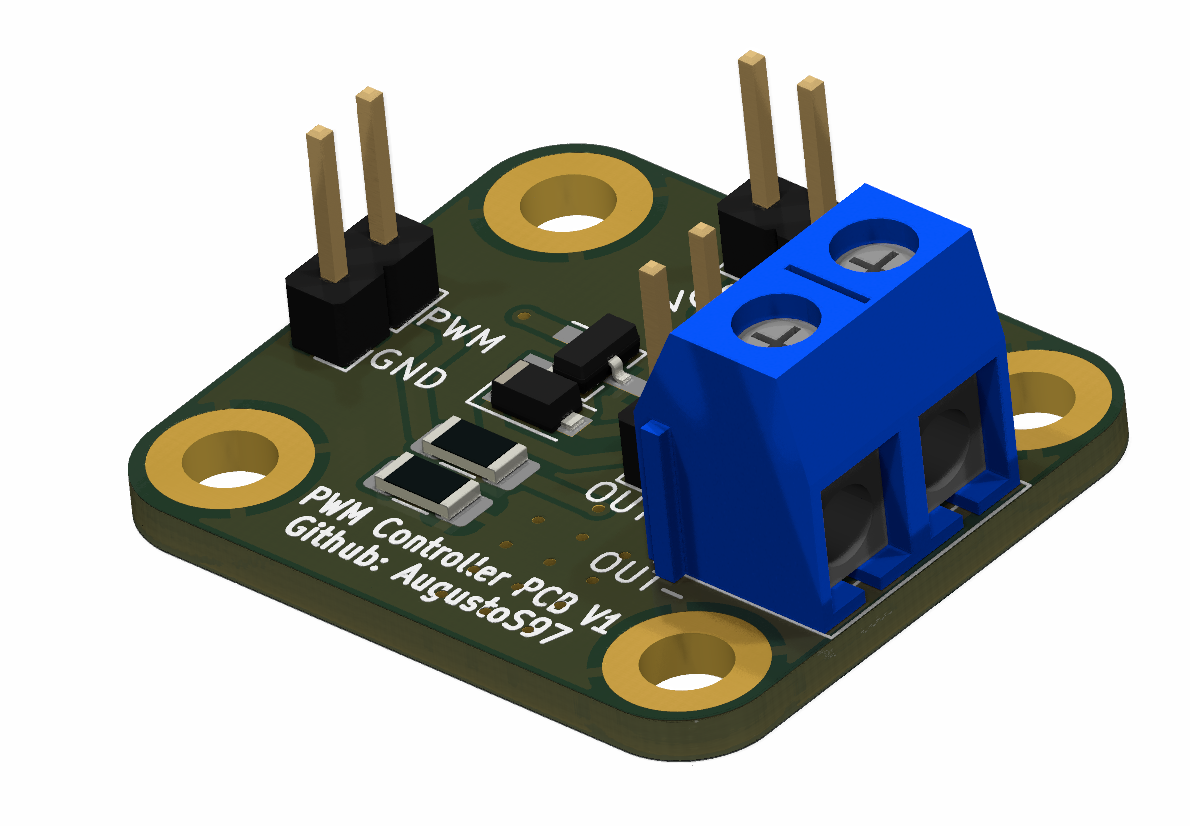

PWM-TRANSISTOR
About the PWM-TRANSISTOR PCB
PWM-TRANSISTOR is an open source PCB design by AugustoS97, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 26.4 × 23.9 mm, with 8 components from 8 distinct parts.
By type, the board carries 4 connectors, 2 resistors, 1 transistor and 1 diode.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
PCB de accesorios para Raspberry Pi y Arduino.
Módulo para el control PWM de cualquier elemento que trabaje con tensión igual o superior a la de alimentación.
- Corriente máxima: 600mA - Potencia máxima: 625mW - Pensado para controlar motores desde Raspberry y Arduino (3,3V y 5V de señal de control). Puede modificarse R1 y R2 para ser utilizado con otras tensiones de control. - GERBER disponibles para solicitar las PCB. Si desea comprarlas ensambladas por unidades, puedes contactarme a augustosamuelhdezmartin@gmail.com - Dimensiones de la PCB 26,7mm x 23,9 mm.
PWM-TRANSISTOR bill of materials (BOM)
8 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2N2222A | SOT-23_Handsoldering | Q1 |
| 1 | MOTOR_CON | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | Screw_Terminal_01x02 | TerminalBlock_bornier-2_P5.08mm | J2 |
| 1 | PWM_IN | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 1 | VCC_CON | PinHeader_1x02_P2.54mm_Vertical | J4 |
| 1 | 1N4007 | D_SOD-123F | D1 |
| 1 | 1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1 |
| 1 | 10k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R2 |
PWM-TRANSISTOR design files
The KiCad project lives in the AugustoS97/RPi-accessories repository on GitHub; these links point at the commit this page was built from.
PWM-TRANSISTOR: common questions
How big is the PWM-TRANSISTOR PCB?
The PWM-TRANSISTOR measures 26.4 × 23.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PWM-TRANSISTOR?
8 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the PWM-TRANSISTOR design files?
From the AugustoS97/RPi-accessories repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the PWM-TRANSISTOR design in my own project?
Yes, under the terms of its GPL-3.0 license, which AugustoS97 chose for the repository.
