LED-RPi
About the LED-RPi PCB

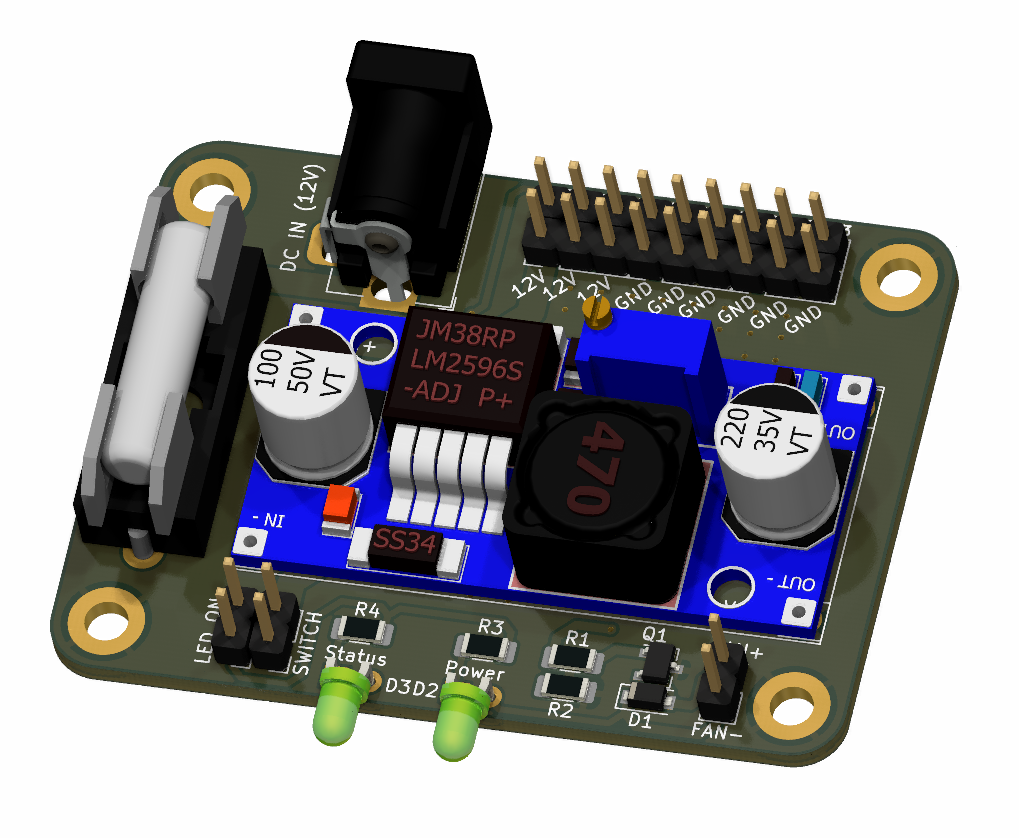

LED-RPi is an open source PCB design by AugustoS97, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 58.8 × 44.1 mm, with 21 components from 19 distinct parts.
Other key parts include the MP2307 and DCDC_StepDown_LM2596. By type, the board carries 8 connectors, 4 resistors, 3 diodes, 2 ICs, 2 jumpers and 1 transistor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
PCB de accesorios para Raspberry Pi y Arduino.
Módulo de expansión para Rapsberry Pi. Permite alimentar RPi desde una fuente externa superior a 5V, incorpora un módulo para control PWM de una salida, LEDs indicadores de Estado y de Alimentación, Fusible de Protección, y pines de expansión para aumentar las conexiones de 3.3V y 5V. Diseñado para ser utilizado en el NAS expuesto aquí.
- Permite alimentar RPi desde una fuente externa superior a 5V con módulos LM2596 y MP2307 - Incorpora un módulo para control PWM de una salida de hasta 625mW - LEDs indicadores de Estado y de Alimentación - Fusible de Protección 5x20 - Pines de expansión…
Main components on the LED-RPi
LED-RPi bill of materials (BOM)
21 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MP2307 | MP2307 | U1 |
| 1 | DCDC_StepDown_LM2596 | DCDC_StepDown_LM2596 | U2 |
| 1 | 2N2222A | SOT-23W | Q1 |
| 1 | FAN_CON | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | RPi_IN | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 2 | GND_CON | PinHeader_1x03_P2.54mm_Vertical | J3, J8 |
| 1 | 12V_CON | PinHeader_1x03_P2.54mm_Vertical | J4 |
| 1 | 5V_CON | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 1 | 3V3_CON | PinHeader_1x03_P2.54mm_Vertical | J6 |
| 1 | Jack-DC | BarrelJack_Horizontal | J7 |
| 1 | 1,5A | Fuseholder_Cylinder-5x20mm_Stelvio-Kontek_PTF78_Horizontal_Open | F1 |
| 1 | Jumper & Switch | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 1 | LED_ON | PinHeader_1x02_P2.54mm_Vertical | JP2 |
| 1 | 1N4007 | D_SOD-123F | D1 |
| 1 | RED | LED_D3.0mm_Horizontal_O1.27mm_Z2.0mm | D2 |
| 1 | YELLOW | LED_D3.0mm_Horizontal_O1.27mm_Z2.0mm | D3 |
| 2 | 1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R3 |
| 1 | 10k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R2 |
| 1 | 220 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R4 |
LED-RPi design files
The KiCad project lives in the AugustoS97/RPi-accessories repository on GitHub; these links point at the commit this page was built from.
LED-RPi: common questions
How big is the LED-RPi PCB?
The LED-RPi measures 58.8 × 44.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LED-RPi?
21 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the LED-RPi design files?
From the AugustoS97/RPi-accessories repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the LED-RPi design in my own project?
Yes, under the terms of its GPL-3.0 license, which AugustoS97 chose for the repository.
