About the Picoloader PCB
Picoloader is an open source RP2040/RP2350 PCB design by Auroxin, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 27.2 × 36 mm, with 34 components from 19 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AP2112K-3.3TRG1. By type, the board carries 15 capacitors, 8 resistors, 3 diodes, 2 ICs, 2 connectors and 1 crystal.
From the project

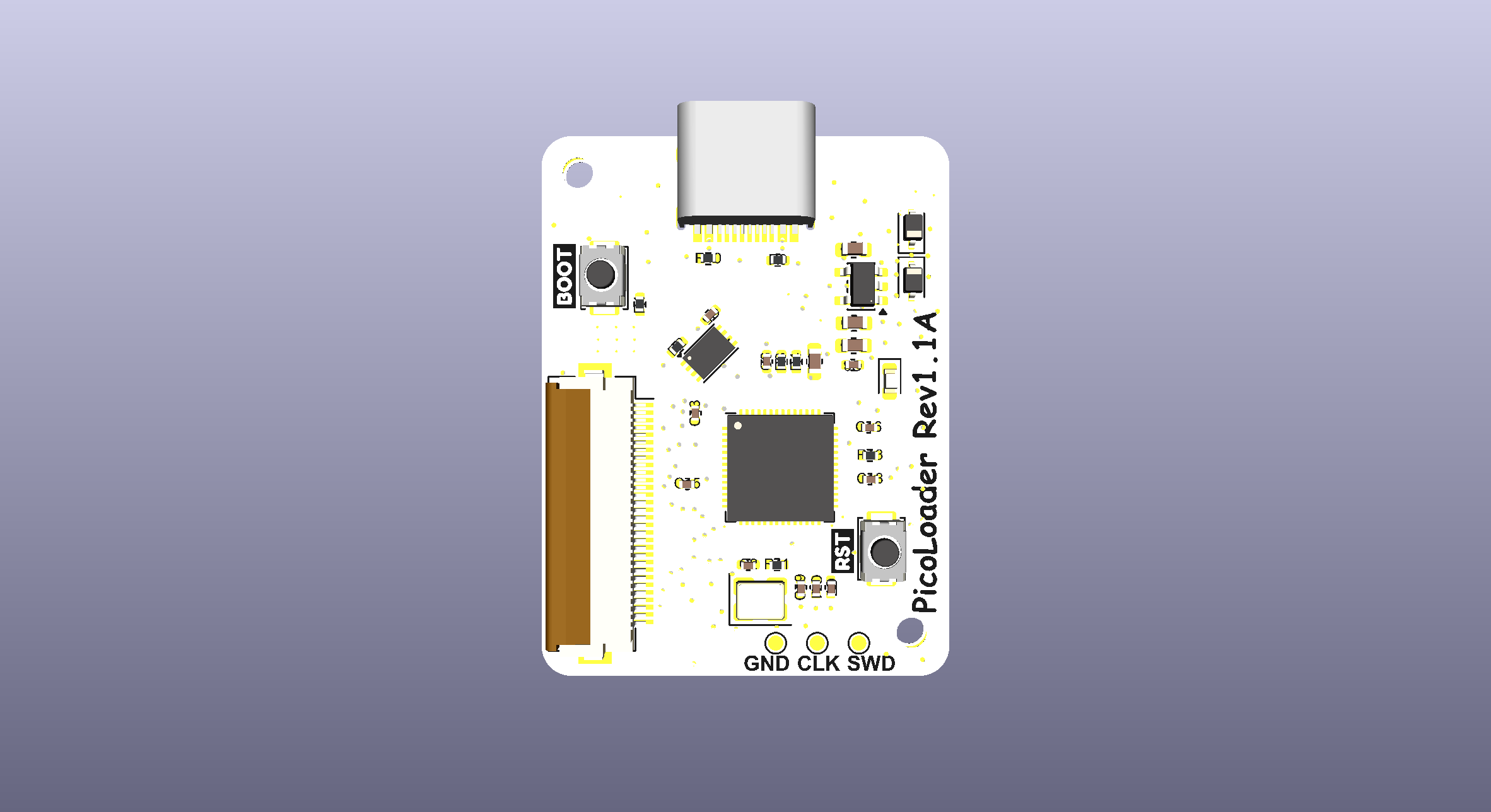

Open-hardware PicoLoader for the Nintendo GameCube: a solderless RP2040 modchip. KiCad 10 sources for the v1.1A (2 MB) and v1.2A (16 MB) boards, the 30-pin flex PCB and the 3D-printed mounting parts. GPL-2.0.
The 2 MB revision, still sold alongside v1.2A.
27.21 × 36.04 mm, 39 footprints SPI flash ZD25WQ16DEIGR (2 MB), USON-8 3×2 mm * footprints migrated to the standard KiCad libraries, silkscreen artwork added
PicoLoader firmware is supported but has to be flashed, and Swiss usually needs a separate setup step. See v1.2A for the 16 MB version that ships preloaded.
Open picoloader.kicadpro` with KiCad 10 or newer.

Main components on the Picoloader
Picoloader bill of materials (BOM)
34 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP2112K-3.3TRG1 | SOT-23-5 | U1 |
| 1 | RP2040 | RP2040-QFN-56 | U3 |
| 1 | 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | Conn_01x30 | Hirose_FH12-30S-0.5SH_1x30-1MP_P0.50mm_Horizontal | J1 |
| 1 | TSA343G00-250J2 | SW_Push_SPST_NO_Alps_SKRK | J2 |
| 1 | ZD25WQ16DEIGR | Winbond_USON-8-1EP_3x2mm_P0.5mm_EP0.2x1.6mm | FLASH1 |
| 1 | TSA343G00-250J2 | SW_Push_SPST_NO_Alps_SKRK | RSW1 |
| 1 | TYPE-C-31-M-12 | HRO-TYPE-C-31-M-12 | USB2 |
| 2 | 1N5819WS | D_SOD-323 | D1, D3 |
| 1 | LED | LED_0603_1608Metric | D2 |
| 2 | 5pf | C_0402_1005Metric | C2, C19 |
| 2 | 1uf | C_0603_1608Metric | C3, C10 |
| 9 | 100nf | C_0402_1005Metric | C5, C6, C7, C8, C11, C13, C15, C16 +1 |
| 2 | C1005X5R1E105K050BC 1uF | C_0603_1608Metric | C14, C17 |
| 2 | 1K | R_0402_1005Metric | R1, R11 |
| 1 | 10K | R_0402_1005Metric | R2 |
| 2 | 27r | R_0402_1005Metric | R3, R4 |
| 2 | 5.1K | R_0402_1005Metric | R9, R10 |
| 1 | 470r | R_0402_1005Metric | R13 |
Picoloader design files
The KiCad project lives in the Auroxin/picoloader-hw repository on GitHub; these links point at the commit this page was built from.
- Layouthw/v1.1A/picoloader.kicad_pcb
- Schematichw/v1.1A/picoloader.kicad_sch
Picoloader: common questions
What microcontroller does the Picoloader use?
The Picoloader is built around the RP2040, from the RP2040/RP2350 family.
How big is the Picoloader PCB?
The Picoloader measures 27.2 × 36 mm, has 2 copper layers and is 1.2 mm thick.
How many components are on the Picoloader?
34 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the Picoloader design files?
From the Auroxin/picoloader-hw repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Picoloader design in my own project?
Yes, under the terms of its GPL-2.0 license, which Auroxin chose for the repository.
Can I test firmware for the Picoloader without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
