ISA POST Card v5

ausandavno·ISA_POST_Card_v5·v5.1/ISA_POST_Card_v5.1.kicad_pcb

ISA POST Card v5 PCB layout, top view — open source board by ausandavno

About the ISA POST Card v5 PCB

ISA POST Card v5 is an open source PCB design by ausandavno, published on GitHub. It is a 2-layer board measuring 108 × 64.1 mm, with 38 components from 16 distinct parts.

Other key parts include the 74ALS273, 74LS47, 74ALS521, 74HCT132 and 74LS74. By type, the board carries 11 resistors, 10 ICs, 9 capacitors, 4 diodes, 2 switches and 2 LEDs.

It belongs with the displays & leds designs in this gallery.

From the project

A plug-in diagnostic card that displays Power On Self Test (POST) codes on an 8-bit ISA data bus. Tested for use with Micro8088 and Xi8088 systems. Can be configured to listen on any address in the lower ten bits of address space.

Constructed board (ignore version number):

Recommend soldering components in order of height, lowest to highest: Resistors (Rx), IC sockets (if used), Resistor Networks (RNx), Capacitors (Cx), Discrete LEDs (Dx), Seven Segment LEDs (LEDx), Switches (SWx).

Recommend populating turned-pin strip headers for U2, U3, U9 and U10. Populate U2, U3 if intending to use seven-segment display driver 74LS47. Populate U9, U10 if intending to use ATF16V8B-15PU to display hexadecimal values.

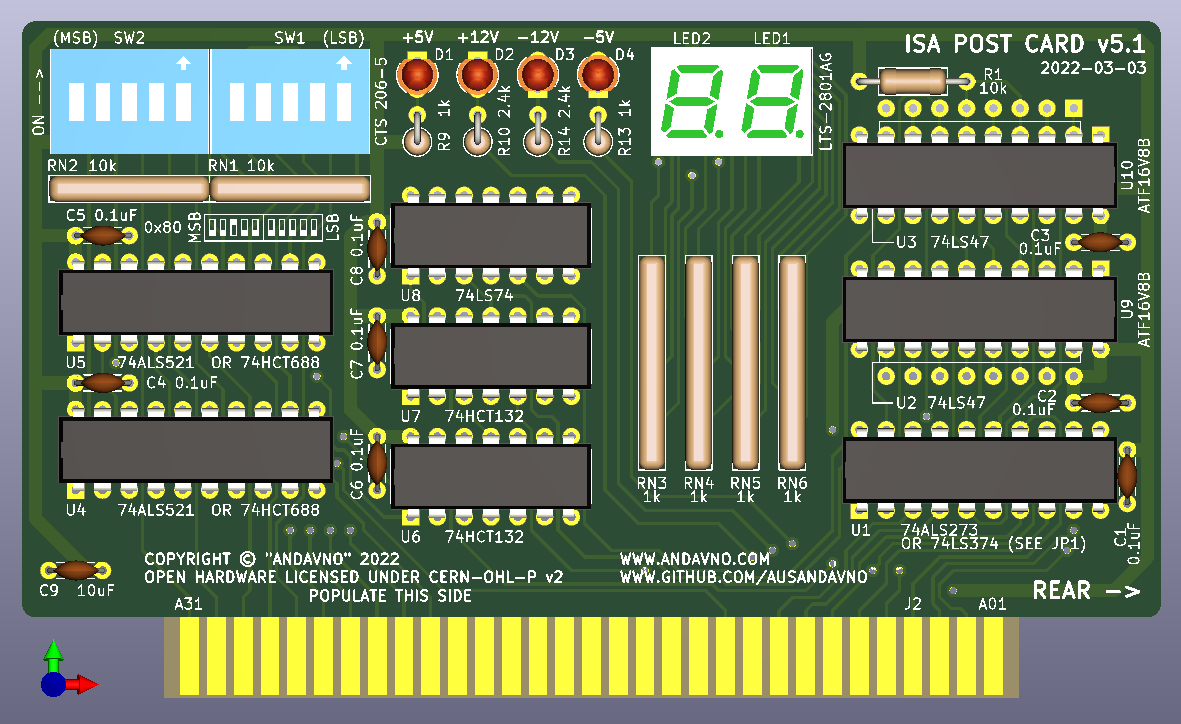

ISA POST Card v5, from the project README
From the project README

Main components on the ISA POST Card v5

74ALS27374LS4774ALS52174HCT13274LS74ATF16V8B

ISA POST Card v5 bill of materials (BOM)

38 components, 16 distinct parts.

QtyPartRefs
1
74ALS273
U1
2
74LS47
U2, U3
2
74ALS521
U4, U5
2
74HCT132
U6, U7
1
74LS74
U8
2
ATF16V8B
U9, U10
2
SW_DIP_x05
SW1, SW2
2
LTS-2801AG
LED1, LED2
4
LED
D1, D2, D3, D4
8
0.1uF
C1, C2, C3, C4, C5, C6, C7, C8
1
10uF
C9
1
10k
R1
2
1k
R9, R13
2
2.4k
R10, R14
2
10k
RN1, RN2
4
1k
RN3, RN4, RN5, RN6

ISA POST Card v5 design files

The KiCad project lives in the ausandavno/ISA_POST_Card_v5 repository on GitHub; these links point at the commit this page was built from.

ISA POST Card v5: common questions

How big is the ISA POST Card v5 PCB?

The ISA POST Card v5 measures 108 × 64.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ISA POST Card v5?

38 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the ISA POST Card v5 design files?

From the ausandavno/ISA_POST_Card_v5 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ISA POST Card v5 design in my own project?

The repository has no license, so all rights stay with ausandavno. Use it as a reference, and ask the author before reusing the design.
