Stm devboard

AYUSH-pro-grammer·stm-devboard·stm-devboard/stm-devboard.kicad_pcb

Stm devboard PCB layout, top view — open source STM32 board by AYUSH-pro-grammer

About the Stm devboard PCB

Stm devboard is an open source STM32 PCB design by AYUSH-pro-grammer, published on GitHub. It is a 4-layer board measuring 65 × 75 mm, with 62 components from 24 distinct parts.

Its main chip is the STM32H573RITx, from the STM32 family. Other key parts include the USBLC6-2P6 and LD1117S12TR_SOT223. By type, the board carries 21 capacitors, 15 resistors, 10 connectors, 6 diodes, 3 ICs and 3 transistors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A custom development board based on the STM32H573RIT6 microcontroller. Created in KiCad as a platform for learning about microcontroller hardware design, PCB layout, power supply, and embedded systems.

A custom development board based on the STM32H573RIT6 microcontroller. Created in KiCad as a platform for learning about microcontroller hardware design, PCB layout, power supply, and embedded systems.

Both the schematic and the PCB design were developed using KiCad.

- kicad/ — Schematic and PCB design files - images/ — Images of PCB rendering, schematic and routing - gerber-files/ — PCB manufacturing files - bom.csv — Bill of materials with links to parts - grb.zip — Gerber archive, if present

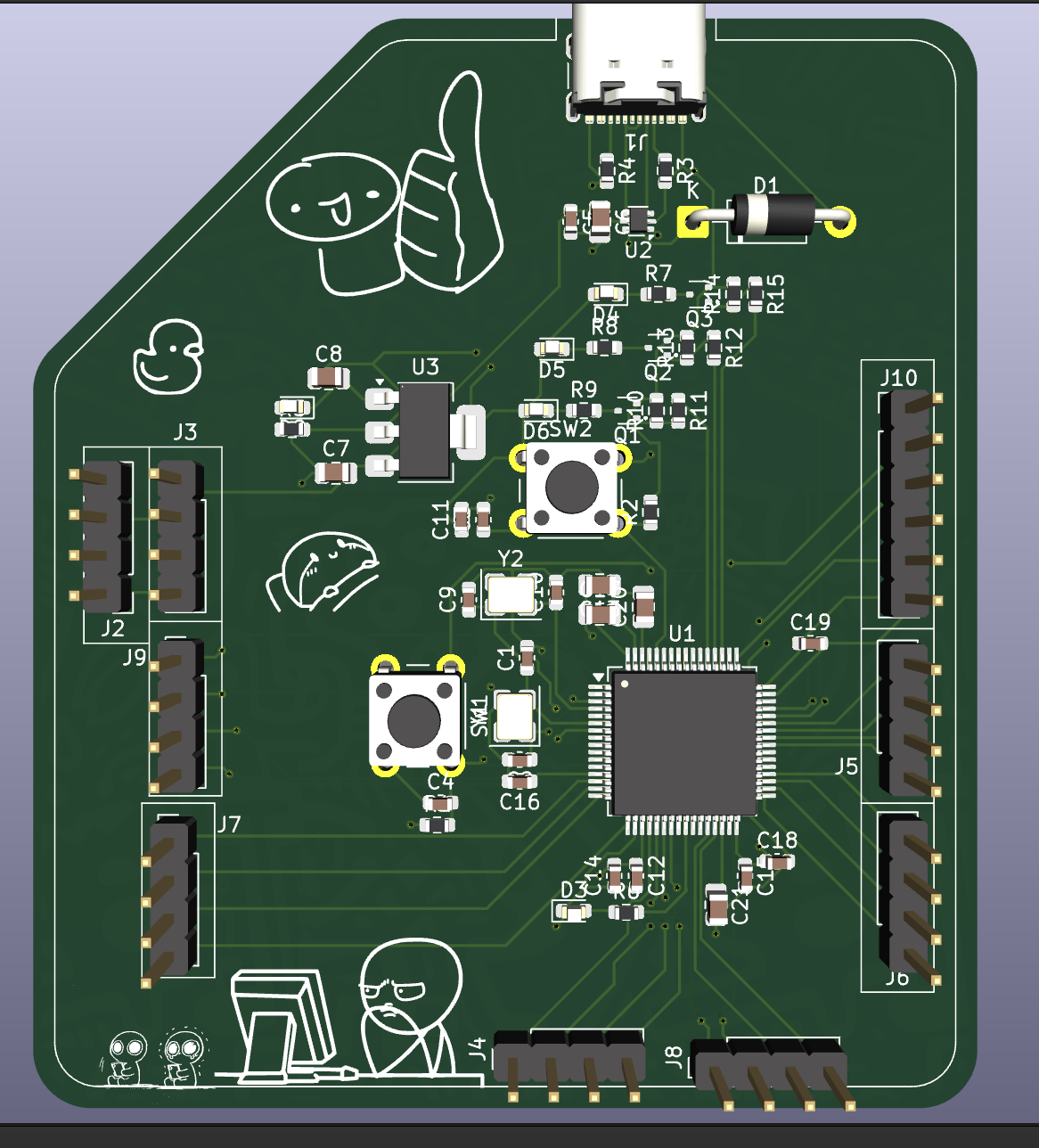

Stm devboard, from the project README
From the project README

Main components on the Stm devboard

STM32H573RITxUSBLC6-2P6LD1117S12TR_SOT223

Stm devboard bill of materials (BOM)

62 components, 24 distinct parts.

QtyPartRefs
1
STM32H573RITx
U1
1
USBLC6-2P6
U2
1
LD1117S12TR_SOT223
U3
3
DMG1012T
Q1, Q2, Q3
2
Crystal_GND3
Y1, Y2
1
USB_C_Receptacle_USB2.0_16P
J1
8
Conn_01x04
J2, J3, J4, J5, J6, J7, J8, J9
1
Conn_01x06
J10
2
SW_Push
SW1, SW2
1
1N5819
D1
5
LED
D2, D3, D4, D5, D6
2
30pF
C1, C2
10
100nF
C3, C4, C5, C11, C12, C14, C15, C16 +2
3
10uF
C6, C7, C8
2
10pF
C9, C10
1
4u7F
C13
1
1uF
C17
2
2u2F
C20, C21
7
10k
R1, R2, R5, R6, R10, R13, R14
2
5k1
R3, R4
Show 4 more
QtyPartRefs
1
1k4
R7
1
1k1
R8
1
160R
R9
3
221R
R11, R12, R15

Stm devboard design files

The KiCad project lives in the AYUSH-pro-grammer/stm-devboard repository on GitHub; these links point at the commit this page was built from.

Stm devboard: common questions

What microcontroller does the Stm devboard use?

The Stm devboard is built around the STM32H573RITx, from the STM32 family.

How big is the Stm devboard PCB?

The Stm devboard measures 65 × 75 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Stm devboard?

62 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stm devboard design files?

From the AYUSH-pro-grammer/stm-devboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Stm devboard design in my own project?

The repository has no license, so all rights stay with AYUSH-pro-grammer. Use it as a reference, and ask the author before reusing the design.
